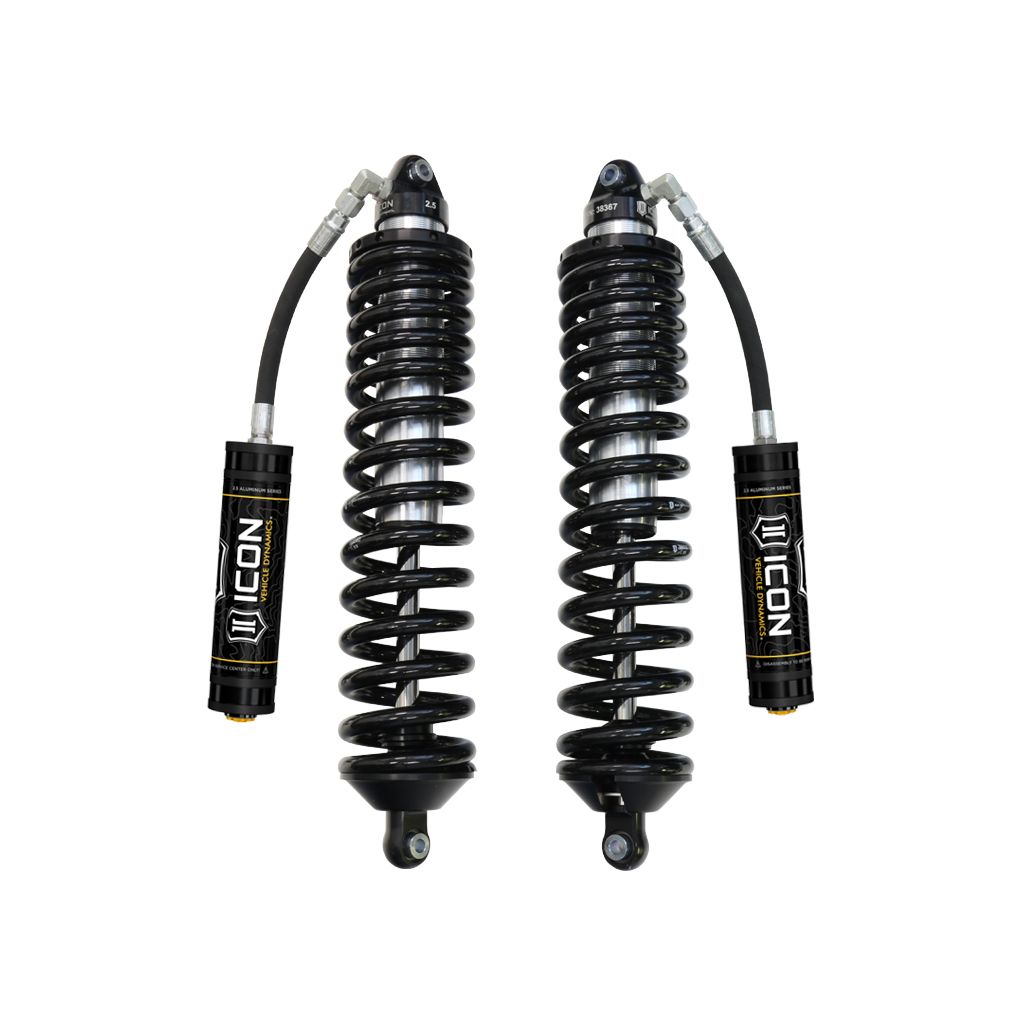

ICON VEHICLE DYNAMICS | 08-16 FSD 4WD 7-9 Inch 2.5 VS RR Coilover Kit Icon Vehicle Dynamics | 61700

These coil-over shocks are the ultimate suspension modification for your Super Duty. These are not race style shocks that were modified to fit they were designed from the ground up for the 2008 - 2016 Super Duty.

They are adjustable in ride height from 7 Inch to 9 inch of lift. They have any external Reservoir for excellent heat dissipation, a Dual Rate Spring for a great ride quality on or off-road, and are completely Rebuilable.

Details

• Material: Aluminum, Steel
• Active Or Passive Suspension: Passive
• Adjustable Compression: No
• Adjustable Damping: No
• Adjustable Rebound: No
• Adjustable Ride Height: Yes
• Assembled: Yes
• Body Diameter: 2.5 Inch
• Coil Over Springs Included: Yes
• Compressed Length: 16.49
• Cylinder Color: Silver
• Cylinder Finish: Cadmium Plated
• Cylinder Material: Steel
• Damping Type: Oil
• Dust Shield Included: No
• Extended Length: 25.98
• Front Spring Rate: 390, 550
• Gas Charged: Yes
• Grade Type: Performance
• Includes Bump Stop: Yes
• Internal Construction Type: Single Tube
• Lower Mount Type: Eyelet
• Maximum Lift: 9.0 Inch
• Maximum Ride Height Raising Distance: 9.0
• Minimum Lift: 7.0 Inch
• Oem Wheels & Tires Fitment: Yes
• Recommended Aftermarket Tires: 35 Inch X 12.50 Inch (Larger Tires May Fit But Fender Trimming And Modifications Will Be Required)
• Recommended Aftermarket Wheels: Icon Alloys - 18x9 Inch W/ 5.25 Inch Backspace / 6mm Offset, Icon Alloys - 20x9 Inch W/ 5.25 Inch Backspace / 6mm Offset, Icon Alloys - 17x8.5 Inch W/ 5.00 Inch Backspace / 6mm Offset
• Remote Reservoir: Yes
• Reservoir Style: Remote
• Self Leveling: No
• Service Parts: 252003 - Seal Install Tool 2.5/3.0, 252002 - Universal Spanner Wrench (2.0/2.5/3.0), 252001 - 2.5 Fixed Spanner Wrench, 252011 - 2.5 Piggyback/Remote Resi/Bypass Rebuild Kit, 611019 - Coilover Hardware Kit Pair, 254100G - 1 Gallon Icon Performance Shock Oil, 191015 - 10 Inch Finned Resi Upgrade Kit, 257340 - 7/8 Shaft 14.25 Oal, 10.00 Travel
• Shaft Diameter: 0.875
• Shock Absorber Body End Measuring Point: Center Of Eylet
• Shock Absorber Rod End Measuring Point: Center Of Eylet
• Spring Color: Black
• Spring Material: Steel
• Spring Rate Type: Progressive Dual Rate
• Travel Length: 9.49
• Upper Mount Type: Eyelet
• Valving Type: Digressive
• Add On Part: 252012 - -4 To -10 Hose Shield Kit, 198001 - Billet Spanner Wrench Kit, 198000 - 2 Pin Coilover Spanner Wrench Kit
