ICON VEHICLE DYNAMICS | 08-10 Ford F250/F350 2.5-3 Inch Lift Stage 2 Coilover System W/ Leaf Springs Icon Vehicle Dynamics | K63182

The ICON 2.5-3 Inch coilover conversion suspension system is a great way to lift your 4WD 2008-2010 Ford F-250/F-350 Super Duty while improving ride quality and performance. This upgraded Stage 2 system is great for towing, rough construction site terrains, and country dirt roads all while keeping a smooth highway feel.

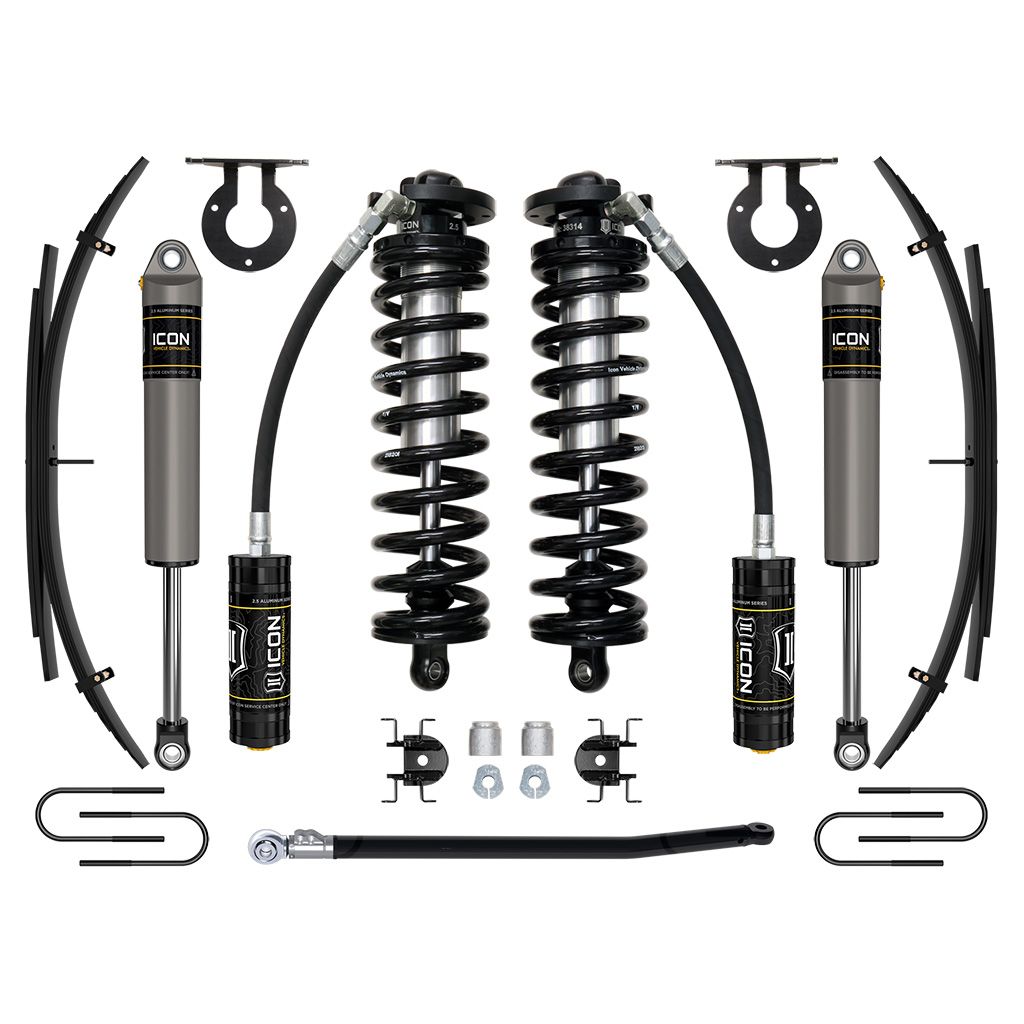

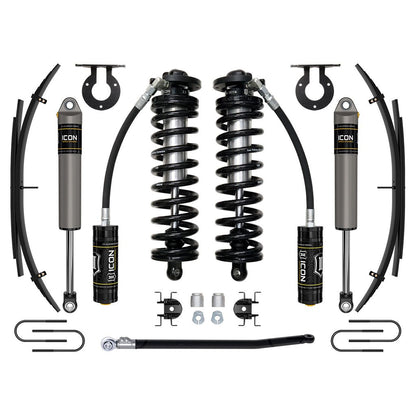

ICON's Stage 2 System is comprised of 2.5 Series remote reservoir coilovers that are adjustable from 2.5-3 Inch of front lift over stock, adjustable front track bar with massive FK rod end, alignment cams for adding caster, rear leaf spring expansion packs with blocks and U-bolts for a more compliant ride and reduced axle wrap, and ICON 2.5 Aluminum Series internal reservoir rear shocks. With the endless hours ICON has spent testing and tuning our suspension components and shocks as a complete package, you can rest assured you have the best suspension solution on the market.

Features and Benefits:

• Ride height adjustable 2.5 Series remote reservoir coilovers provide 2.5-3 Inch of front lift over stock
• Vehicle specific tuned internal reservoir 2.5 Aluminum Series rear shocks
• On-vehicle adjustable track bar for optimum front axle centering and minimal deflection
• Application specific alignment Cams ensure proper caster alignment
• Leaf spring expansion packs and blocks for more compliant ride quality and reduced axle wrap
• Improved ride quality and performance compared to stock with no change in towing capacity
• Less body-roll than stock
• Lifetime guarantee that springs won't sag or break
• No drive shaft modifications required

Details

• Bushings Included: Yes
• Coils Quantity Front: 2.0
• Front Spring Rate Type: Progressive Dual Rate
• Grade Type: Performance
• Leaf Spring Leaf Quantity: 7.0
• Maximum Lift Front: 3.0 Inch
• Maximum Lift Rear: 2.0 Inch
• Minimum Lift Front: 2.5 Inch
• Mounting Hardware Included: Yes
• Oem Wheels & Tires Fitment: Yes
• Recommended Aftermarket Tires: 35 Inch X 12.50 Inch (Larger Tires May Fit But Fender Trimming And Modifications Will Be Required.)
• Recommended Aftermarket Wheels: Icon Alloys - 20x9 Inch W/ 5.25 Inch Backspace / 6mm Offset, Icon Alloys - 17x8.5 Inch W/ 5 Inch Backspace / 6mm Offset, Icon Alloys - 18x9 Inch W/ 5.25 Inch Backspace / 6mm Offset
• Shocks Included: Yes
• Spring Color: Black
• Spring Material: Steel
• Add On Part: 64039 - 08-25 FSD Track Bar Bump Steer Bracket Kit, 198000 - 2 Pin Coilover Spanner Wrench Kit, 198001 - Billet Spanner Wrench Kit
