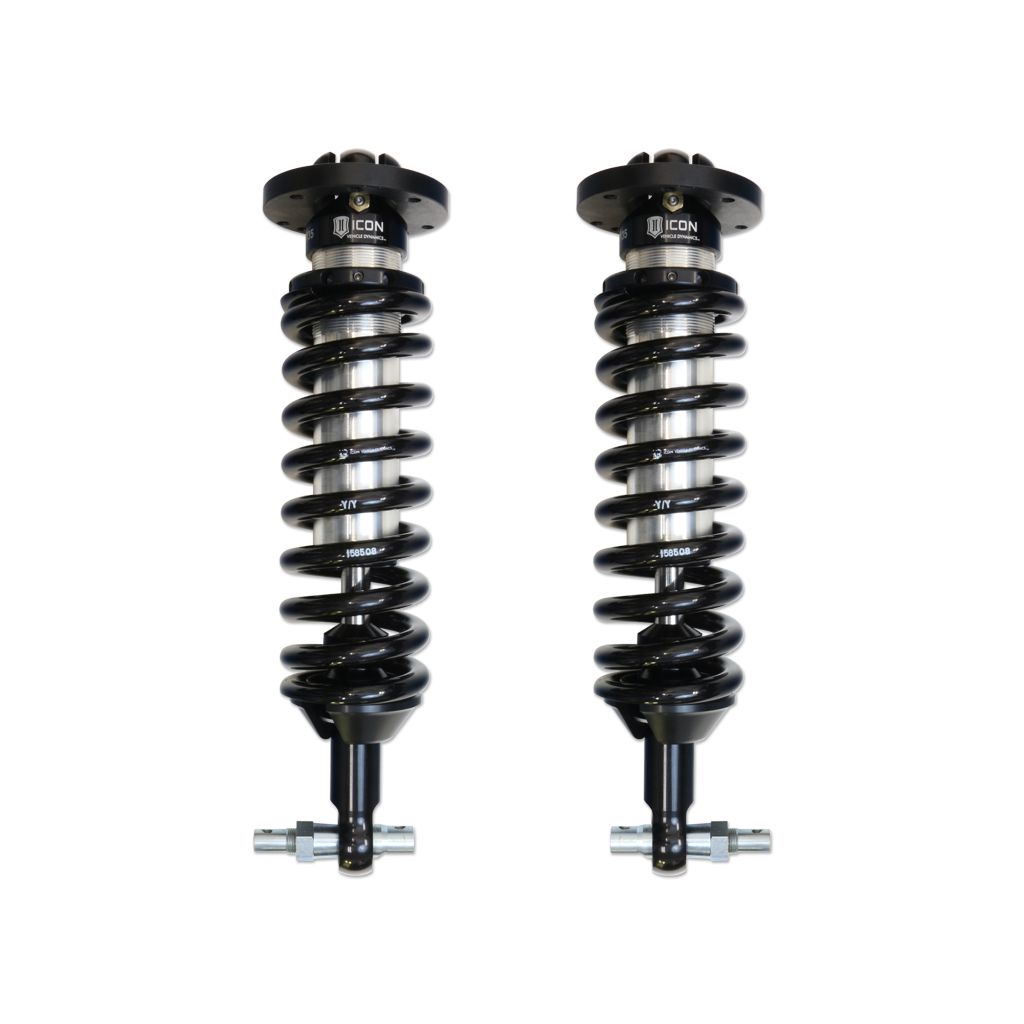

ICON VEHICLE DYNAMICS | 07-18 GM 1500 1-3 Inch 2.5 VS IR Coilover Kit Icon Vehicle Dynamics | 71505

These coil-overs are valved specifically for the new body style (GMT 900 Platform) Chevrolet and GMC half ton, 2WD and 4WD applications. They not only drastically improve the off road characteristics of the vehicle, but increase the on road handling and performance as well.

These shocks add an additional inch of wheel travel when used in conjunction with an ICON Vehicle Dynamics Arm (PT# 78600). They also offer an additional amount of lift height compared to our standard travel coil-over shocks.

Features and Benefits:

• Less body-roll than stock truck
• 2.5 Inch Diameter shock Body
• Lifetime guarantee on coil-springs
• Clears 33 Inch Tall Tires
• Internal Nitrogen Reservoir for Compact Design and Optimum Performance

Details

• Material: Aluminum, Steel
• Active Or Passive Suspension: Passive
• Adjustable Compression: No
• Adjustable Damping: No
• Adjustable Rebound: No
• Adjustable Ride Height: Yes
• Assembled: Yes
• Body Diameter: 2.5 Inch
• Coil Over Springs Included: Yes
• Compressed Length: 14.97
• Cylinder Color: Silver
• Cylinder Finish: Cadmium Plated
• Cylinder Material: Steel
• Damping Type: Oil
• Dust Shield Included: No
• Extended Length: 19.83
• Front Spring Rate: 700 Inch
• Gas Charged: Yes
• Grade Type: Performance
• Includes Bump Stop: Yes
• Internal Construction Type: Single Tube
• Lower Mount Type: Bar Pin
• Maximum Lift: 3.0 Inch
• Maximum Ride Height Raising Distance: 3.0
• Minimum Lift: 1.0 Inch
• Oem Wheels & Tires Fitment: Yes
• Recommended Aftermarket Tires: 33 Inch X 11.50 Inch (Larger Tires May Fit But Fender Trimming And Modifications Will Be Required.)
• Recommended Aftermarket Wheels: Icon Alloys - 18x9 Inch W/ 5 Inch Backspace / 0mm Offset, Icon Alloys - 17x8.5 Inch W/ 4.75 Inch Backspace / 0mm Offset, Icon Alloys - 20x9 Inch W/ 5 Inch Backspace / 0mm Offset
• Remote Reservoir: No
• Reservoir Style: Internal
• Self Leveling: No
• Service Parts: 252001 - 2.5 Fixed Spanner Wrench, 252010 - 2.5 Ifp Rebuild Kit, 257306 - 7/8 Shaft 9.65 Oal, 5.40 Travel, 252002 - Universal Spanner Wrench (2.0/2.5/3.0), 254100G - 1 Gallon Icon Performance Shock Oil, 611019 - Coilover Hardware Kit Pair, 252004 - Economy Needle Charging Tool, 252003 - Seal Install Tool 2.5/3.0
• Shaft Diameter: 0.875
• Shock Absorber Body End Measuring Point: Top Of Upper Mount Plate
• Shock Absorber Rod End Measuring Point: Flat On Bar Pin
• Spring Color: Black
• Spring Material: Steel
• Spring Rate Type: Linear
• Travel Length: 4.87
• Upper Mount Type: Mounting Plate
• Valving Type: Digressive
• Add On Part: 191003 - Icon Short 2.5 Coil Wrap W/Logo Pair (11.25-12.25), 198001 - Billet Spanner Wrench Kit, 198000 - 2 Pin Coilover Spanner Wrench Kit
