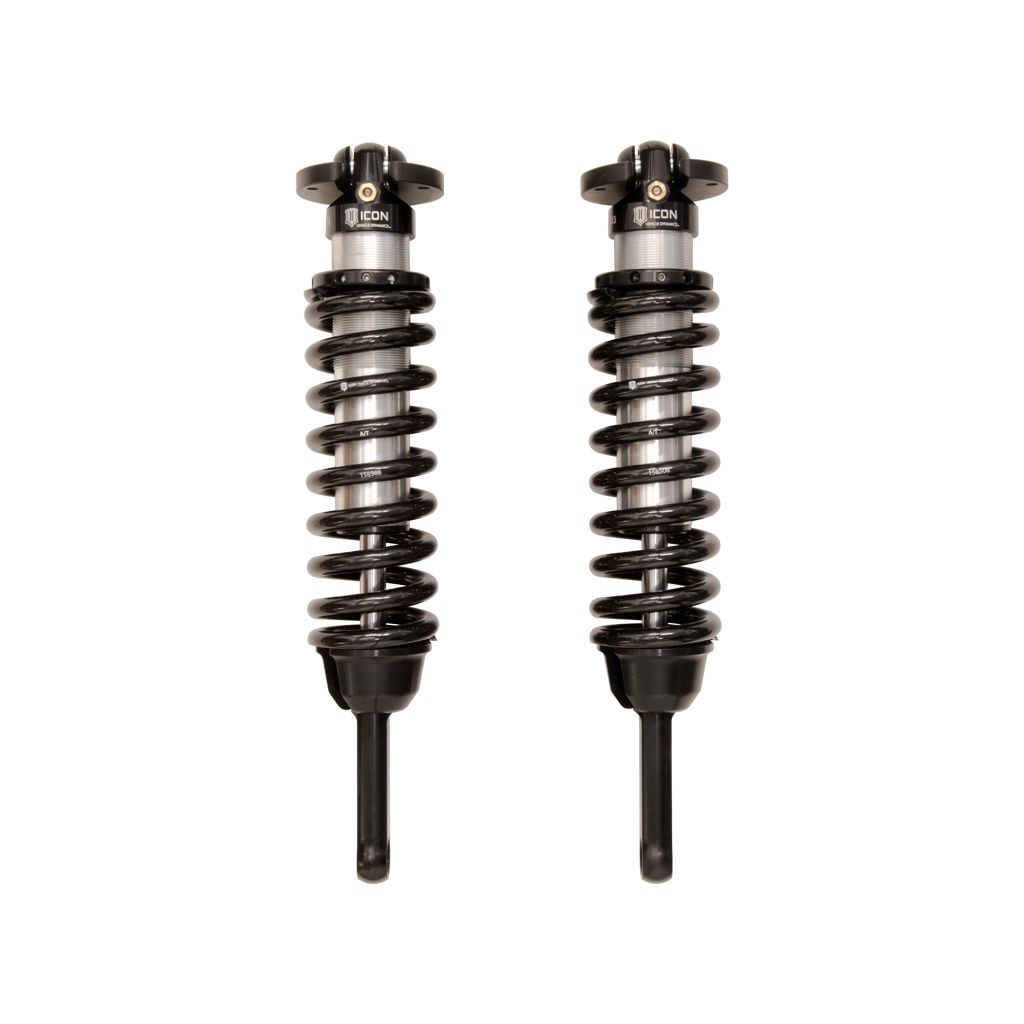

ICON VEHICLE DYNAMICS | 07-09 FJ Cruiser03-09 4Runner 03-09 GX 2.5 VS IR Coilover Kit-700 Icon Vehicle Dynamics | 58640-700

ICON's Vehicle Specific (V.S.) 2.5 Series coilover shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune.

Upgraded coil springs are included to better support added weight from accessories such as front bumpers and winches. Like all ICON shock absorbers, V.S. 2.5 Series shocks are 100 Percent rebuildable and 100 Percent revalveable.

Features and Benefits:

• Adjustable coilovers yield 0-3.5 Inch of front lift height
• Increased wheel travel and vehicle specific valving provides unrivaled ride quality across a wide range of on and off-road use
• Superior low speed control reduces body roll and increases on-road stability
• High quality ICON-engineered coil springs with higher spring rate included to better support added weight to front end
• Corrosion resistant CAD plated shock body with 7/8 Inch shaft
• FK Rod End bearings provide extended longevity and minimal deflection
• Fully serviceable design allows for revalves, rebuilds, and an immeasurable service life
• Bolt-in design makes for an easy install into OEM shock location

Details

• Material: Aluminum
• Active Or Passive Suspension: Passive
• Adjustable Compression: No
• Adjustable Damping: No
• Adjustable Rebound: No
• Adjustable Ride Height: Yes
• Assembled: Yes
• Body Diameter: 2.5 Inch
• Coil Over Springs Included: Yes
• Compressed Length: 17.42
• Cylinder Color: Silver
• Cylinder Finish: Cadmium Plated
• Cylinder Material: Steel
• Damping Type: Oil
• Dust Shield Included: No
• Extended Length: 22.17
• Front Spring Rate: 700 Inch
• Gas Charged: Yes
• Grade Type: Performance
• Includes Bump Stop: No
• Internal Construction Type: Single Tube
• Lower Mount Type: Eyelet
• Maximum Lift: 3.5 Inch
• Maximum Ride Height Raising Distance: 3.5
• Minimum Lift: 0.0 Inch
• Oem Wheels & Tires Fitment: Yes
• Recommended Aftermarket Tires: 33 Inch X 11.50 Inch (Larger Tires May Fit But Fender Trimming And Modifications Will Be Required)
• Recommended Aftermarket Wheels: Icon Alloys - 20x9 Inch W/ 5 Inch Backspace / 0mm Offset, Icon Alloys - 17x8.5 Inch W/ 4.75 Inch Backspace / 0mm Offset, Icon Alloys - 18x9 Inch W/ 5 Inch Backspace / 0mm Offset
• Remote Reservoir: No
• Reservoir Style: Internal
• Self Leveling: No
• Service Parts: 252010 - 2.5 Ifp Rebuild Kit, 252004 - Economy Needle Charging Tool, 252003 - Seal Install Tool 2.5/3.0, 611019 - Coilover Hardware Kit Pair, 252002 - Universal Spanner Wrench (2.0/2.5/3.0), 252001 - 2.5 Fixed Spanner Wrench, 254100G - 1 Gallon Icon Performance Shock Oil, 611067 - Tacoma/FJ Cruiser 4Rnr Lower Co Brg/Spcr Kit, 257301 - 7/8 Shaft 10.25 Oal, 6.00 Travel
• Shaft Diameter: 0.875
• Shock Absorber Body End Measuring Point: Top Of Upper Mount Plate
• Shock Absorber Rod End Measuring Point: Center Of Eylet
• Spring Color: Black
• Spring Material: Steel
• Spring Rate Type: Linear
• Travel Length: 4.76
• Upper Mount Type: Mounting Plate
• Valving Type: Digressive
• Add On Part: 191003 - Icon Short 2.5 Coil Wrap W/Logo Pair (11.25-12.25), 198001 - Billet Spanner Wrench Kit, 198000 - 2 Pin Coilover Spanner Wrench Kit
