ICON VEHICLE DYNAMICS | 05-07 Ford F250/F350 4.5 Inch Stage 4 Suspension System Icon Vehicle Dynamics | K64503

This 4.5 Inch System for the 2005-2007 Super Duty is one the best riding suspension systems ICON has ever developed. This system has been engineered using the highest quality materials and components.

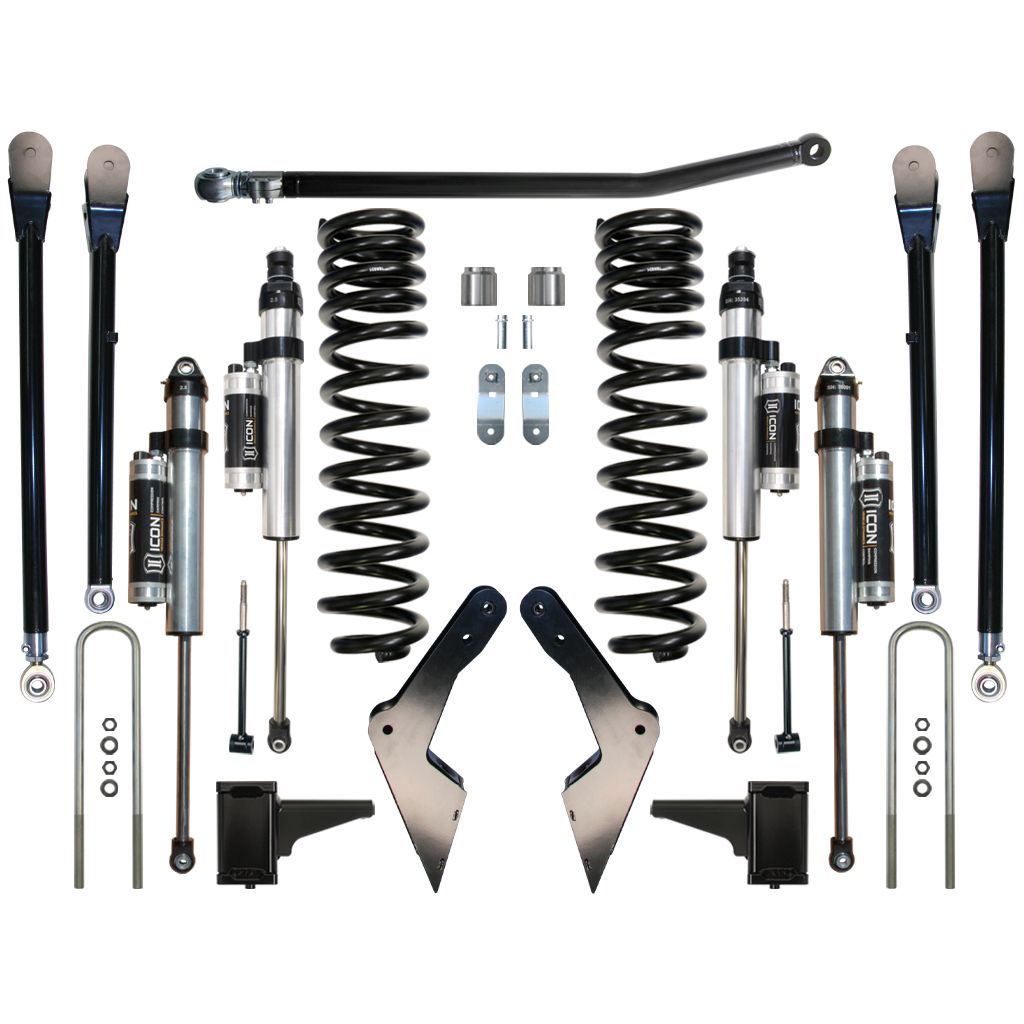

The Dual-Rate front coil springs combined with our ICON 2.5 Aluminum Series shocks give these trucks the performance they so desperately need. This system comes complete with front coils, shocks, radius arm drop down brackets, rear blocks and u-bolts and our patented adjustable track bar giving the front end of these trucks perfect track alignment.

The Stage 4 system also includes our 4-Link kit for the ultimate in shock technology and suspension technology.

Features and Benefits:

• 50 Percent increase in wheel travel
• Less body roll than stock truck
• 4.5 Inch more travel from ride height to front bump stops
• State-of-the-art dual-rate coil spring
• Lifetime guarantee that coil springs won't sag
• Clears 35 Inch Tall Tires & 37 Inch Tall Tires w/ Minor Trimming
• No change in towing capacity
• No drive shaft modifications needed
• Corrosion resistant anodized aluminum shock bodies with 7/8 Inch shafts (2.5 Aluminum Series shocks)
• 100 Percent bolt-on system - no drilling,cutting or welding necessary for install

Details

• Bushings Included: Yes
• Coils Quantity Front: 2.0
• Dual Rate Coil Springs: Yes
• Grade Type: Performance
• Maximum Lift: 4.5 Inch
• Mounting Hardware Included: Yes
• Oem Wheels & Tires Fitment: Yes
• Recommended Aftermarket Tires: 35 Inch X 12.50 Inch (Larger Tires May Fit But Fender Trimming And Modifications Will Be Required.)
• Recommended Aftermarket Wheels: Icon Alloys - 18x9 Inch W/ 5.25 Inch Backspace / 6mm Offset, Icon Alloys - 20x9 Inch W/ 5.25 Inch Backspace / 6mm Offset, Icon Alloys - 17x8.5 Inch W/ 5 Inch Backspace / 6mm Offset
• Shocks Included: Yes
• Spring Color: Black
• Spring Material: Steel
• Add On Part: 65000 - 05-22 FSD Dual Stabilizer Kit, 191014 - .25 Inch Collar Spanner Pin Wrench
