ICON VEHICLE DYNAMICS | 03-12 RAM 2500/3500 4WD 2.5 Inch Stage 5 Suspension System Icon Vehicle Dynamics | K212505T

2003-2012 Ram 2500/3500 2.5 Inch Stage 5 is our ultimate performance kit, with user adjustability, that offers extraordinary diversity across any terrain. This system not only levels out the stance, it increases ride quality and performance substantially both on and off-road.

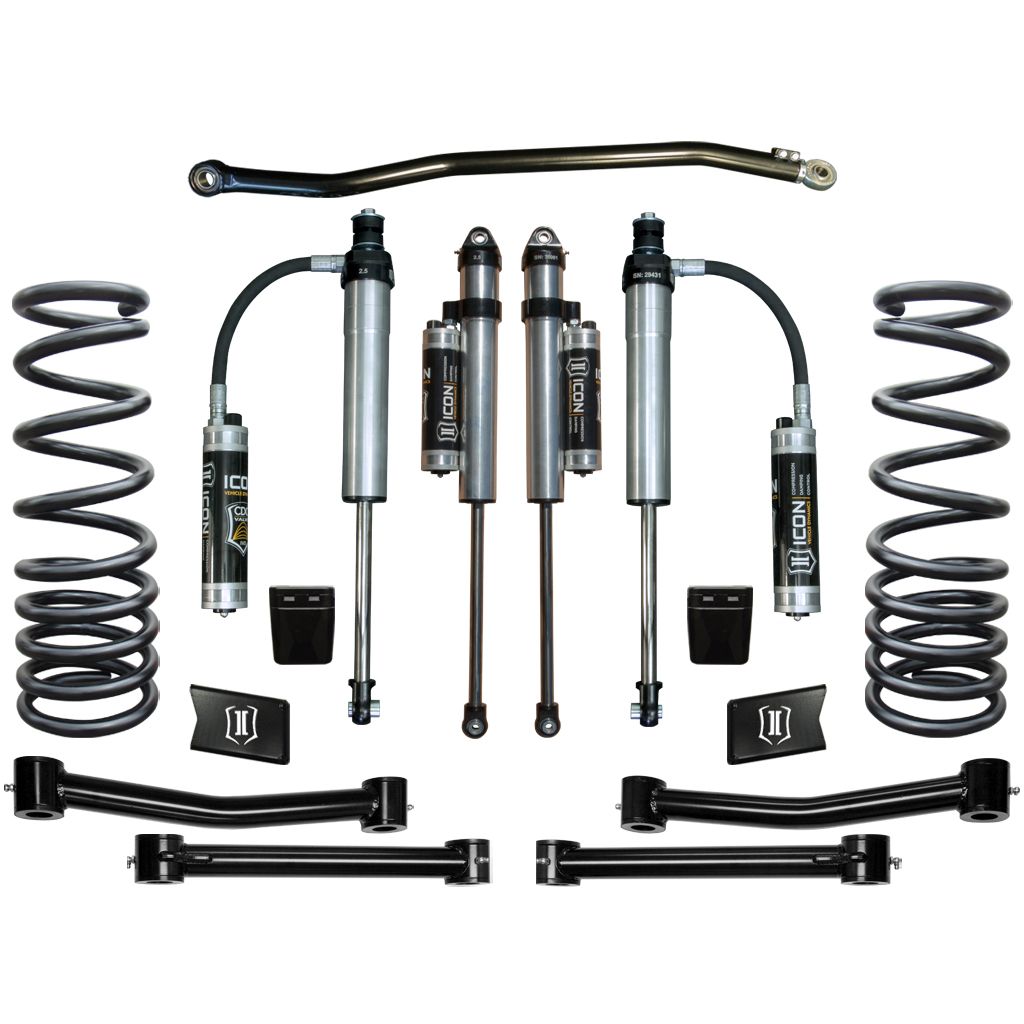

The Stage 5 System is comprised of dual rate coil springs, polyurethane bump stops, sway bar drop brackets, 2.5 Aluminum Series shocks w/ CDCV, bearing style adjustable track bar, and front steel upper and lower links. ICON 2.5 Aluminum Series shocks with CDCV extend the performance of the kit by increasing the duration of consistent damping regardless of situation, and give you the ability to tune the compression damping with the turn of an external knob.

These shocks include FK bearings, billet top cap and rod ends, 7/8 Inch shafts for strength. The adjustable track bar with bearings not only improves rigidity over flexible factory joints, but offers adjustability to center the front axle under the truck.

ICON tubular upper and lower links offer eye catching style, polyurethane bushings to decrease the bind found in the factory link bushings, and improved alignment range. ICON has spent endless hours testing and tuning our suspension components and shocks together, so you can rest assured you have the best suspension solution on the market.

Features and Benefits:

• ICON engineered dual rate coil springs with match tuned 2.5 Inch V.S. Series shocks with CDCV
• 2.5 Aluminum Series front and rear shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
• CDCV (Compression Damping Control Valve) allows external adjustability of compression valving
• Adjustable track bar with PTFE lined FK bearings
• Heavy-duty steel upper and lower link bars
• Increased wheel travel and ride quality over stock with no change in towing capacity
• Level stance front to rear
• Less body roll than stock
• No drive shaft modifications needed

Details

• Bushings Included: Yes
• Coil Spring End 1 Type: Open
• Coil Spring End 2 Type: Open
• Coils Quantity Front: 2.0
• Dual Rate Coil Springs: Yes
• Grade Type: Performance
• Maximum Lift: 2.5 Inch
• Mounting Hardware Included: Yes
• Oem Wheels & Tires Fitment: Yes
• Recommended Aftermarket Tires: 33 Inch X 11.50 Inch (Larger Tires May Fit But Fender Trimming And Modifications Will Be Required)
• Recommended Aftermarket Wheels: Icon Alloys - 20x9 Inch W/ 5.50 Inch Bs / 12mm Offset, Icon Alloys - 17x8.5 Inch W/ 5.25 Inch Bs / 13mm Offset, Icon Alloys - 18x9 Inch W/ 5.50 Inch Bs / 12mm Offset
• Shocks Included: Yes
• Spring Color: Black
• Spring Material: Steel
• Add On Part: 252012 - -4 To -10 Hose Shield Kit, 191014 - .25 Inch Collar Spanner Pin Wrench
