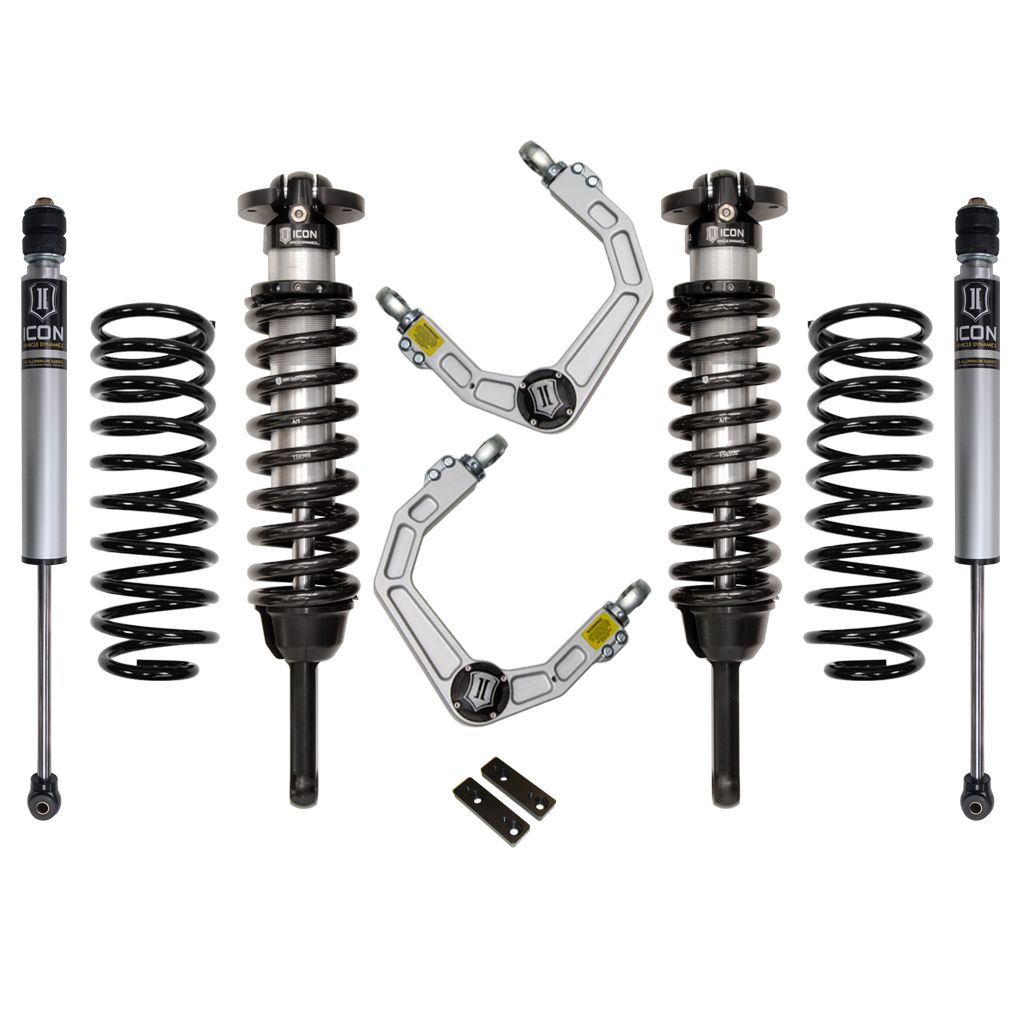

ICON VEHICLE DYNAMICS | 03-09 4Runner FJ Cruiser 0-3.5 Inch Stage 2 Suspension System W Billet UCA Icon Vehicle Dynamics | K53052

This ICON Stage 2 suspension system for the 2003-2009 Toyota 4Runner/2007-2009 FJ Cruiser uses the same components as the Stage 1 system with a few simple changes and additions. The 2.5 Series coilover shocks used in this system are the Extended Travel version, offering increased wheel travel that will enhance your on and off-road performance even more so than the standard travel units.

Since these shocks do provide more suspension travel, they require the use of an ICON upper control arm.

Features and Benefits:

• This system features upper control arms with ICON's patented Delta Joint. The Delta Joint is a heavy-duty high angle ball joint that combines the durability of a ball joint with the performance characteristics of a traditional uniball. While the industry standard uniball does a great job of allowing the control arms of a vehicle to articulate with little bind, they do have an inherent weakness that leaves more to be desired when used in a daily driven application - exposure to the elements. The Delta Joint features a zinc plated housing providing the first layer of corrosion resistance, while a tough grease seal keeps potentially harmful elements out of the inner workings of the joint. Metal on metal construction and a greaseable design increase the longevity of the Delta Joint while at the same time allowing for noise-free operation. What makes the Delta Joint unique is that it brings the best of both worlds to ICON upper control arms with features that make it more robust than a uniball, and at the same time capable of greater angularity than a typical ball joint.
• Increased wheel travel and ride quality over stock
• Vehicle specific tuned front and rear shocks for superior shock damping and control
• Adjustable coilovers provide 0-3.5 Inch of front lift height
• Extended Travel coilovers matched with ICON UCA provides increased front droop travel
• 6061 aircraft grade aluminum CNC machined components
• Corrosion resistant CAD plated coilover shock body with 7/8 Inch shaft
• FK Rod End bearings for extended longevity and minimal deflection
• 2.0 Aluminum Series internal reservoir rear shocks with 5/8 Inch shafts
• Bolt-on system means no cutting or welding necessary for install

Details

• Bushings Included: Yes
• Coils Quantity Front: 2.0
• Coils Quantity Rear: 2.0
• Grade Type: Performance
• Maximum Lift: 3.5 Inch
• Mounting Hardware Included: Yes
• Oem Wheels & Tires Fitment: Yes
• Recommended Aftermarket Tires: 33 Inch X 11.50 Inch (Larger Tires May Fit But Fender Trimming And Modifications Will Be Required.)
• Recommended Aftermarket Wheels: Icon Alloys - 17x8.5 Inch W/ 4.75 Inch Backspace / 0mm Offset, Icon Alloys - 18x9 Inch W/ 5 Inch Backspace / 0mm Offset, Icon Alloys - 20x9 Inch W/ 5 Inch Backspace / 0mm Offset
• Shocks Included: Yes
• Spring Color: Black
• Spring Material: Steel
• Spring Rate: 650.0
• Add On Part: 191014 - .25 Inch Collar Spanner Pin Wrench, 198001 - Billet Spanner Wrench Kit, 198000 - 2 Pin Coilover Spanner Wrench Kit
