ICON VEHICLE DYNAMICS | 4.5" Lift Stage Options Suspension System w/Radius Arm | 17-19 Ford F250/F350 | K64514R / K64515R
ICON VEHICLE DYNAMICS | 4.5" Lift Stage Options Suspension System w/Radius Arm | 17-19 Ford F250/F350 | K64514R / K64515RPART#: PART#: ICON-K64514R
Canadian Owned & Operated
ICON VEHICLE DYNAMICS | 4.5" Lift Stage Options Suspension System w/Radius Arm | 17-19 Ford F250/F350 | K64514R / K64515R
Description
ICON suspension system options
Choose the stage and manufacturer part number below. Each option is a separate complete package.
| Part number | Package | Lift height |
|---|---|---|
| K64514R | 4.5" Lift, Stage 4 Suspension System, w/Radius Arm | 4.5" |
| K64515R | 4.5" Lift, Stage 5 Suspension System, w/Radius Arm | 4.5" |
Fitment Table

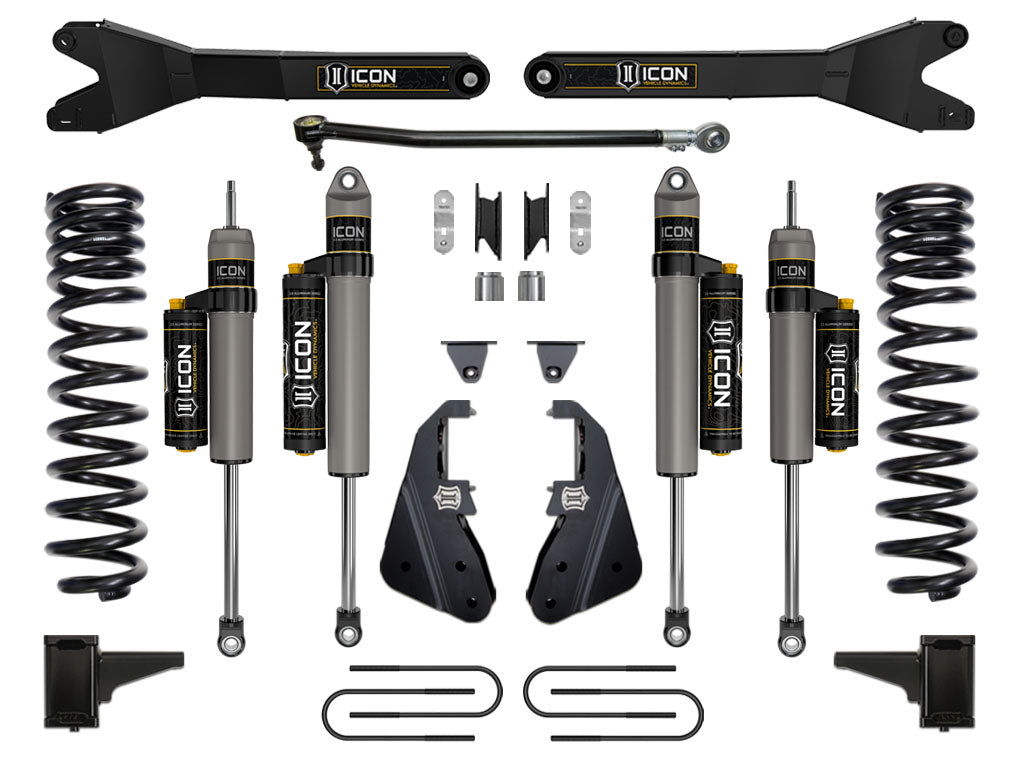

K64514R
2017-19 Ford F250/F350, 4.5" Lift, Stage 4 Suspension System, w/Radius Arm
- OEM Wheels & Tires Fitment: Yes
- Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5” Backspace / 6mm Offset
- Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.25” Backspace / 6mm Offset
- Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.25” Backspace / 6mm Offset
- Recommended Aftermarket Tires: 37" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
- APPLICATION NOTE #6: Springs Are Rated For Diesel Engines Only
- APPLICATION NOTE #8: This System May Require A Carrier Bearing Drop Bracket Kit (33700)
- APPLICATION NOTE #31: ‘08 - Current Superduty Models With Gas Engines May Need Exhaust Modified To Clear Front Driveshaft
- APPLICATION NOTE #55: Shocks Are Fully Serviceable. Coilover Heights Indicated Are For A Stock Equipped Vehicle
- TECH NOTE: Brake line kit (Part # 61110) is optional for end users who do not want to bend the factory steel lines or are looking for a braided stainless upgrade (not necessary for complete install)
- Ships in multiple boxes

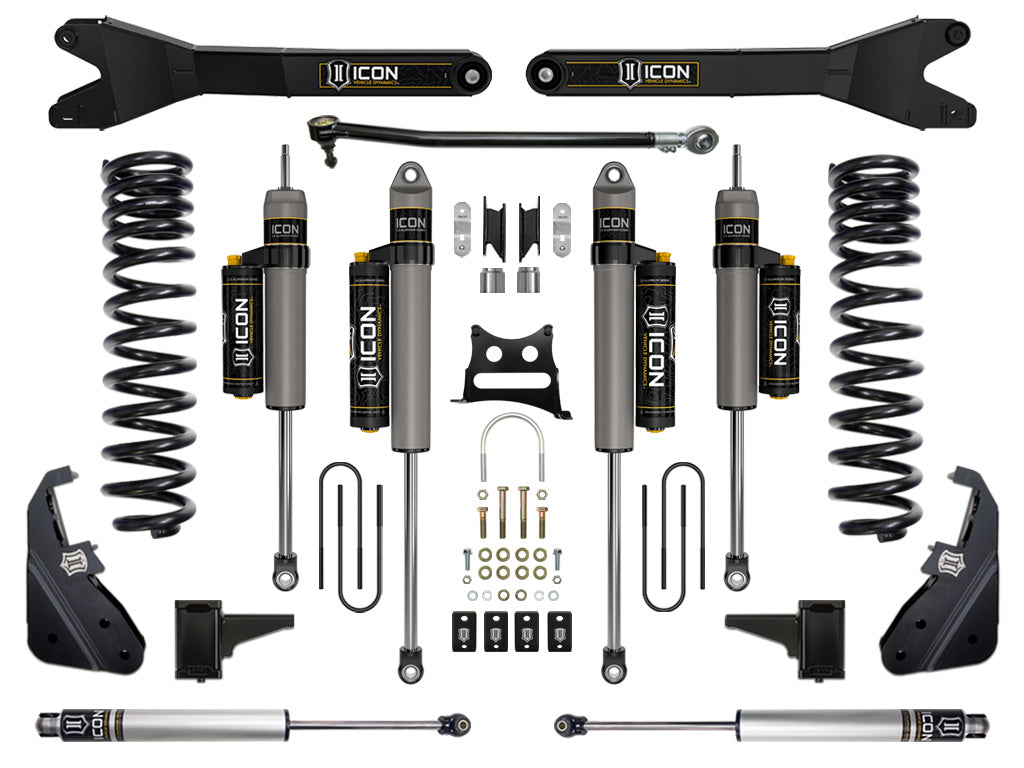

K64515R
2017-19 Ford F250/F350, 4.5" Lift, Stage 5 Suspension System, w/Radius Arm
- OEM Wheels & Tires Fitment: Yes
- Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5” Backspace / 6mm Offset
- Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.25” Backspace / 6mm Offset
- Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.25” Backspace / 6mm Offset
- Recommended Aftermarket Tires: 37" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
- APPLICATION NOTE #6: Springs Are Rated For Diesel Engines.
- APPLICATION NOTE #8: This System May Require A Carrier Bearing Drop Bracket Kit (33700).
- APPLICATION NOTE #31: ‘08-Up Superduty Models With Gas Engines May Need Exhaust Modified To Clear Front Driveshaft.
- APPLICATION NOTE #55: Shocks Are Fully Serviceable. Lift Heights Indicated Are For A Stock Equipped Vehicle.
- TECH NOTE: Brake line kit (Part # 61110) is optional for end users who do not want to bend the factory steel lines or are looking for a braided stainless upgrade (not necessary for complete install)
- Ships in multiple boxes
Warranty
See the ICON manufacturer warranty for terms and component exclusions. Keep your receipt and part number for warranty assistance.
