FACTOR 55 | FlatLink Winch Shackle Mount Yellow Factor 55 | B200050-03-GGBW

FlatLink is Factor 55's original folding winch shackle bracket. Features include a precision shackle mounting hole and a folding design giving you a lower profile, and allowing for a better approach angle than ProLink. FlatLink doesn't require splicing and is compatible with steel or synthetic ropes.
It attaches with a super-strong aerospace-grade double-shear titanium pin and snap ring, which is easily installed in minutes. The EPDM rubber guards protect alloy fairleads, prevents rattling, and is securely attached to the FlatLink with four barbed tips.
This product is compatible with Closed System Winching, a technique that uses rigging comprised entirely of closed-link hardware. With Closed System Winching you get the extra security and confidence needed to tackle the most demanding winch recoveries.

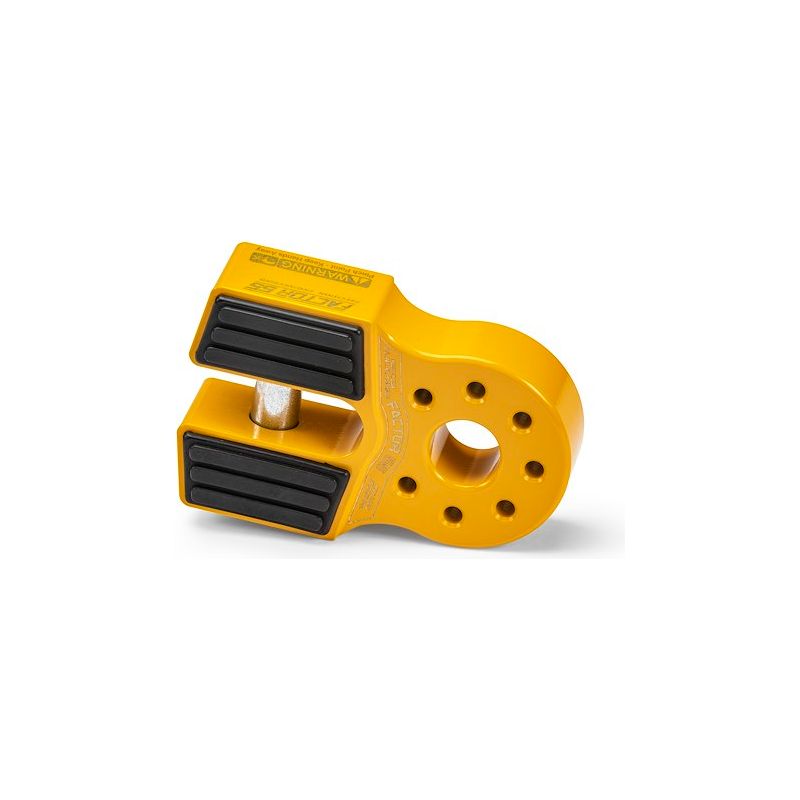

FlatLink Winch Shackle Mount Yellow
Double-shear pin and internal snap ring for an ultrasecure connection
EPDM rubber guards are attached with four barbed tips; it cushions line stowage, protects fairleads and prevents rattling
Precision machined from 6000 series aluminum
The rope eye is retained in the FlatLink with a 5/8 inch diameter 6AI-4V grade V titanium
Less than 1.75 inch of thick, when folded flat
Max load rating: 16,000lbs, Ultimate failure : greater than 40,000lbs
Weight: 23 oz.
Engineered, Tested, and Made in USA. Patent pending
