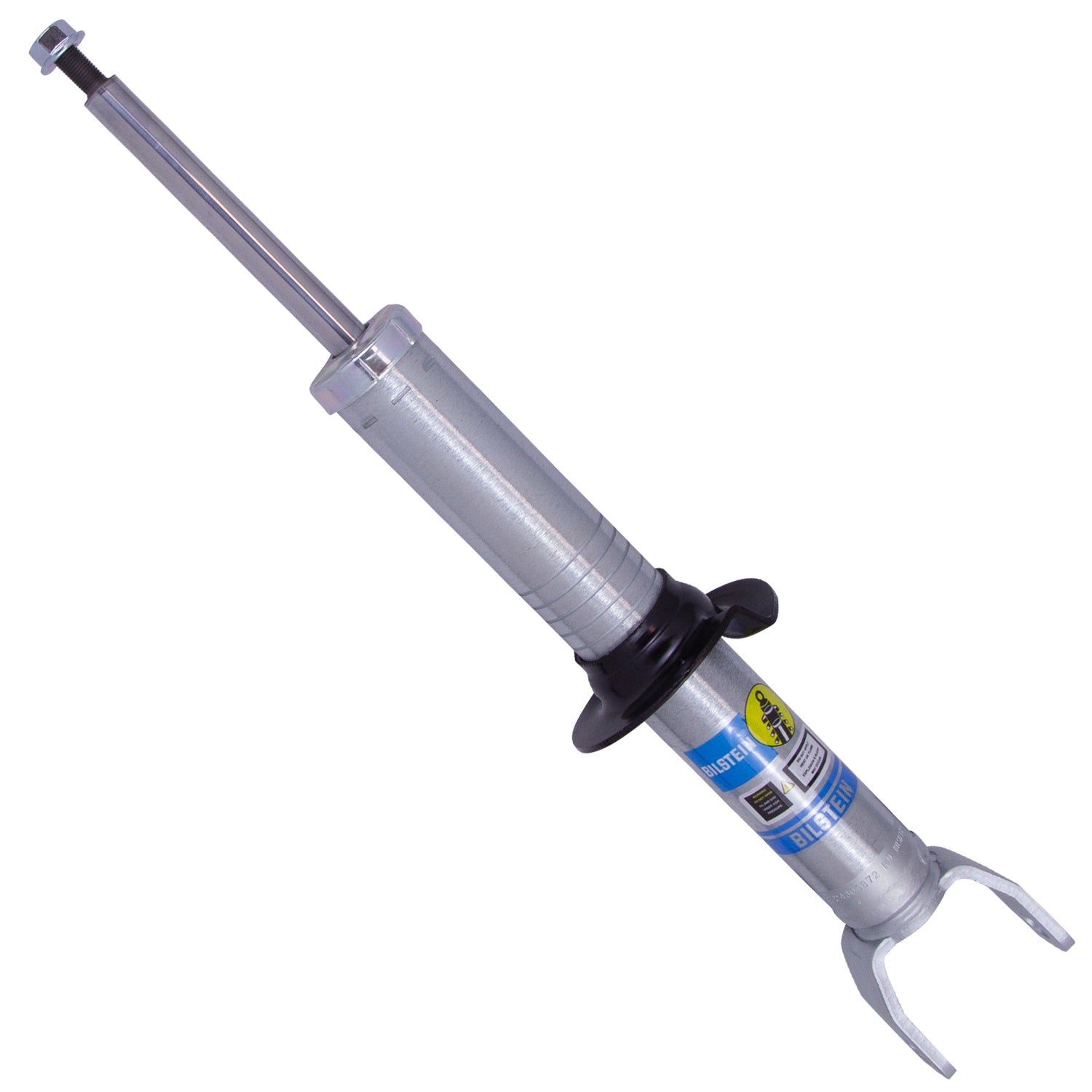

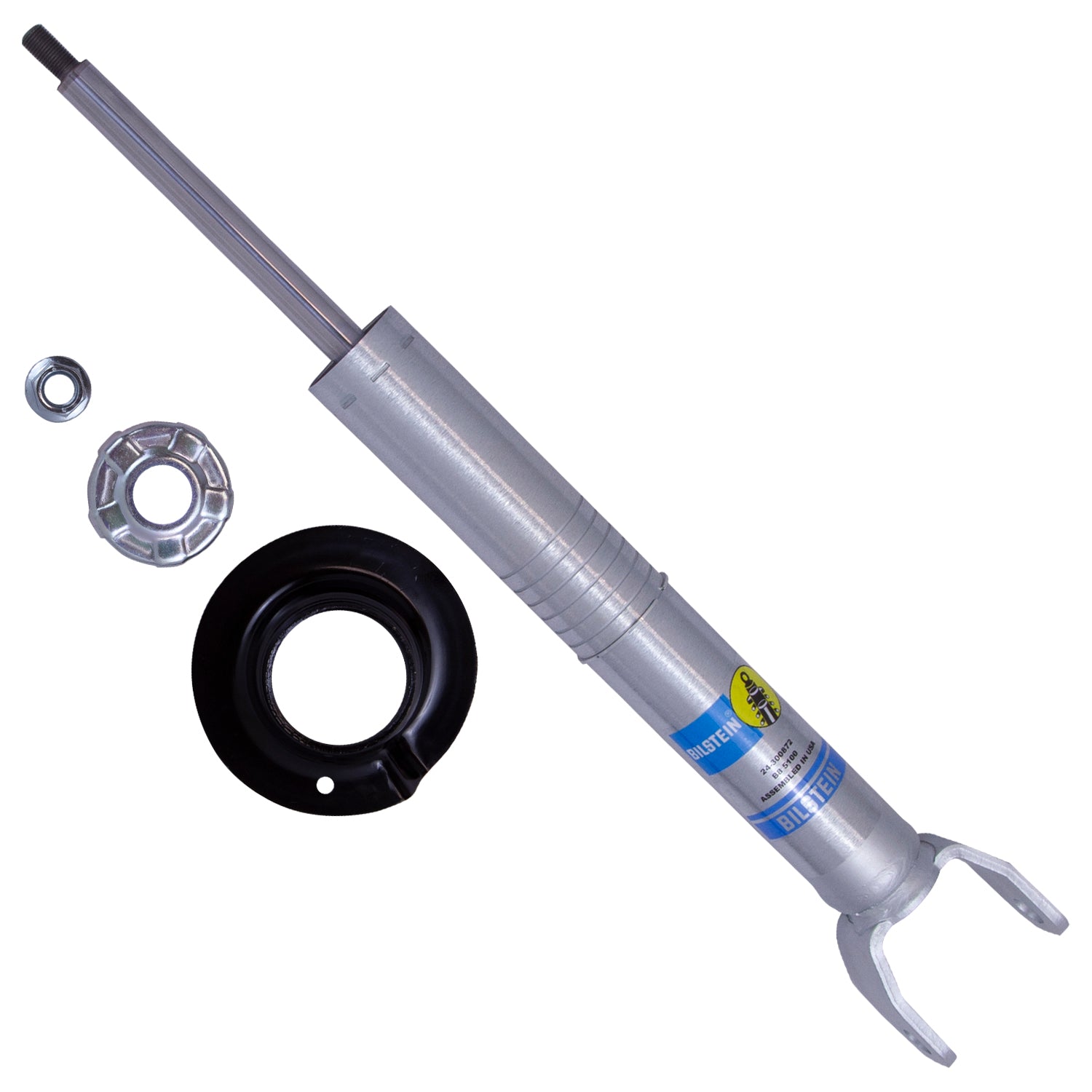

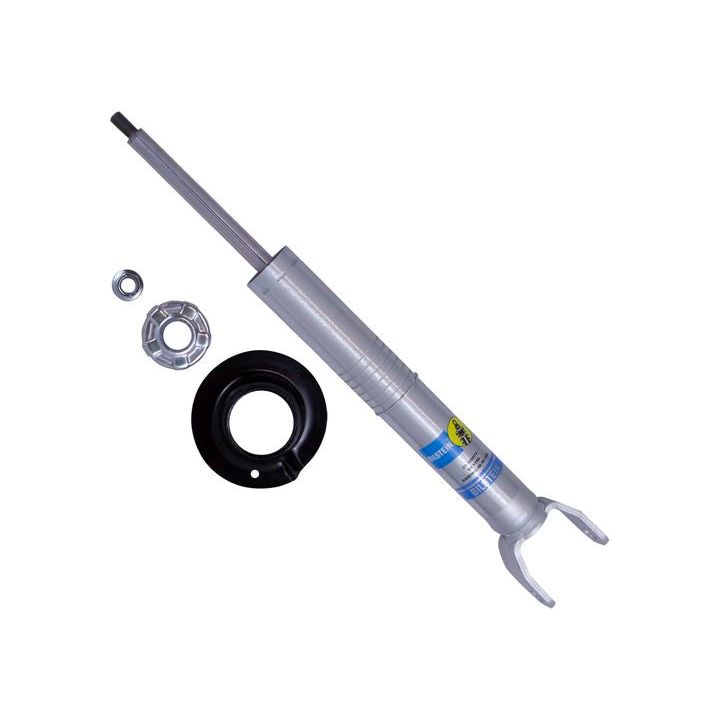

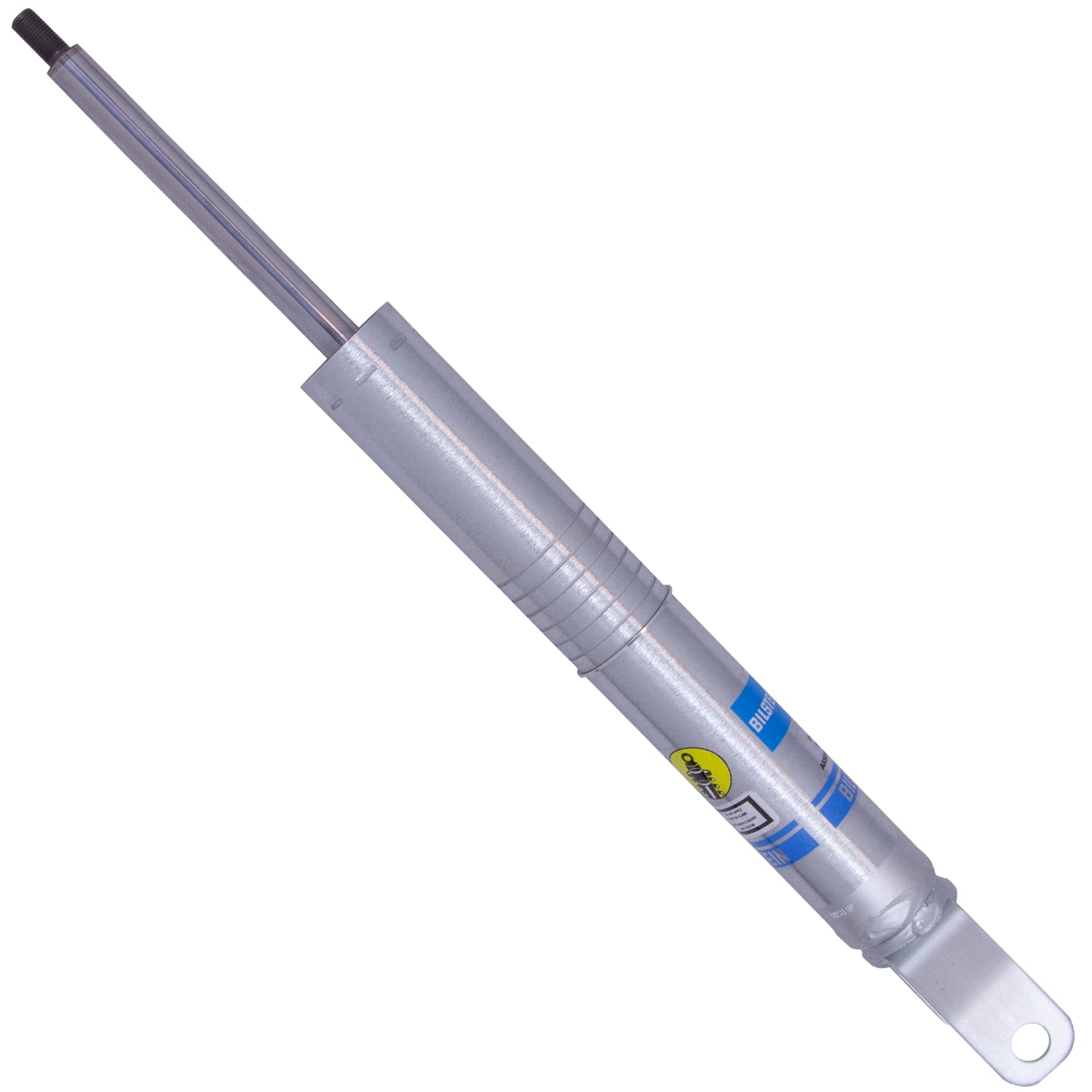

BILSTEIN | B8 5100 Shock Absorber 0-2.6" Lift, Ride Height Adjustable, Front, 22.08" Ext. / 16" Collapsed | 2019-2024 Ram 1500 (Front Lift Height 0-2.6" Without Air Suspension) | 24-300872
BILSTEIN | B8 5100 Shock Absorber 0-2.6" Lift, Ride Height Adjustable, Front, 22.08" Ext. / 16" Collapsed | 2019-2024 Ram 1500 (Front Lift Height 0-2.6" Without Air Suspension) | 24-300872PART#: PART#: 24-300872
Couldn't load pickup availability
Canadian Owned & Operated
BILSTEIN | B8 5100 Shock Absorber 0-2.6" Lift, Ride Height Adjustable, Front, 22.08" Ext. / 16" Collapsed | 2019-2024 Ram 1500 (Front Lift Height 0-2.6" Without Air Suspension) | 24-300872
Description
Bilstein B8 5100 (Ride Height Adjustable) shock absorbers are designed for trucks and SUVs with a Front OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-3 inches of Front lift with OE springs (depending on application).
- The monotube shock absorbers feature a 46mm Digressive piston a with self-adjusting deflective disc valve setting.
- Bilstein B8 5100 (Ride Height Adjustable) shock absorbers provide increased wheel travel and improved handling.
Utilizing a B8 5100 (Ride Height Adjustable) shock absorber is the easiest way to level out your vehicle.
Details:
- Series: B8 5100 (Ride Height Adjustable)
- Internal Design:Monotube
- Lift Height: 0-2.6 Inch
- Lower Mount Type: Clevis
- Upper Mount Type: Stem
- Finish: Zinc Plated
- Adjustable: Non-Adjustable
- Body Design: Snap Ring Grooved Body (Coilover)
- Collapsed Length Inch: 16
- Extended Length Inch: 22.08
- Boot Included:No
- Pistion Diameter: 46mm
- Postion: Front
- Reservior: No
- Shaft Diameter: 18mm
- Stroke Travel Length In: 6.08
- Stroke Travel Length In: 154.4
- Notes: Front Lift Height 0-2. 6 Inch Without Air Suspension
- Applications: Ram 1500 2019-2024
- Warranty: Limited Lifetime Warranty
Fitment Table
| Vehicle | Years |
|---|---|
| 2019,2024,Ram,1500,Big Horn | |
| 2019,2024,Ram,1500,HFE | |
| 2019,2024,Ram,1500,Laramie | |
| 2019,2021,Ram,1500,Laramie Longhorn | |
| 2019,2024,Ram,1500,Lone Star | |
| 2019,2024,Ram,1500,Rebel | |
| 2019,2024,Ram,1500,Tradesman | |
| 2021,2024,Ram,1500,Limited Longhorn | |
| 2021,2021,Ram,1500,Longhorn |
Warranty
- Coverage: Generally, this includes B4 (OE), B6/B8 (Performance), and 4600/5100/6112 (Off-Road) series.
- Duration: Limited Lifetime for standard consumer use.
- Exceptions: 90-day warranty for motorsports/off-road race products (7100, 8125, etc.) and 2-year for air suspension.
- Requirements: Proof of purchase is required, and the warranty is non-transferable (original purchaser only).
- What is NOT covered: Damage from abuse, improper installation, accidents, or normal wear.
