BDS Suspension | Recoil Traction Bar Kit Silverado/Sierra 2500 / 3500 HD 01-10 | BDS2302

Improve traction on your 2001-2010 Chevy Silverado or GMC Sierra 2500 HD/3500 HD without limiting wheel travel with a BDS Recoil Traction Bar Mounting Kit, made with heavy wall construction and internal compression springs that can be loaded or unloaded while installed on the vehicle to control axle wrap. Full float design for bind-free performance and can be installed with a range of lift heights.

Fabricated from 2-inch OD x 3/16-inch wall steel tubing with a threaded bung welded in toward the axle and a CNC-machined end at the frame. Axle mount uses BDS's ultra-durable large-forged flex end and jam nut. Using a forged housing with large 1-1/4-nch x 12 threaded shank, a single sided snap ring and 1-piece flex ball, the flex ends are capable of up to 15 degrees of misalignment in either direction. At the frame end the bar uses a durometer specific polyurethane bushing and free floats in the traction bar utilizing a pair of dual stage internal compression springs and UHMW polyurethane bearings.

1. Will not fit Long Bed Models.

• Adjustable axle wrap control using dual-stage resistance springs
• Full floating traction bar design will not bind throughout the full range of wheel travel and/or hinder suspension articulation
• Spring preload can be adjusted on the vehicle without disassembling the traction bar
• Traction bar ends are greaseable and rebuildable
• Mounting brackets are bolt-on, only requiring minor drilling for frame mount installation

Install Time:

• 3-4 hrs
• ModeratelyEasy

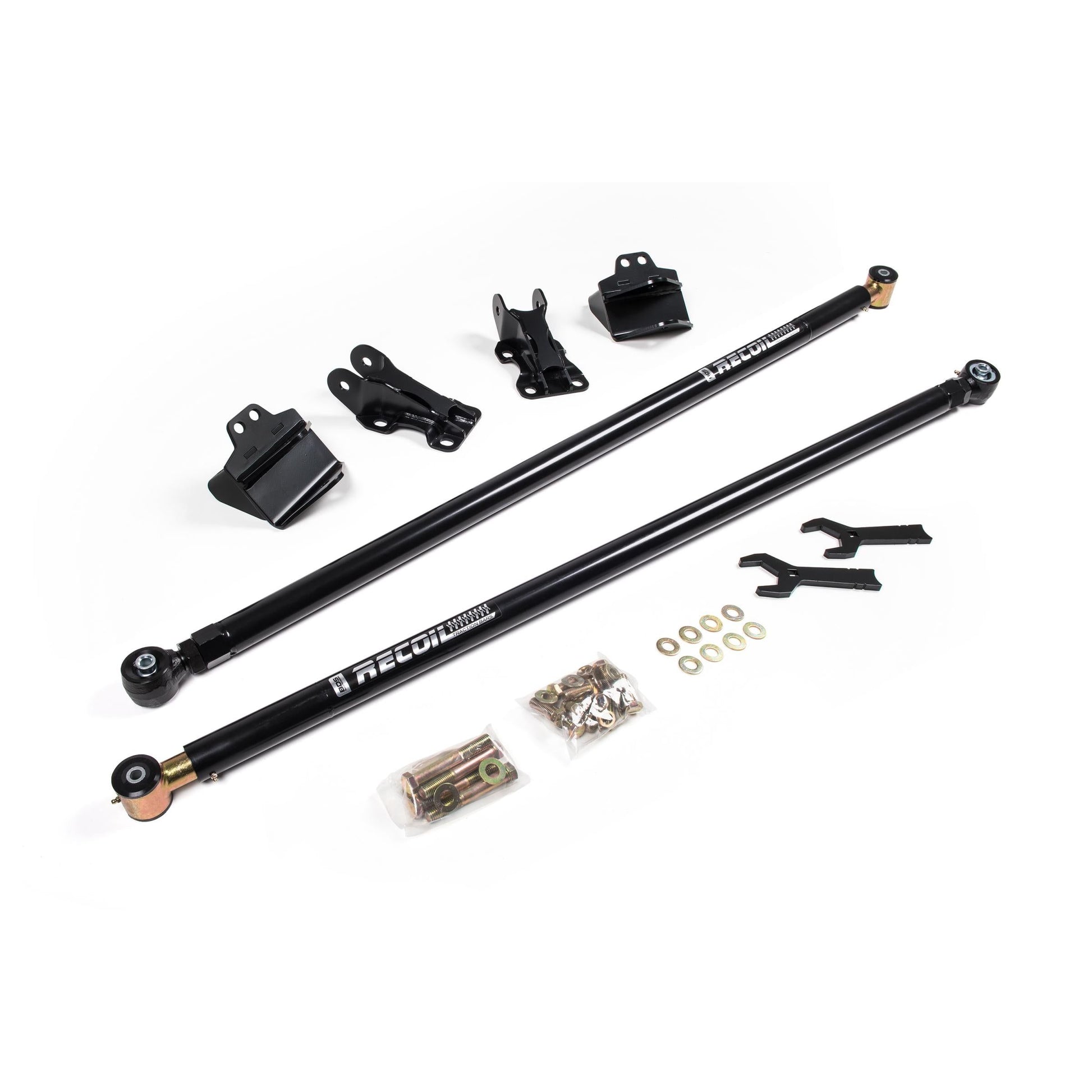

Kit Components

Includes one BDS121407, 01-10 HD Recoil Mounting Kit, UPC Code 658848619023
Includes one BDS123409, Recoil Traction Bar Box Kit, UPC Code 711745604230
