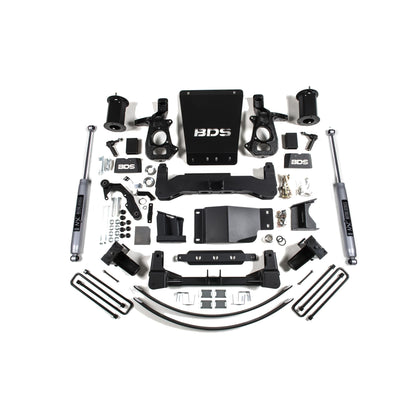

BDS Suspension | 8 Inch Lift Kit Silverado/Sierra 1500 14-18 4WD Cast Steel NX2 Nitro | BDS744H

Go big with the BDS 8-inch lift kit for your 2014-2018 Chevy Silverado and GMC Sierra 1500 resulting in one of a kind lifted truck. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35 inch Tires

This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance, strength, and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics.

Up front, the kit utilizes top mount strut spacers, high-arched 1/4-inch thick steel crossmembers along with a multipiece differential relocation brackets and heavy duty skid plates built for offroad protection.

Steering geometry is corrected at the new taller ride height with CNC-machined ductile iron steering knuckles. These combined with the provided sway bar drops, bump stop extensions, brake line brackets, CV spacers, supplied hardware and more provide a comprehensive front suspension lift ready for whatever you throw at it.

In the rear BDS offers both replacement lift block / add-a-leaf combo and full Glide-Ride leaf spring options to lift and level that stance. The lift block installs in place of the stock block and retains ride quality and load capacity. Also for the rear are new u-bolts, brake line brackets and precision tuned NX2 Nitro or FOX 2.0 Performance Series shocks.

High Clearance Crossmembers

BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection.

Heavy Duty Steering Knuckles

BDS corrects steering geometry at the new taller ride height using a pair of high-strength, CNC machined ductile cast iron steering knuckle design to work with factory tie rod ends to maintain steering angles for proper function and ESC compatibility.

• Front Lift Method: Cross-Member
• Rear Lift Method: Block
• Shocks Included: Yes
• Front Lift Height: 8 inch
• Rear Lift Height: 6 inch

Important: GM is producing several knuckle/control arm configurations in 2014-2018 models trucks. Cast Steel control arm equipped models will require the inchCast Steel Control Arm inch kit.

Stamped Steel and Aluminum control arm equipped models will require the inchAluminum Control Arm inch kit. Be sure to verify which factory control arms your truck has before ordering by referecing our help images when customizing your kit.

1. Requires frame bracket modification
2. Requires differential modification to clear electric power steering
3. Vehicles came from the factory with several knuckle/control arm configurations requiring specific kit selections. Be sure to reference the important notes and images above to determine the correct control arm selection for your application.
4. Factory 17 inch and 18 inch wheels cannot be reinstalled due to tie rod end interference.
5. All wheel drive models require drive line modification.

• High clearance crossmember design maximizes ground clearance
• Robust steering knuckles maintain ESC system compliance
• HD skid plate system improved offroad protection
• Multipoint differential relocation brackets to secure the front axle and improve CV angles
• Factory Protection Plus drivetrain warranty included

Factory Control Arm Type cast steel

Tire Size: 35 x 12.5 Tire Size 2: 35 x 12.5 Wheel Diameter: 20 x 9 Wheel Diameter 2: 22 x 10 Back Spacing: 5.5/5.5

Rear Shock Option NX2 Nitro Series

• Nitrogen-charged
• Twin-tube design
• 10-stage velocity-sensitive valving
• Dual-welded ends for increased strength
• 1-3/8-inch high-flow piston
• Self-lubricating seals
• Silver powder coat finish

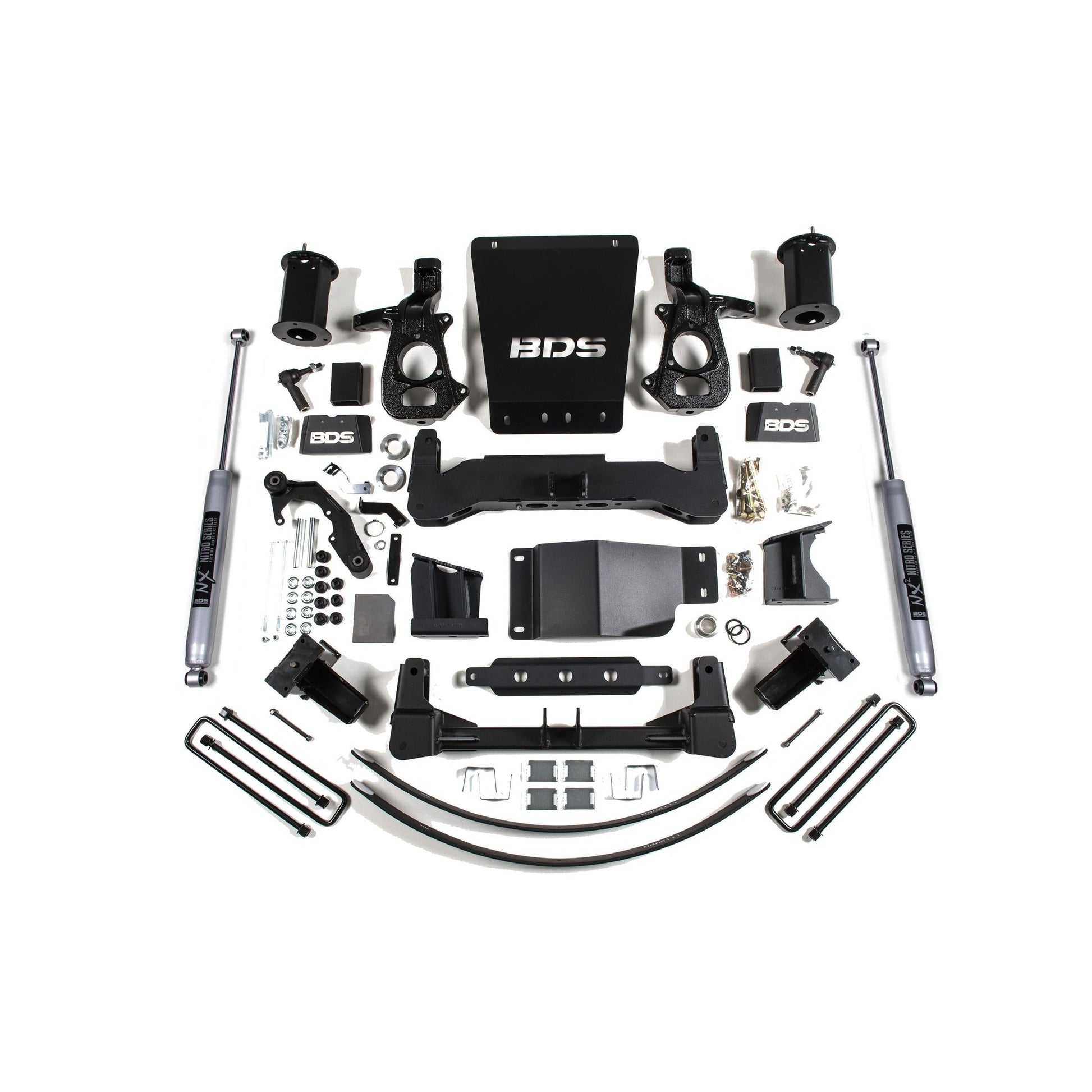

Kit Components:

• Includes one BDS021607, 14-up Chevy 1500 8 inch Rear Box Kit, UPC Code 658848614790
• Includes one BDS021802, 14-up Chevy 1500 8 inch Frt Box Kit 1of2, UPC Code 658848615261
• Includes one BDS021803, 14-up Chevy 1500 8 inch Frt Box Kit 2of2, UPC Code 658848615278
• Includes one BDS021804, 14-up Chevy 1500 8 inch Strut Spacer Box Kit, UPC Code 658848615285
• Includes one BDS021810, 14-up Chevy 1500 Knuckle-DRV-cast Steel, UPC Code 658848615292
• Includes one BDS021811, 14-up Chevy 1500 Knuckle-PASS-cast Steel, UPC Code 658848615308
• Includes two BDS85761, Shock- 33.00 x 19.25 x 2-3/8 - EB1/EB1, UPC Code 711745609709
