BDS Suspension | 6 Inch Lift Kit w/ Radius Arm Ford F100/F150 80-96 4WD 6 Inch Leaf Springs NX2 Nitro | BDS512H

Built to outperform, take your Ford 1980-1983 F100 and 1980-1996 F150 4WD truck to the next level with a 6-inch suspension lift kit with extended radius arms by BDS. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35 inch Tires.

Up front the lift kit includes Pro-Ride coil springs, axle pivot relocation brackets, extended radius arms, radius arm drop mounts, forged pitman arm for steering correction and precision tuned NX2 nitrogen charged shocks.

In the rear the base kit utilizes a high-strength lift block, longer u-bolts and a matching set of NX2 Nitro shocks.

Pro-Ride Coil Springs

A pair of full-length, vehicle-specific, Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains.

Extended Radius Arms

In place of the factory stamped steel radius arms BDS supplies a pair of high-strength tubular radius arms. The extended radius arm system will reduce caster change through wheel travel creating a more capable and controlled feeling in the steering wheel both on and off road.

• Front Lift Method: Coil Spring
• Rear Lift Method: Block
• Shocks Included: Yes
• Front Lift Height: 6 inch
• Rear Lift Height: 4 inch

1. Front end alignment required. Alignment cams may be required.
2. 123401 recommended if equipped with a front anti-sway bar. Ford produced 3 different styles of sway bar systems between 1980 and 1996. In extremely rare cases, modification may be required.
3. Extended lines required for all 4-6 inch lifts.
4. Does not fit F150 models without power steering.

• Easy, Bolt-on installation
• Pro-Ride dual rate coil springs ride smooth through any terrain
• Heavy duty steel drop brackets for proper suspension geometry
• Cast steel blocks provide level stance from front to rear
• NX2 Nitro shocks with vehicle-specific valving for better control

6 Inch Leaf Springs

• Eliminates any need for a lift block.
• Reduces axle wrap and creates a more controlled and stable feel.
• Multi-leaf progressive design for a smooth ride.
• Maintains factory payload weight ratings.

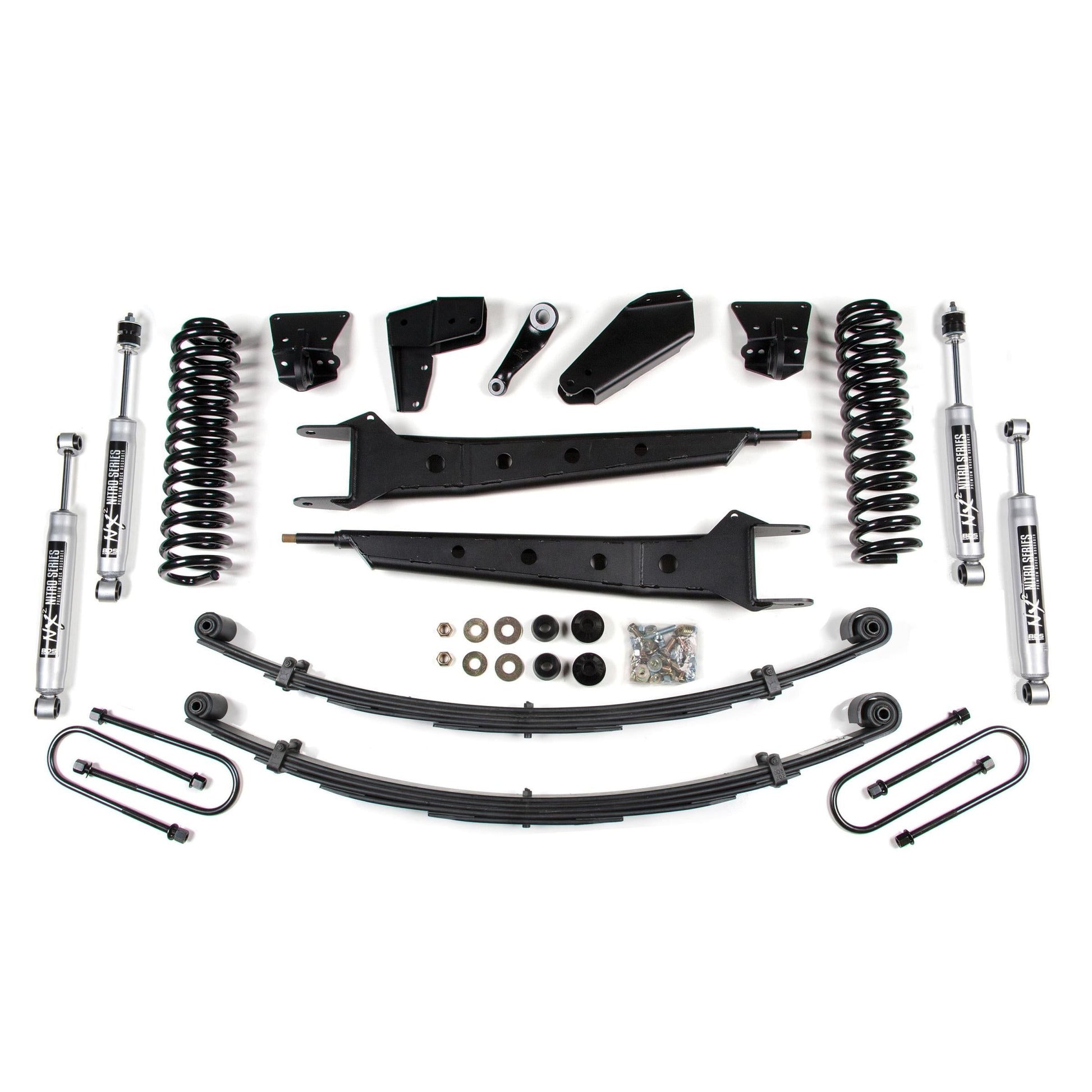

Kit Components:

• Includes two BDS003608, 73-96 Ford F150 6 Inch Rear Spring, UPC Code 658848611379
• Includes one BDS013003, 80-96 Ford F150 Ext Radius Arm Front Box, UPC Code 658848612932
• Includes one BDS033601, 80-96 Ford F150/Bronco 6 Inch Coil Kit, UPC Code 658848616541
• Includes two BDS85660, Shock- 29.80 x 17.60 x 2-3/8 - EB1/EB1, UPC Code 711745609471
• Includes two BDS85820, Shock- 22.90 x 13.90 x 2-3/8 - S1/EB1, UPC Code 711745609853
• Includes four UBT4051, 9/16 x 3-1/4 x 10 Round U-bolt, UPC Code 711745613126
