BDS Suspension | 6 Inch Lift Kit Ford Excursion 00-05 4WD Leaf Springs Fox 2.0 Performance | BDS303FS

Update the style of your 2000-2005 Ford Excursion with this 6-inch lift kit from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35 inch Tires.

Up front the lift kit includes Glide-Ride leaf springs, forged drop pitman arm and track bar bracket for steering correction, sway bar links, bump stop brackets and precision tuned NX2 or FOX nitrogen charged shocks.

In the rear this kit utilizes a high-strength lift block, longer u-bolts and a matching set of NX2 Nitro or FOX Performance shocks.

Glide-Ride Leaf Springs

Built to outperform, BDS engineered the Glide-Ride leaf springs into a multi-leaf progressive spring rate design that provides a smooth ride with any load. This is accomplished with an exclusive triple-stage leaf spring design.

Upgrading to BDS Glide-Ride leaf springs will provide flexibility throughout the suspension cycle.

Steering Correction

To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.

• Front Lift Method: Leaf Spring
• Rear Lift Method: Block
• Shocks Included: Yes
• Front Lift Height: 6 inch
• Rear Lift Height: 5 inch

1. Remove factory block.
2. Models with rear CV driveshaft may experience drive line vibration.
3. Due to OE variances, you may need to change the rear block to level the truck.
4. #003202, #003402, #003602, #003609, #003802 & #003809 come with rubber bushings installed.

• Easy, 100 percent Bolt-on installation
• Glideride leaf springs to provide full lift height and increased capacity
• Track bar relocation bracket maintains proper steering angles for improved handling
• Standard NX2 Nitro shocks with vehicle-specific valving for better control
• Upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road

Rear Lift Option

• Eliminates any need for a lift block.
• Reduces axle wrap and creates a more controlled and stable feel.
• Multi-leaf progressive design for a smooth ride.
• Maintains factory payload weight ratings.

Shock Option

FOX 2.0 Performance Series

• 2-inch Impact extruded aluminum body
• Internal floating piston (Internal Floating Piston) monotube design
• CNC machined 6061-T6 aluminum mounting ends
• Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
• Race-developed high-flow piston design
• Application-specific valving to maximize performance
• Long-lasting clear anodized finish

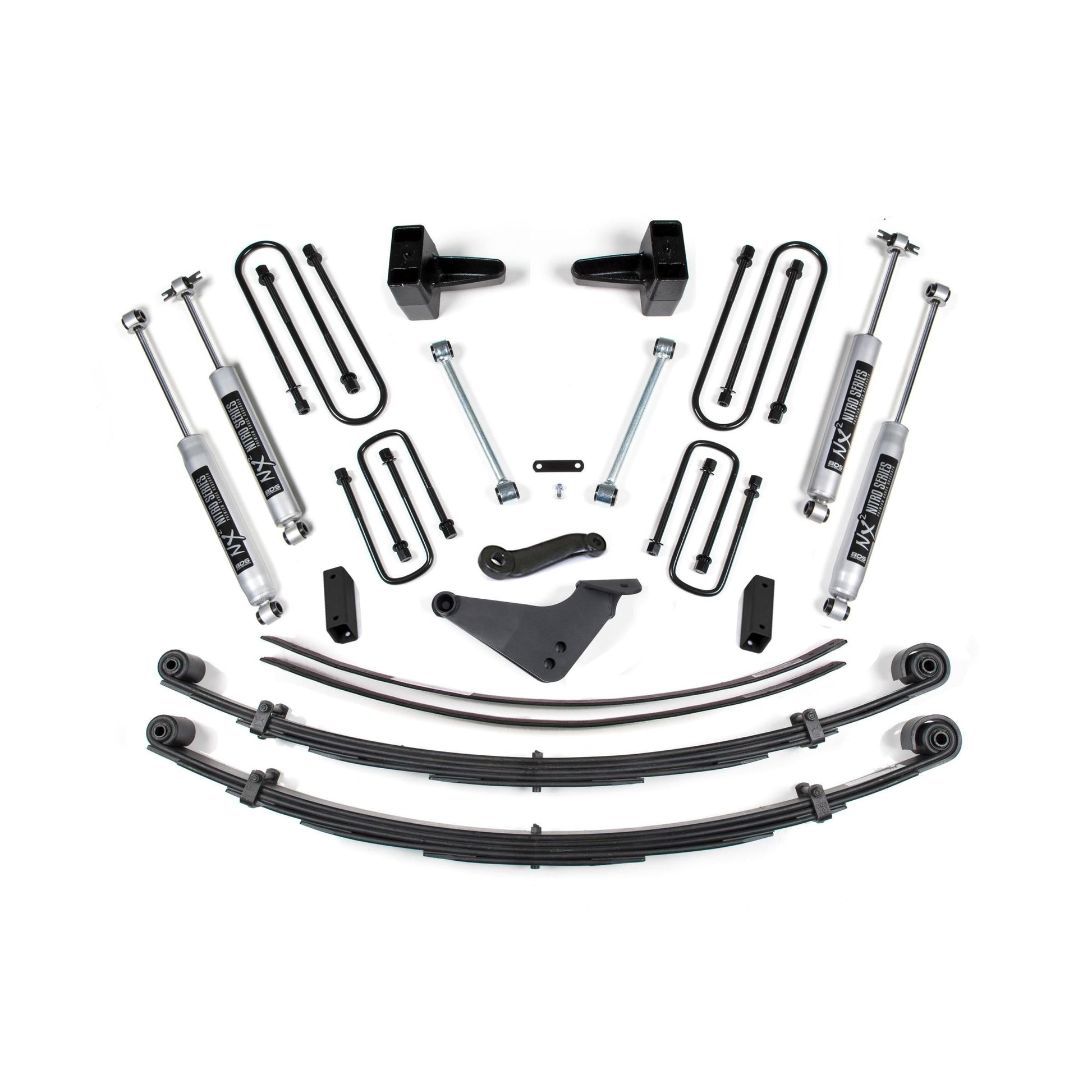

Kit Components:

• Includes two BDS003402, Ford F250/350 4 Inch Front Spring, UPC Code 658848611348
• Includes two BDS003609, Ford F250/350 6 Inch Rear Spring, UPC Code 658848611386
• Includes one BDS013009, Ford F250/350 6&8in Rear Box Kit, UPC Code 658848612987
• Includes one BDS013405, 00-01 Ford F250/350 4 Inch Front Bx Kt w/cu, UPC Code 658848613380
• Includes two FOX98224650, Fox 2.0 Shock 26.85 x 16.75 x 2- EB1/EB1
• Includes two FOX98224762, Fox 2.0 Shock 33.85 x 20.75 x 2- BP8/EB1
