BDS Suspension | 6.5 inch long arm lift kit Jeep Wrangler TJ and TJ Rubicon 1997-2006 NX2 Nitro | BDS467H

This lift kit comes with four new Pro-Ride Coil Springs capable of full coil bind. The box kit includes a pitman arm for steering correction, adjustable front track bar with a track bar relocation system to match the track bar angles with the steering angles. Four long lower arms are included with flex ends to ensure off road performance.

• Front Lift Method: Coil Spring
• Rear Lift Method: Coil Springs
• Shocks Included: No
• Front Lift Height: 6 inch
• Rear Lift Height: 6 inch

A slip yoke eliminator kit and CV style rear drive shaft is required.
May require exhaust modification.
Some welding required.
Long Arm systems also fit short wheel base Rubicon models (not Unlimited models)
All new long upper arms are included that are adjustable to fine tune the rear pinion angles as well as the front caster angles, D.O.T. approved Kevlar lined stainless steel brake lines for front and rear, ultimate sway bar disconnects for the front and extended links for the rear, and NX2 series shocks.

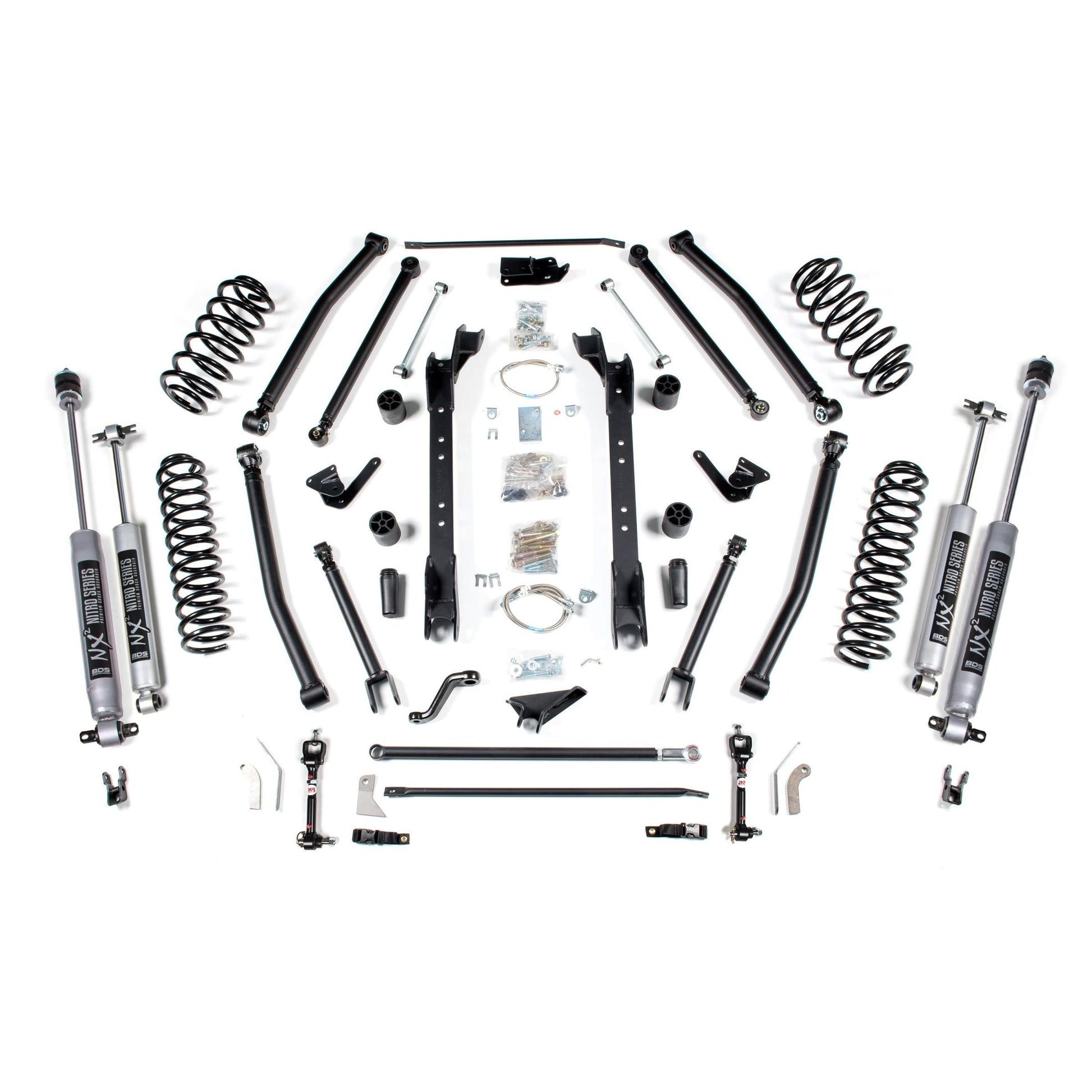

Kit Components:

• Includes one BDS014651, 97-04 Jeep TJ 6.5in Long Arm Box (2of3), UPC Code 711745611849
• Includes one BDS014657, 97-06 Jeep TJ 6.5in LA Box Kit, UPC Code 658848614288
• Includes one BDS014660, 97-06 Jeep TJ Long Arm Box (1of3), UPC Code 658848614318
• Includes one BDS034651, 1997-2006 Jeep Wrangler (TJ) 6.5in Front Coil Springs, UPC Code 658848616961
• Includes one BDS034659, 1997-2006 Jeep Wrangler (TJ) 6.5in Rear Coil Springs, UPC Code 658848616985
• Includes two BDS85962, Shock- 29.80 x 17.55 x 2-3/8 - S1/BP7, UPC Code 711745610132
• Includes two BDS85974, Shock- 25.95 x 15.40 x 2 - BP18/EB1, UPC Code 711745610224
