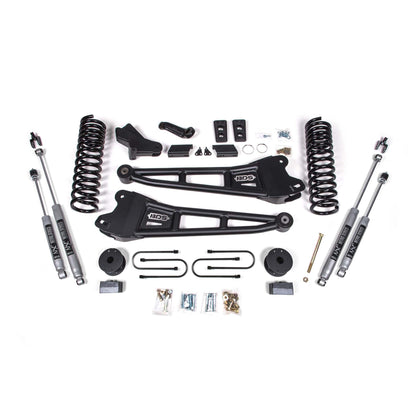

BDS Suspension | 4 Inch Lift Kit w/ Radius Arm Ram 3500 w/ Rear Air Ride 13-18 4WD Diesel Fox 2.0 Performance | BDS1792FS

Upgrade the ride and style of your 2013-2018 RAM 3500 diesel powered truck equipped with factory rear air ride by installing this 4-inch radius arm lift kit from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35 inch Tires.

Up front the lift kit includes diesel-specific Pro-Ride coil springs, heavy duty radius arms, forged drop pitman arm and track bar bracket for steering correction, bump stops, brake line brackets and precision tuned NX2 or FOX 2.0 nitrogen charged shocks.

In the rear this kit utilizes a high-strength fabricated lift block, heavy duty air bag spacer, longer u-bolts and a matching set of NX2 Nitro or FOX 2.0 Performance shocks.

Pro-Ride Coil Springs

A pair of full-length, diesel-specific, progressive rate Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains.

HD Radius Arms

In place of the factory stamped steel radius arms BDS supplies a pair of high-strength tubular radius arms. These arms mount into the factory location and offer caster adjustment for a wide range of lift heights along with an OE-style rubber bushing at the frame mount for smooth, quiet, service-free operation.

Steering Correction

To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.

Fox 2.0 Performance Shocks

• Front Lift Method: Coil Spring
• Rear Lift Method: Blocks
• Shocks Included: Yes
• Front Lift Height: 4 inch
• Rear Lift Height: 3 inch

1. The carrier bearing drop is necessary for models equipped with two piece rear drive shaft.
2. Some vehicles may require rear driveshaft spacer kit 122007 to maintain adequate rear driveshaft engagement.

• Heavy duty tubular radius arms improve strength, handling and caster control
• Front high strength progressive rate coil springs for a great ride on any terrain
• Front track bar relocation bracket to re-position axle
• Forged drop pitman arm to correct steering angles
• Front sway bar correction to maintain handling performance
• BDS NX2 gas or FOX performance series Internal Floating Piston gas shocks to improved ride and offroad performance

Tire Size: 35 x 12.5 Wheel Diameter: 20 x 9 Back Spacing: 4.5

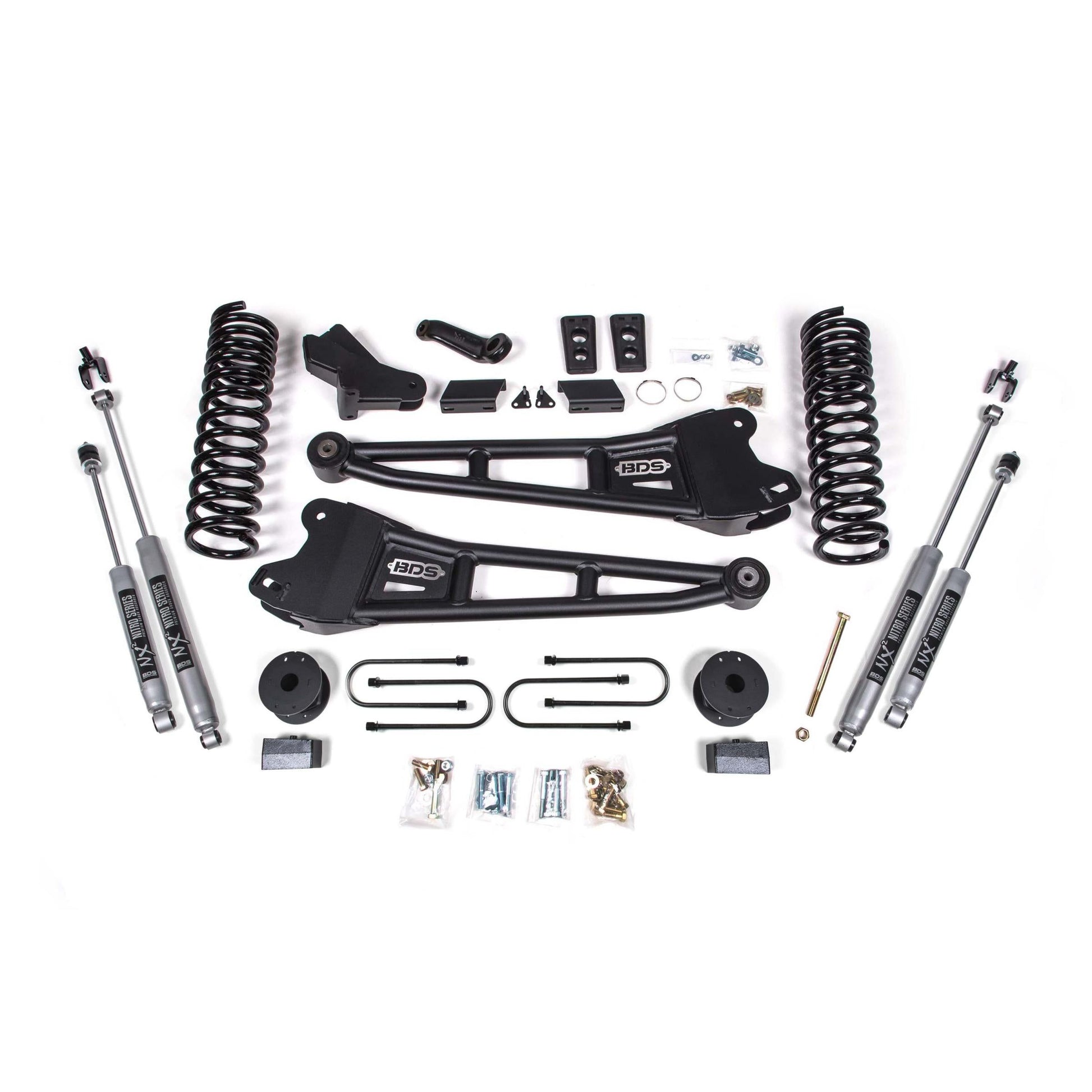

Kit Components:

• Includes one BDS012318, Ram 3500 Auto Level Air Suspension 3 inch Rear, UPC Code 711745611467
• Includes one BDS012432, 2014-2018 Ram 2500 4wd 4 inch Radius Arm Front Box Kit, UPC Code 711745611702
• Includes one BDS032401, 2013-2018 Ram 3500 / 2014-2018 2500 Ram - Front Coils 4 inch Diesel - 5.5 inch Gas, UPC Code 658848616367
• Includes one BDS122321, 2013-2024 Ram 2500 /2013-2024 Ram 3500 Radius Arm Box Kit, UPC Code 658848619429
• Includes two FOX98224752, Fox 2.0 Shock 28.25 x 17.15 x 2- S50/EB1
• Includes two FOX98224758, Fox 2.0 Shock 27.95 x 17.35 x 2- EB1/EB1, UPC Code 692878899062
