BDS | 4 Inch Lift Kit w/ 4-Link | Ram 3500 (19-24) 4WD | Diesel

Name: BDS | 4 Inch Lift Kit w/ 4-Link | Ram 3500 (19-24) 4WD | Diesel
Brand: BDS SUSPENSION
SKU: BDS1667FPE
Price: 8133.34 CAD
Availability: InStock

SKU: SKU: BDS1667FPE

Fits your vehicle

21% OFF

$8,133.34

~~$10,317.29~~ $8,133.34

Sale Sold out

Shipping calculated at checkout.

⚠ No Stock — Available to Order

Estimated lead time: 3–10 weeks. Lead times may vary.

Product variants

Quantity

Free Shipping in Canada over $350!
Expedited shipping across Canada!
Expert Fitment & Product Support
CALL/TEXT 416-624-1357

View full details

Description

4 Inch Lift Kit w/ 4-Link | Ram 3500 (19-24) 4WD | Diesel. Select an available shock option below.

6 Bolt / FOX 2.5 Performance Elite — BDS1667FPE

Front Lift Method: 4-Link
Rear Lift Method: Block
Shocks Included: Yes
Front Lift Height: 4 inch
Rear Lift Height: 3 inch

Dually with 8-bolt Transmission (Aisin), require BDS122409 Def Relocation Kit
Mega Cab inch's with 8-bolt Transmission (Aisin), require BDS122409 Def Relocation Kit
Vehicles equipped with a Manual T-case requires BDS122423 Manual transfer case shifter extension
1. Vehicles equipped with a 2-piece rear drive shaft (carrier bearing), require BDS122406 Carrier bearing drop.

Indexing Ring Option 6 Bolt Indexing Ring

Kits come standard with 6-Bolt indexing ring kit.

FOX 2.5 Performance Elite Series

Increased off-road capabilities
Easily adjust your shock for terrain, load and speed
2.5-inch Impact extruded aluminum body
Massive 7/8-inch hard chrome plated heat-treated alloy steel shaft
External reservoir design separates shock oil from the high-pressure nitrogen
Dual Speed Compression Adjust - Dual Speed Compression Adjuster comes standard
Fully serviceable for a lifetime of use
1-year Manufacturer's Warranty

Kit Components:

Includes one BDS012329, 2019-2024 Ram 3500 3 inch Rear Box 4 3/8 inch U-bolt w/ overload, UPC Code 658848612291
Includes one BDS012433, 2019-2024 Ram 2500 / 2019-2024 Ram 3500 4-Link Box Kit 1of2, UPC Code 658848612437
Includes one BDS012434, 2019-2024 Ram 2500 / 2019-2024 Ram 3500 4-Link Box Kit - 2 of 2, UPC Code 658848612444
Includes one BDS032491, 2019-2024 Ram 2500 / 2019-2024 Ram 3500 Coil Springs - 4 inch Diesel/5.5 inch Gas, UPC Code 658848616374
Includes one BDS122624, 2019-2024 Ram 2500 / 2019-2024 Ram 3500 T-Case Index - 6 Bolt - Diesel, UPC Code 658848619764
Includes one FOX88326064, Kit: 2014-2024 Ram 2500, Front, 2.5 Truck Fox Performance Elite Series, R/R, 6 inch Lift, Dual Speed Compression Adjust
Includes one FOX88326101, Kit: 2014-2024 Ram 3500, Rear, 2.5 Truck Fox Performance Elite Series, P/B, 2-3.5 inchРЎСљ Lift, Dual Speed Compression Adjust

6 Bolt / FOX 2.0 Performance Series — BDS1667FS

Front Lift Method: 4-Link
Rear Lift Method: Block
Shocks Included: Yes
Front Lift Height: 4 inch
Rear Lift Height: 3 inch

Dually with 8-bolt Transmission (Aisin), require BDS122409 Def Relocation Kit
Mega Cab inch's with 8-bolt Transmission (Aisin), require BDS122409 Def Relocation Kit
Vehicles equipped with a Manual T-case requires BDS122423 Manual transfer case shifter extension
1. Vehicles equipped with a 2-piece rear drive shaft (carrier bearing), require BDS122406 Carrier bearing drop.

Indexing Ring Option 6 Bolt Indexing Ring

Kits come standard with 6-Bolt indexing ring kit.

FOX 2.0 Performance Series

2-inch Impact extruded aluminum body
Internal floating piston (Internal Floating Piston) monotube design
CNC machined 6061-T6 aluminum mounting ends
Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
Race-developed high-flow piston design
Application-specific valving to maximize performance
Long-lasting clear anodized finish

Kit Components:

Includes one BDS012329, 2019-2024 Ram 3500 3 inch Rear Box 4 3/8 inch U-bolt w/ overload, UPC Code 658848612291
Includes one BDS012433, 2019-2024 Ram 2500 / 2019-2024 Ram 3500 4-Link Box Kit 1of2, UPC Code 658848612437
Includes one BDS012434, 2019-2024 Ram 2500 / 2019-2024 Ram 3500 4-Link Box Kit - 2 of 2, UPC Code 658848612444
Includes one BDS032491, 2019-2024 Ram 2500 / 2019-2024 Ram 3500 Coil Springs - 4 inch Diesel/5.5 inch Gas, UPC Code 658848616374
Includes one BDS122624, 2019-2024 Ram 2500 / 2019-2024 Ram 3500 T-Case Index - 6 Bolt - Diesel, UPC Code 658848619764
Includes two FOX98224714, Fox 2.0 Shock 26.74 x 16.65 x 2 - S50/EB1
Includes two FOX98224759, Fox 2.0 Shock 30.05 x 18.45 x 2- EB1/EB1

Important fitment notes

Dually with 8-bolt Transmission (Aisin), require BDS122409 Def Relocation Kit
Mega Cabs with 8-bolt Transmission (Aisin), require BDS122409 Def Relocation Kit
Vehicles equipped with a Manual T-case requires BDS122423 Manual transfer case shifter extension
Vehicles equipped with a 2-piece rear drive shaft (carrier bearing), require BDS122406 Carrier bearing drop.

Additional installation documents

Additional available configurations

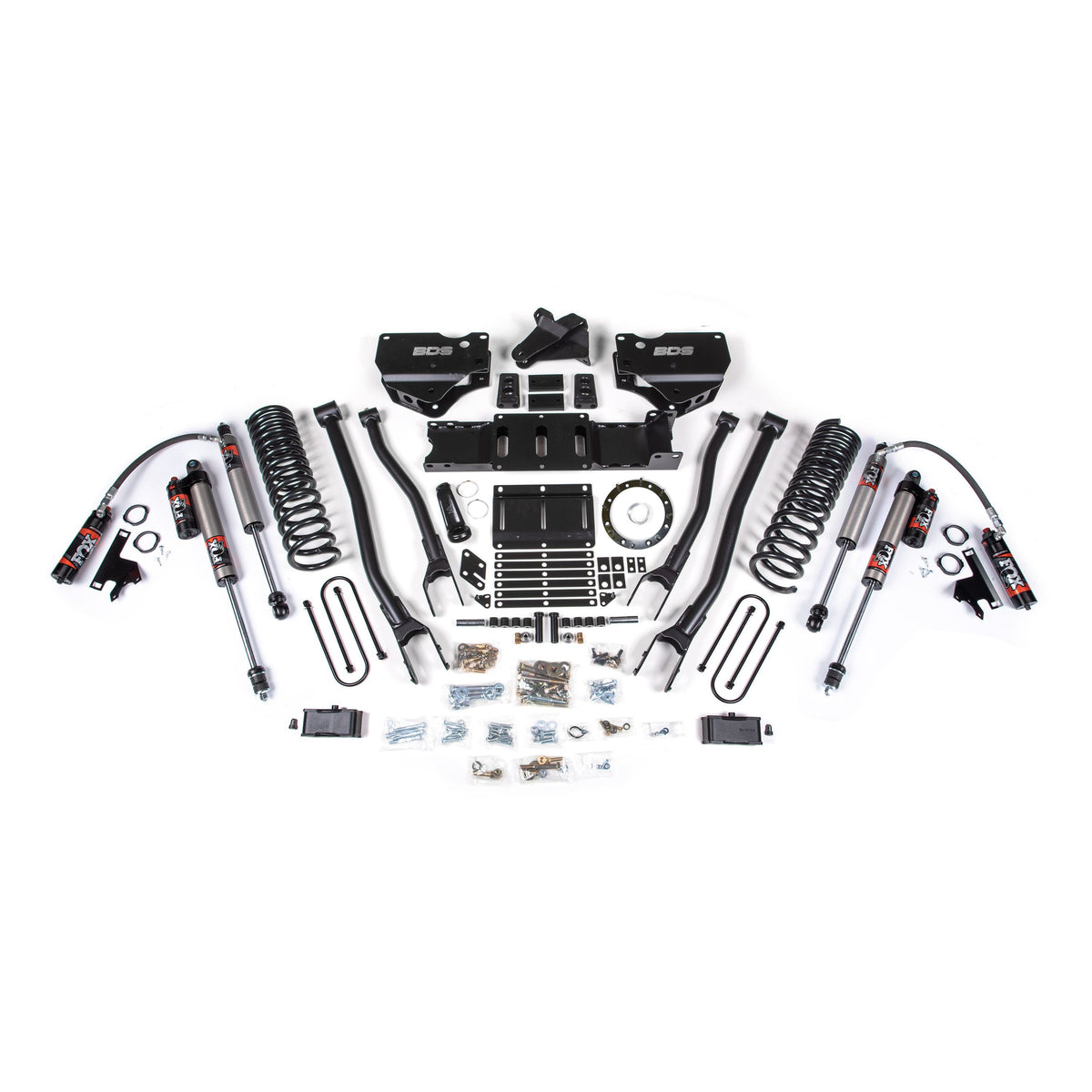

BDS1669FPE: 8 Bolt / FOX 2.5 Performance Elite

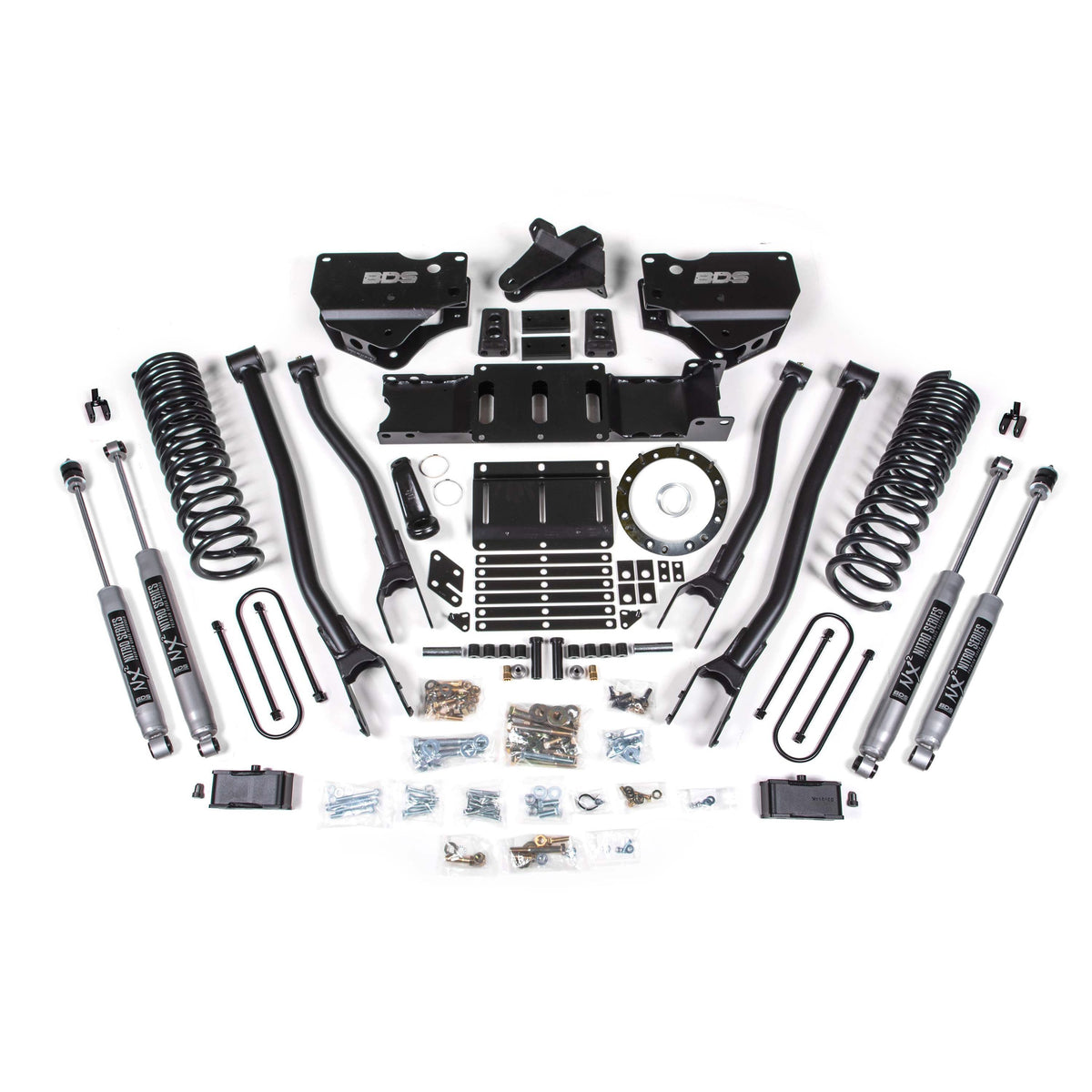

BDS1669H: 8 Bolt / NX2 Nitro Series
BDS1667PS: 6 Bolt / FOX 2.5 Performance Series HTO

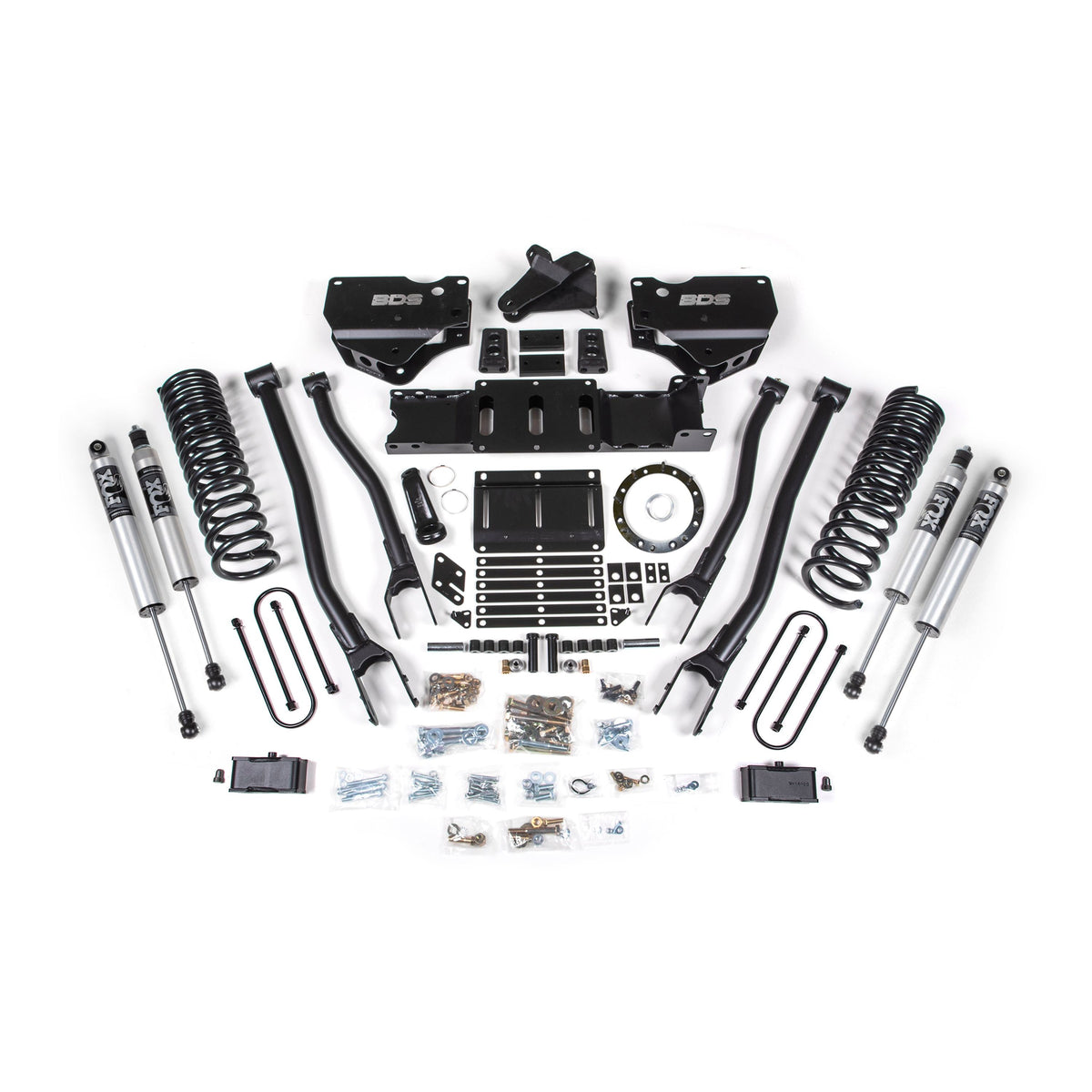

BDS1669PS: 8 Bolt / FOX 2.5 Performance Series HTO

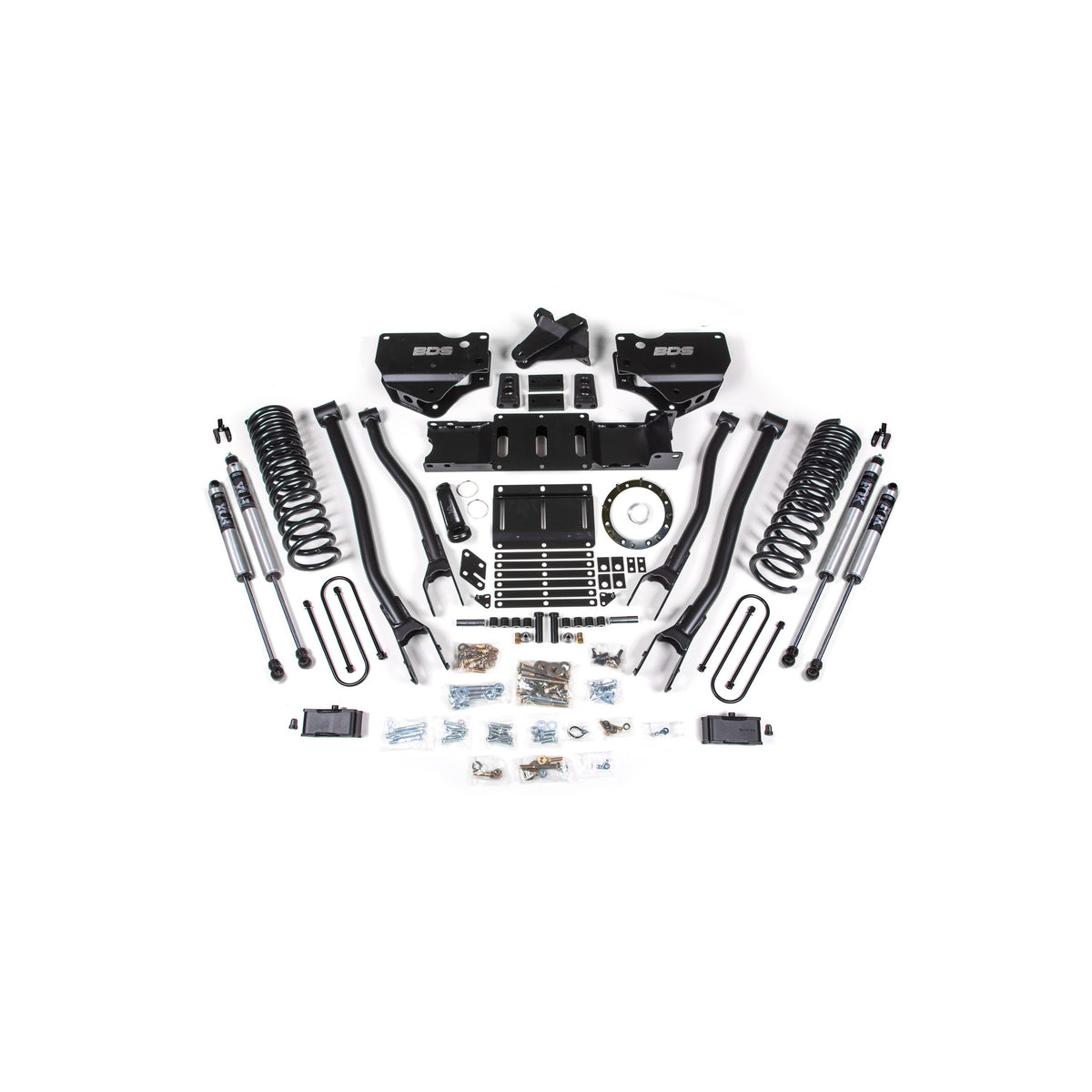

8 Bolt / FOX 2.0 Performance Series — BDS1669FS

For 2019–2024 Ram 3500 4WD diesel models with factory rear overload leaf springs and an 8-bolt transfer case. Includes 4-link conversion, front coil springs, 3-inch rear blocks and FOX 2.0 Performance Series shocks. Front lift: 4 inches; rear lift: 3 inches. The installation requirements above apply.

➡️ Warranty

What is Covered

Hard Parts: Lifetime warranty against breaking, bending, or sagging.
Bushings: Lifetime replacement coverage for polyurethane or rubber bushings.
Ball Joints & Tie Rods: 3-year warranty against premature wear if properly maintained and greased.
Shocks: Typically 2 years for BDS NX2/Fox proprietary series (standard Fox shocks carry a 1-year warranty).

➡️ Shipping & Returns

Shipping & Refund Policy

Shipping:
We ship across Canada. Orders are processed within 1–2 business days. Delivery within Canada typically takes 3–10 business days depending on location and carrier. Tracking information will be provided once your order ships.

Refunds & Returns:
Returns are accepted within 30 days of delivery. Items must be unused and in original packaging. Please review our full return policy for more details.

Damaged or Incorrect Items:
If you receive a damaged or incorrect item, please contact us within 5 days of delivery. Call or text 416-624-1357 or email sales@Niagarajeeps.ca so we can resolve the issue quickly.

➡️ Fitment Table

2019–2024 Ram 3500 4WD, diesel only. Select the correct indexing ring and shock option.

Dually with 8-bolt Transmission (Aisin), require BDS122409 Def Relocation Kit
Mega Cabs with 8-bolt Transmission (Aisin), require BDS122409 Def Relocation Kit
Vehicles equipped with a Manual T-case requires BDS122423 Manual transfer case shifter extension
Vehicles equipped with a 2-piece rear drive shaft (carrier bearing), require BDS122406 Carrier bearing drop.

YOUTUBE VIDEO LINK

DOWNLOADABLE INSTRUCTIONS
