BDS Suspension | 4 Inch Lift Kit FOX 2.5 Performance Elite 2 Inch Coil-Over 07-14 Avalanche, Suburban, Tahoe, Yukon 1500 4WD | BDS188PSS

Take your 2007-2014 Chevy Avalanche, Suburban, or Tahoe and GMC Yukon 1500 to new heights with a BDS 4-inch lift kit. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 33 inch tires.

This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance, strength, and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics.

Up front, the kit utilizes full length replacement strut shocks, high-arched 1/4-inch thick steel crossmembers along with a multipiece differential relocation brackets and heavy duty skid plates built for offroad protection.

Steering geometry is corrected at the new taller ride height with CNC-machined ductile iron steering knuckles. These combined with the provided sway bar drops, bump stop extensions, brake line brackets, CV spacers, supplied hardware and more provide a comprehensive front suspension lift ready for whatever you throw at it.

In the rear BDS offers coil spring spacers to properly level the vehicle. Also for the rear are precision tuned NX2 Nitro or premium FOX 2.0 Performance Series shocks.

High Clearance Crossmembers
BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection.
Heavy Duty Steering Knuckles
BDS corrects steering geometry at the new taller ride height using a pair of high-strength, CNC machined ductile cast iron steering knuckle design to work with factory tie rod ends to maintain steering angles for proper function and ESC compatibility.
Features and Benefits

• Fox 2.5 Shocks designed specifically for increased travel and the abilty to soak up the roughest terrain.
• The DSC (dual speed compression) adjuster adds remarkable versatilty and precise tuning with a simple twist of one or both knobs.
• High clearance crossmember design maximizes ground clearance Robust steering knuckles maintain ESC system compliance
• HD skid plate system improved offroad protection
• Multipoint differential relocation brackets to secure the front axle and improve CV angles
• FOX performance series IFP gas rear shocks to improved ride and offroad performance
• Factory Protection Plus drivetrain warranty included

Recommended Tires and Wheels

• (Trimming may be required)
• 32 x 11.5 with 17 x 8 and 4.5 in. Backspace
• 33 x 12.5 with 18 x 9 and 5 in. Backspace
• 33 x 12.5 with 20 x 9 and 5.75 in. Backspace

Rear Lift Option
BDS offers 2 inch rear coil spring spacers for a level or tail high stance with this kit!

Coil Spacers

• Maintains factory ride quality
• Made with heavy-duty steel construction
• Powdercoat finish for long-lasting durability

Notes:

• Will not work with auto-ride equipped vehicles. Minor premature engagement of the StabiliTrak system may occur during certain driving maneuvers.
• Minor frame bracket modification and welding are required.
• 20 inch wheels with 5 inch to 5-3/4 inch backspacing recommended to reduce trimming.
• Add BDS121651 Auxillary Differential bracket for AWD models. Also may require front driveline modification.

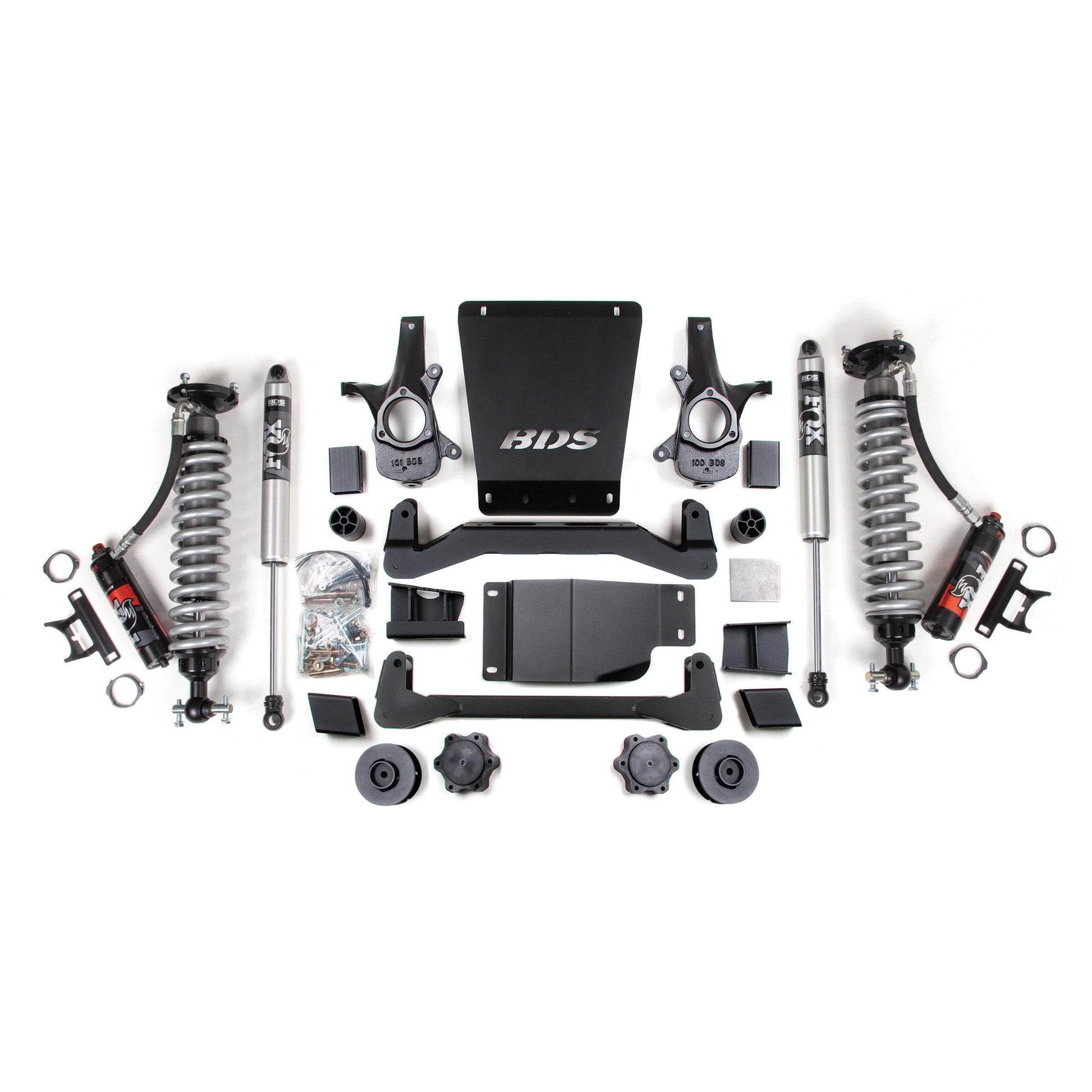

Kit Components

BDS021209 1 2007-2019 GM SUV - 2 inch Rear Box Kit
BDS021640 1 2007-2013 GM 1500, 2007-2014 GM SUV - 4 inch-6 inch Front Box Kit (1of2)
BDS021644 1 2007-2013 GM 1500, 2007-2014 GM SUV - 4 inch-6 inch Front Box Kit (2of2)
BDS121613 1 2007-2013 GM 1500, 2007-2014 GM SUV - Front Skid Plate Box Kit
FOX88406533 1 Kit: BDS 07-18 GM 1500, Front Coil over, 2.5 Truck PES, R/R, 4 inch, Lift, DSC
FOX98224719 2 Fox 2.0 Shock 26.85 x 16.75 x 2- EB1/EB1
