BDS Suspension | 2025 Silverado/Sierra 1500 4WD 4 Inch Suspension Lift Kit w/ARC V8 Gas 3 Inch Rear Block Spacer Front BDS Suspension | BDS1852H

Give your Chevy Silverado High Country and GMC Denali 1500 trucks a new look by installing a 4-inch suspension lift kit by BDS Suspension.

Works with trucks equipped with Adaptive Ride Control only. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35 inch tires

This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance, strength, and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics.

Up front, the kit utilizes top mounted strut spacers, high-arched 1/4-inch thick steel crossmembers along with a multipiece differential relocation brackets and heavy duty skid plates built for offroad protection.

Steering geometry is corrected at the new taller ride height with CNC-machined ductile iron steering knuckles and replacement tie rod ends allowing for ESC system compatibility.

These combined with the provided sway bar drops, bump stop extensions, brake line brackets, CV spacers, supplied hardware and more provide a comprehensive front suspension lift ready for whatever you throw at it.

In the rear BDS offers a heavy duty lift block to lift and level that stance. The lift block installs in place of the stock block and retains ride quality and load capacity. Also for the rear are new u-bolts and shock relocation brackets to retain the ARC system without error.

High Clearance Crossmembers

BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection.
Heavy Duty Steering Knuckles

BDS corrects steering geometry at the new taller ride height using a pair of high-strength, CNC machined ductile cast iron steering knuckle design to work with replacement tie rod ends to maintain steering angles for proper function and ESC compatibility.
Features & Benefits

• High clearance crossmember design maximizes ground clearance
• Robust steering knuckles maintain ESC system compliance
• HD skid plate system improved offroad protection
• Multipoint differential relocation brackets to secure the front axle and improve CV angles
• Factory Protection Plus drivetrain warranty included Utilizes OE shocks and controls.

Recommended Tires & Wheels

• (Trimming may be required)
• 33 x 12.5 with 17 x 9 and 4.5 in. Backspace
• 33 x 12.5 with 20 x 9 and 5 in. Backspace
• 33 x 12.5 with 20 x 9 and 6.25 in. Backspace

Fits 4X4 Models only
Works with High Country and Denali models with Gas engines and addaptive ride control only.

Specs

• Front Lift Method : Cross Member & Strut Spacer
• Front Lift Height : 4 inch
• Rear Lift Method : Block
• Rear Lift Height : 3 inch
• Shocks Included : Yes
• Lift Height : 4-5.5 inch

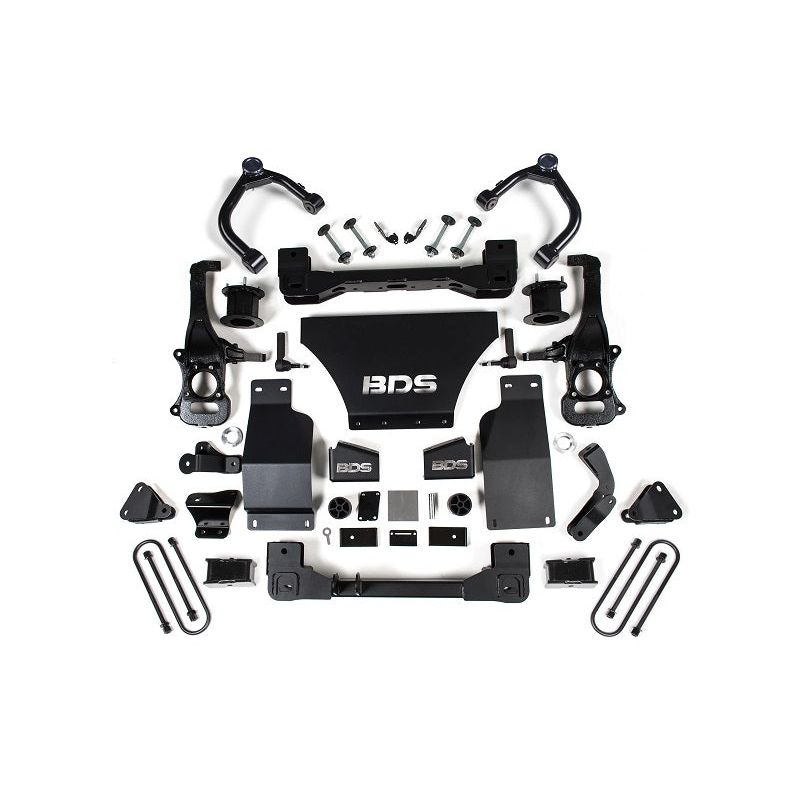

Kit Components

BDS011326 2025 Silverado/Sierra 1500 3 inch Rear Box Kit
BDS021682 2019-2024 Silverado/Sierra 1500 6 inch Front Box Kit 1of2
BDS021683 2019-2024 Silverado/Sierra 1500 6 inch Front Box Kit 2of2
BDS021704 2019-2024 Silverado/Sierra 1500 Knuckle Box 1of2 w/UCA w/ARC (4 inch & 6 inch Compatible)
BDS021705 2019-2024 Silverado/Sierra 1500 Knuckle Box 2of2 w/UCA w/ARC (4 inch & 6 inch Compatible)
BDS121405 2019-2024 GMC Denali 1500 4 inch Adaptive Ride Box Kit
