BDS Suspension | 2 Inch Lift Kit FOX 2.0 Snap Ring Strut Silverado/Sierra 1500 14-18 4WD Aluminum/Stamped Steel Fox 2.0 Performance Shocks | BDS758FSR

Built to outperform, upgrade your 2014-2018 Chevy Silverado and GMC Sierra 1500 with this 2-inch lift kit featuring FOX 2.0 Snap Ring Struts from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 33 inch Tires.

Up front the lift kit includes FOX 2.0 Performance Series strut shocks and heavy duty tubular upper control arms for increased strength. In the rear this kit utilizes a matching set of FOX 2.0 Performance shocks for the smoothest ride.

FOX 2.0 Snap Ring Strut

The mono-tube design's internal reservoir separates the shock oil from the high-pressure, nitrogen-charged gas chamber. The Internal Floating Piston eliminates oil aeration allowing maximum performance from the factory-tuned, precision valving.

A custom-molded spring seat allows the use of your stock spring and mounting hardware. The precision, impact-extruded 2-inch aluminum body is lightweight and rust resistant. Three predetermined preload settings allow a choice of 0-, 1- or 2-inches of lift.

HD Upper Control Arms

Built for strength, performance and increased travel, these upper control arms are ready to bolt-in with most leveled/lifted trucks. They use 1.5 inch OD x .120-wall tubular construction with an indexed ball joint cup to correct the ball joint positioning allowing additional down travel and camber adjustment. At the frame mounting ends are durometer-specific rubber bushings for maintenance-free operation while at the other end a quality greaseable ball joints for smooth, quiet operation and superior durability. Arms are finished in a durable black powder coat with a billet aluminum dust cap ready for installation right out of the box.

• Front Lift Method: Coil-Over
• Rear Lift Method: Stock
• Shocks Included: Yes
• Front Lift Height: 2 inch
• Rear Lift Height: 0 inch

1. Strut compressor required for Installation
2. Snap ring strut kits will reuse factory top mounting hardware AND coil spring
3. 33x12.50 Tires will require weld on steering stop, also it requires inner fender well modification to clear this width Tire

• FOX 2.0 performance series struts offer improved damper performance over factory and are a direct bolt-in replacement
• Performance UCAs increase strength and allow for more suspension travel
• FOX 2.0 performance series Internal Floating Piston rear shocks included
• Factory Protection Plus drivetrain warranty included
• Easy, 100 percent Bolt on installation

Factory Control Arm Type - Aluminum/Stamped Steel

IMPORTANT: GM is producing several knuckle/control arm configurations in 2014-2018 models trucks. Cast Steel control arm equipped models will require the Cast Steel Control Arm kit. Stamped Steel and Aluminum control arm equipped models will require the Aluminum Control Arm kit.

Tire Size: 285 / 70 Tire Size 2: 33 x 12.5 Wheel Diameter: 20 x 9 Wheel Diameter 2: 20 x 94.5

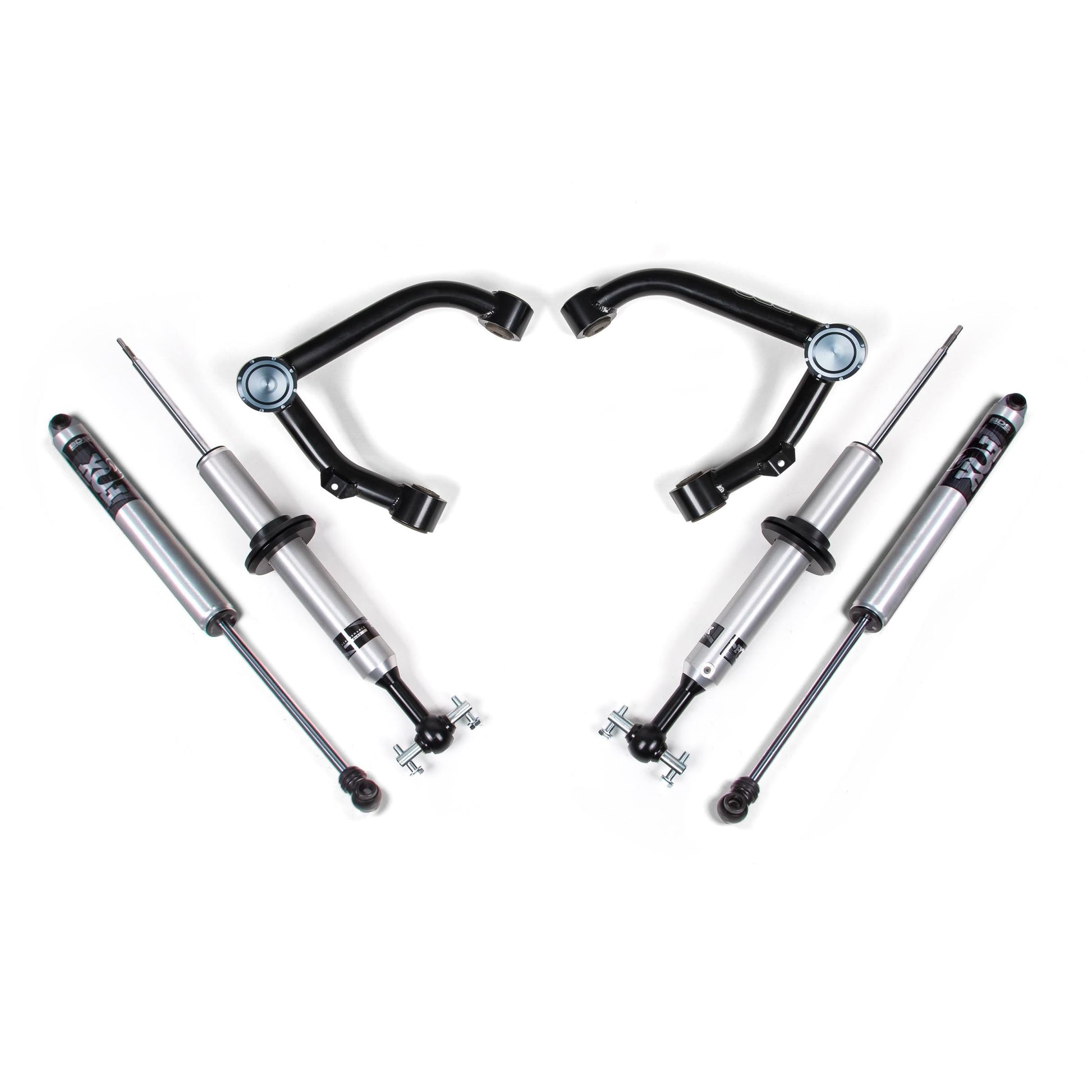

Kit Components:

• Includes one BDS121152, 2014-18 GM 1500 UCA - Aluminum / Stamped Steel CA, UPC Code 658848618897
• Includes two FOX98224719, Fox 2.0 Shock 26.85 x 16.75 x 2- EB1/EB1
• Includes two FOX98562002, 14-18 GM 1500, Front C/O, Snap Ring, PS, 2.0, Internal Floating Piston, 3.8 inch, 0-2 inch Lift, UPC Code 711745603073
