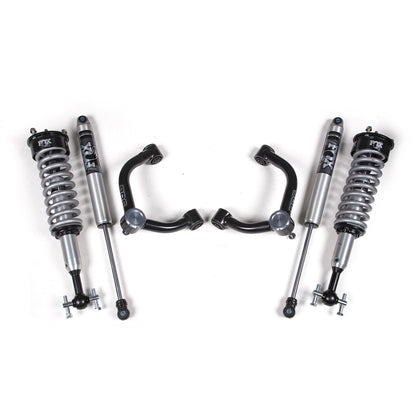

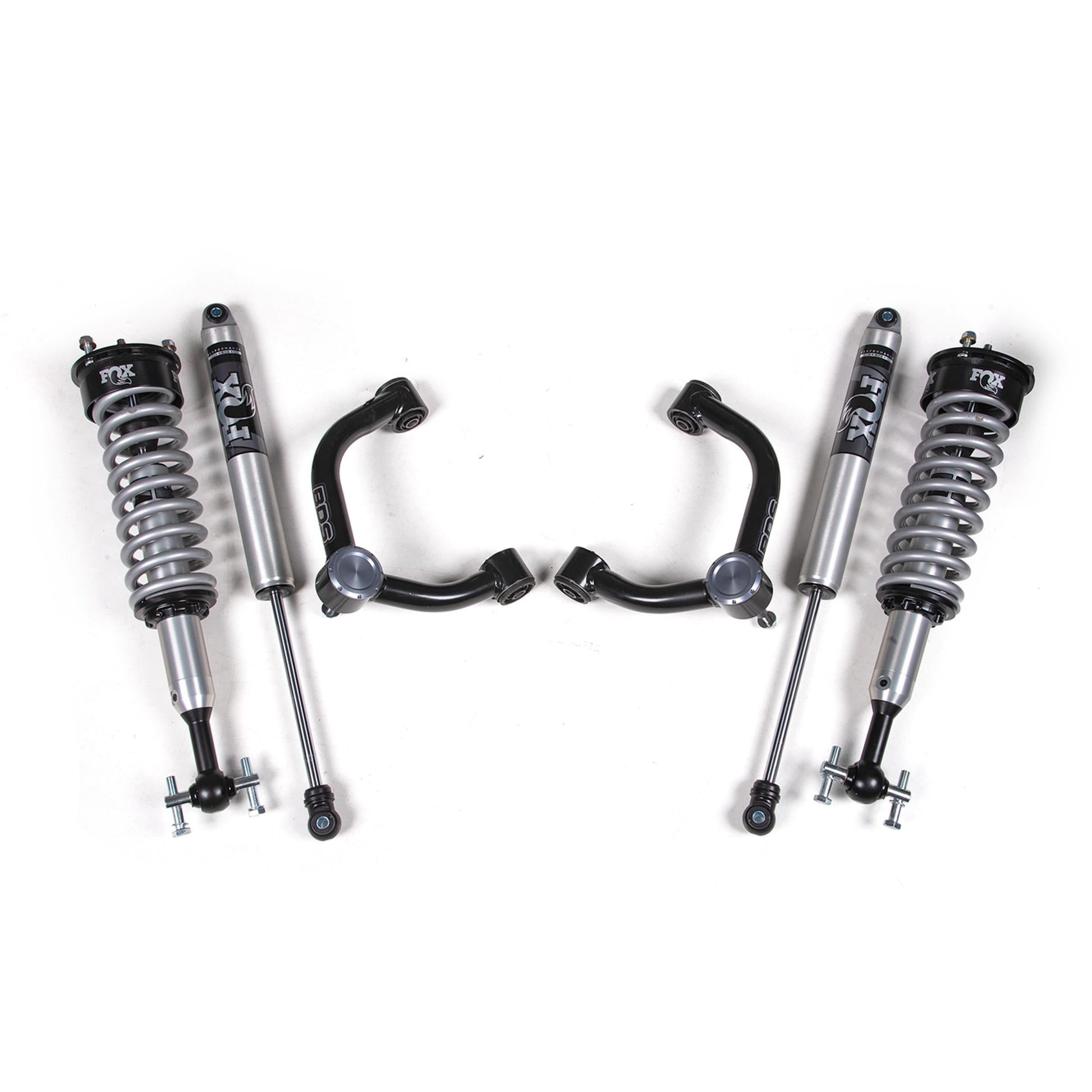

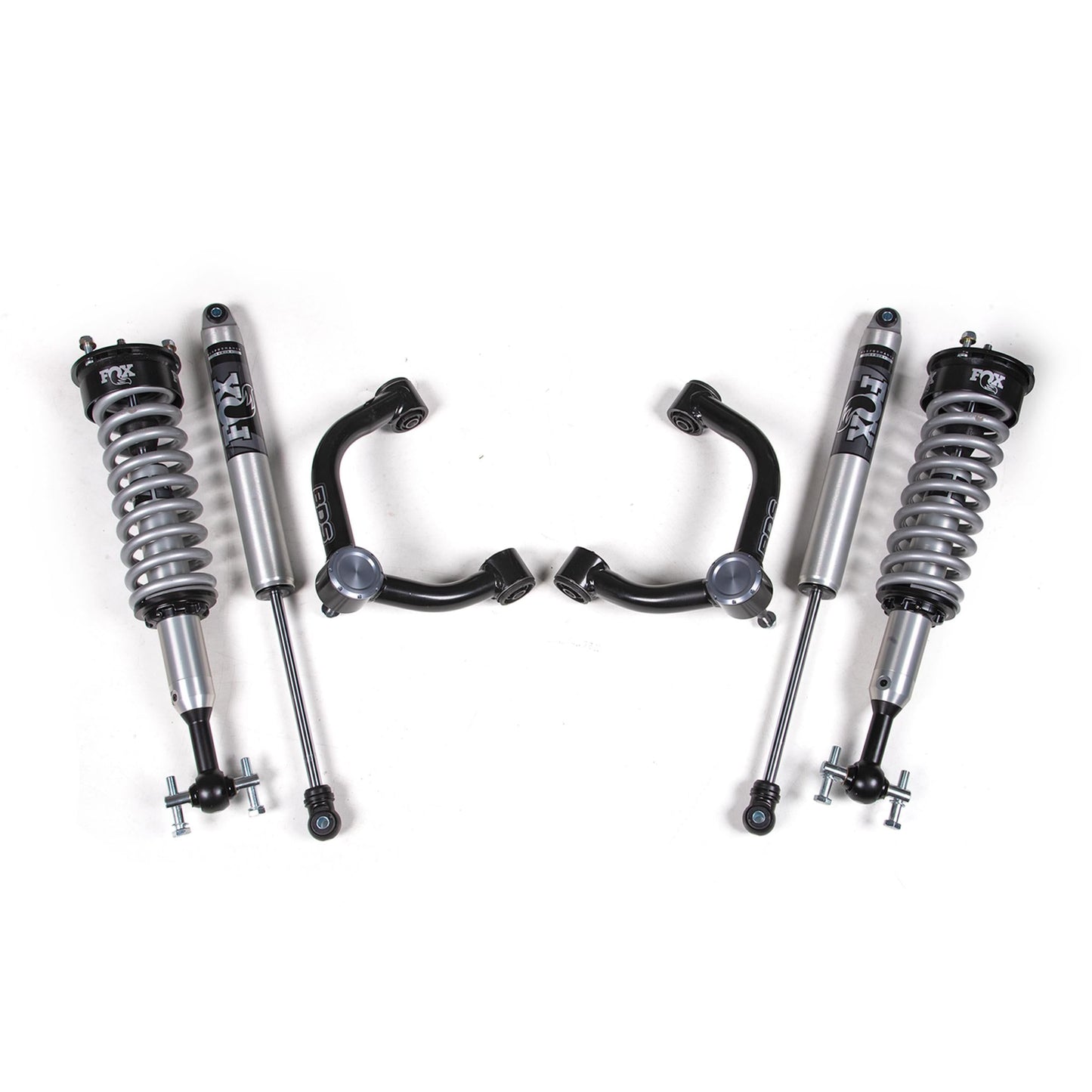

BDS Suspension | 2 Inch Leveling Kit FOX 2.0 Coil-Over Ford F150 21-24 4WD With UCA Headlight Sensor | BDS1913FSL

Level out your 2021-2024 Ford F150 truck and improve the ride with this 2-inch leveling kit featuring FOX 2.0 coil-over shocks from BDS Suspension. Designed to improve stance, performance, and capability, this kit

Includes everything necessary to set your truck up right with clearance for up to 35 inch Tires.

Up front the lift kit

Includes FOX 2.0 Performance Series coil-over shocks and heavy duty tubular upper control arms for increased strength. In the rear this kit utilizes a matching set of FOX 2.0 Performance shocks for the smoothest ride.

FOX 2.0 Coil-Over Shocks

These FOX 2.0 Performance Series coil-overs bring impressive damper performance for great ride on and offroad capability designed as a direct bolt-in replacement for the factory strut.

They feature a 2.0 Inch extruded and machined 6061 T6 aluminum body for better heat dispersion, along with an internal floating piston (Internal Floating Piston) to eliminate oil aeration, FOX's proprietary internals, 5/8 Inch hard chrome plated heat treated alloy shaft and come preloaded with springs and top-plate for easy installation.

HD Upper Control Arms

Built for strength, performance and increased travel, these upper control arms are ready to bolt-in with most leveled/lifted trucks. They use 1.5 Inch OD x .120-wall tubular construction with an indexed ball joint cup to correct the ball joint positioning allowing additional down travel and camber adjustment.

At the frame mounting ends are durometer-specific rubber bushings for maintenance-free operation while at the other end a quality greaseable ball joints for smooth, quiet operation and superior durability.

Arms are finished in a durable black powder coat with a billet aluminum dust cap ready for installation right out of the box.

• Front Lift Method: Coil-Over
• Rear Lift Method: Stock
• Shocks Included: Yes
• Front Lift Height: 2 Inch
• Rear Lift Height: 0 Inch

Works with bar pin lower strut mounts. For eye-style lower strut mounts use 2009-13 model kits.

Control arms with sensors are designed to keep the sensor arm in the stock position (the same position as the OE control arm).

Not designed to work with trucks with CCD.

Do NOT hit the aluminum knuckle on later model trucks with a hammer to separate the ball joint. Use the appropriate ball joint separation tool.

For replacement ball joints, use BDS081203. The ball joint is directional and must be installed with the dot facing either inward or outward on the vehicle, otherwise, damage may occur.

Special Service Tool 204-592 is recommended to dislodge the ball joint.

FOX Performance Internal Floating Piston shocks eliminates oil aeration allowing maximum performance from the factory-tuned, precision valving

HD Upper control arms provide superior strength and proper alignment

Adjustable height to fine tune

Provides level stance from front to rear

Easy, 100 percent Bolt On installation

FOX shocks are fully serviceable and resistant to corrosion and harsh environments.

Adaptive Headlights

This is a factory option where the headlamp beams move in the same direction as the steering wheel, illuminating the path ahead. If you are unsure if equipped, look at your upper control arms for a sensor mounted to them.

Kit Components:

• Includes one BDS123262, 2021-2024 Ford F150 Upper Control Arm Box Kit W/ Sensor, UPC Code 711745604131
• Includes two FOX98502146, 2021-2024 Ford F150 4wd Front Coilover, PS, 2.0, Internal Floating Piston, 4.9 Inch, 0-2 Inch Lift
• Includes two FOX98524265, 2021-2024 Ford F150 4wd Rear, PS, 2.0, Internal Floating Piston, 10.6 Inch, 0-1 Inch Lift
