BDS Suspension | 2.5 Inch Lift Kit Jeep CJ5/CJ7 82-86 NX2 Nitro Shocks | BDS405H

Designed to improve stance, performance, and capability. BDS Suspension has designed this 2.5-inch lift kit for your 1982-1986 Jeep CJ5 and CJ7. This kit includes everything necessary to set your truck up right with clearance for up to 31 inch Tires.

This 2.5-inch lift kit includes front and rear Glide-Ride leaf springs with new u-bolts and round out these kits with your choice of specially tuned NX2 nitro series gas shocks or FOX 2.0 Internal Floating Piston performance series gas shocks to offer improved damper performance.

Glide-Ride Leaf Springs

Built to outperform, BDS engineered the Glide-Ride leaf springs into a multi-leaf progressive spring rate design that provides a smooth ride with any load. This is accomplished with an exclusive triple-stage leaf spring design.

These spring feature tapered leafs, anti-friction pads, bolt style leaf alignment clamps and a full military wrap to protect your spring eyes from the rocks. Upgrading to BDS Glide-Ride leaf springs will provide flexibility throughout the suspension cycle.

• Front Lift Method: Leaf Spring
• Rear Lift Method: Leaf Spring
• Shocks Included: Yes
• Front Lift Height: 2.5 inch
• Rear Lift Height: 2.5 inch

1. Vehicles equipped with the optional Dana 44 axle will require 04005 U-bolts (Qty. 4) listed in the accessories.
2. Shackle bushing kit 074002 listed in the accessories is highly recommended.

• Easy, 100 percent Bolt-on installation
• Glideride leaf springs to provide full lift height and increased capacity
• Standard NX2 Nitro shocks with vehicle-specific valving for better control

Shock Option NX2 Nitro Series

• Nitrogen-charged
• Twin-tube design
• 10-stage velocity-sensitive valving
• Dual-welded ends for increased strength
• 1-3/8-inch high-flow piston
• Self-lubricating seals
• Silver powder coat finish

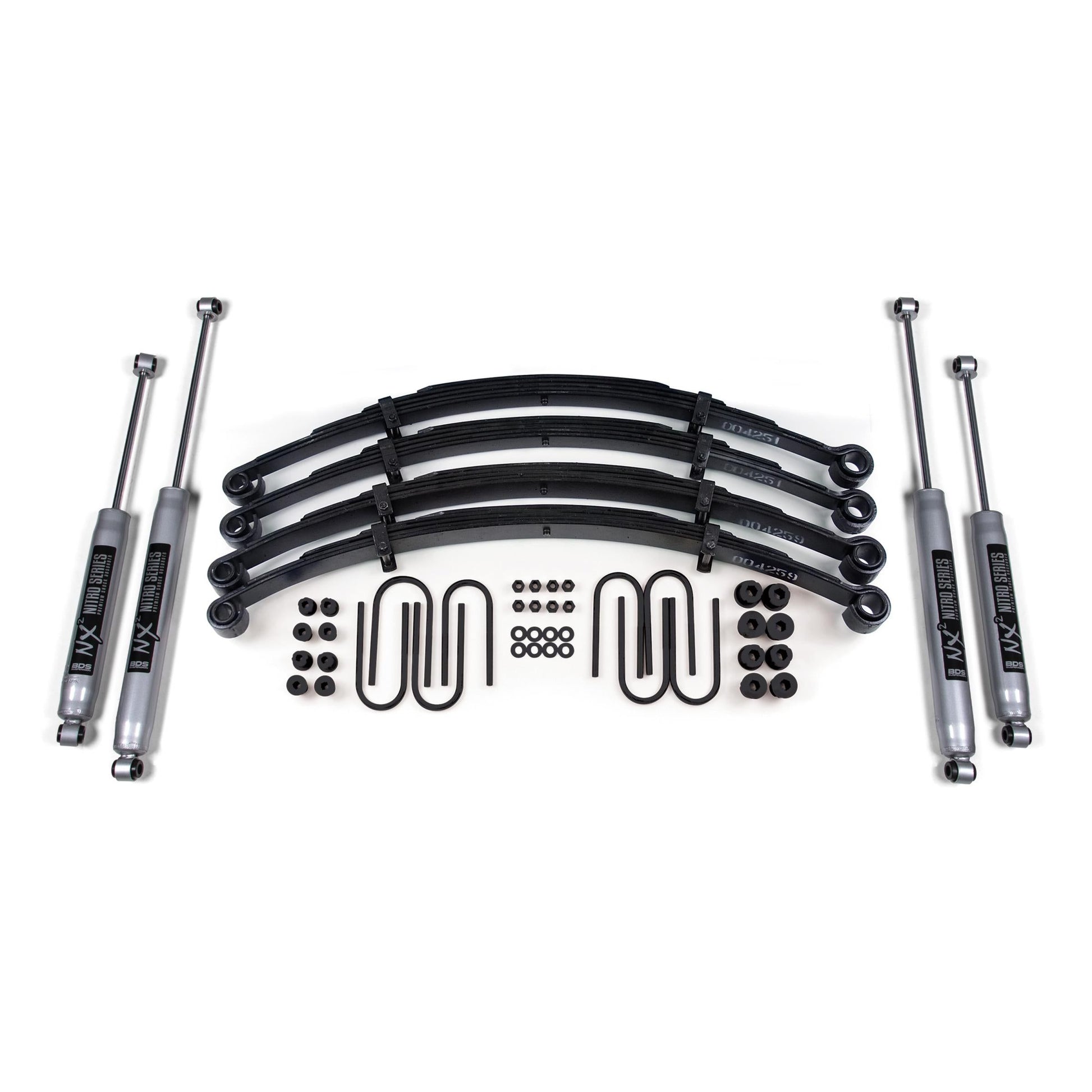

Kit Components:

• Includes two BDS004251, 76-86 Jeep CJ 2.5 InchFront Spring, UPC Code 658848611478
• Includes two BDS004259, 76-86 Jeep CJ 2.5 InchRear Spring, UPC Code 658848611508
• Includes one BDS014250, 76-86 Jeep CJ 2.5 InchBox Kit, UPC Code 658848613946
• Includes two BDS85900, Shock- 21.70 x 13.40 x 2 - EB1/EB1, UPC Code 711745609969
• Includes two BDS85950, Shock- 22.95 x 14.65 x 2 - EB1/EB1, UPC Code 711745610033
