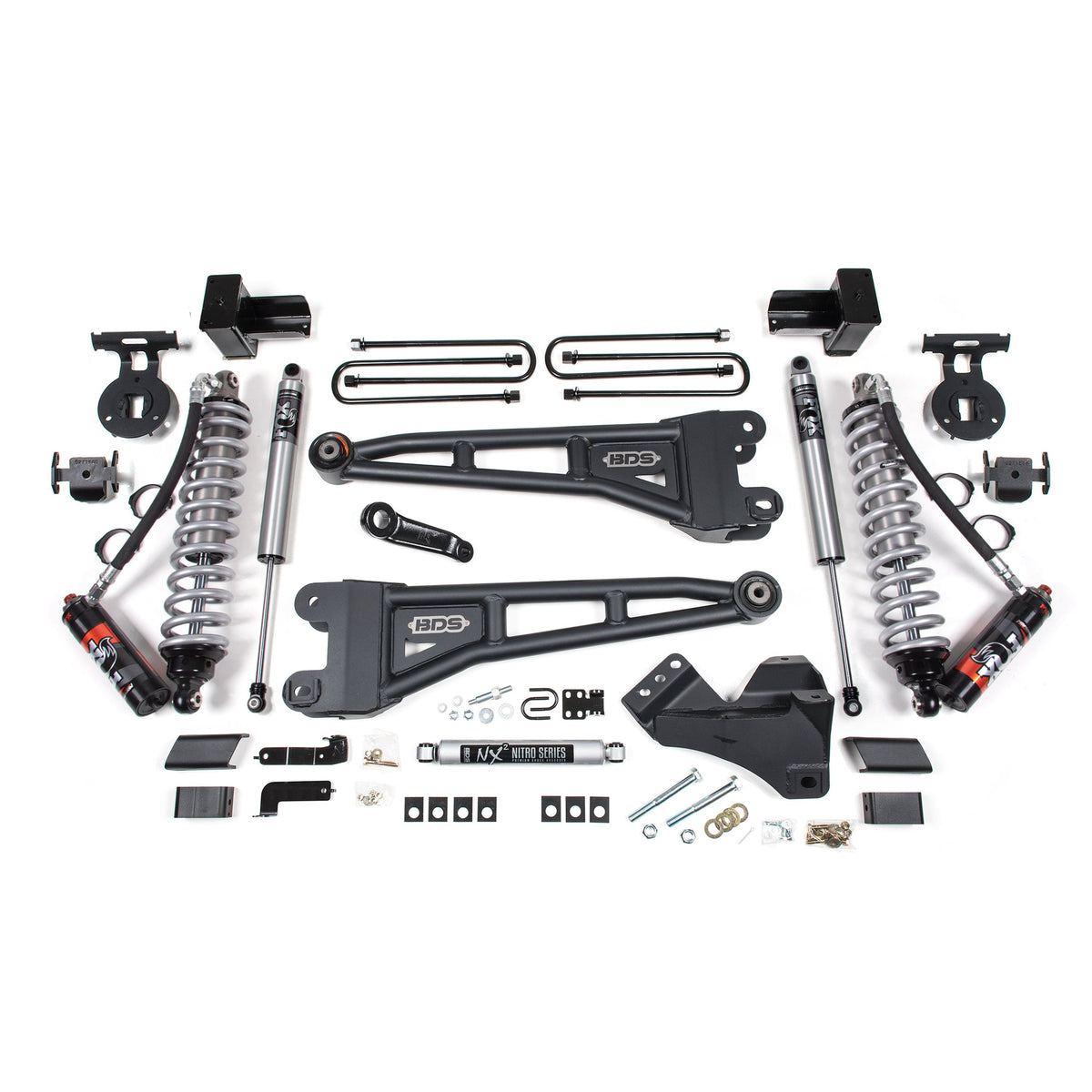

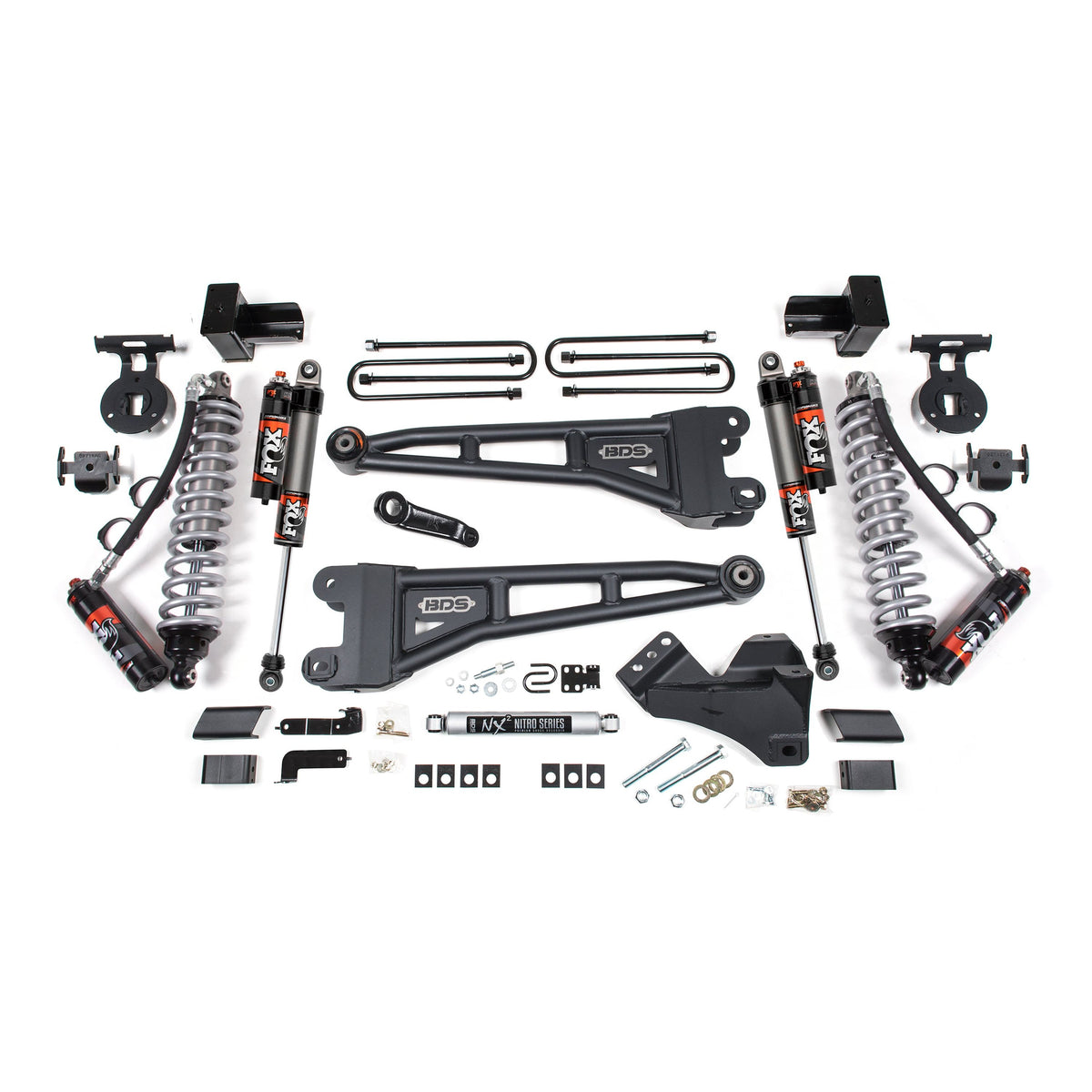

BDS | 5 Inch Lift Kit w/ Radius Arm | FOX 2.5 Performance Elite Coilover Conversion | Ford F350 Super Duty DRW (2023–2027) 4WD | Diesel

BDS warranty coverage is for the original retail purchaser with proof of purchase. BDS hard parts and bushings have lifetime replacement coverage; finish and normal wear are excluded.

BDS NX2 and BDS/FOX Performance Series shocks have limited lifetime coverage excluding normal wear and oil seals. At BDS’s discretion, qualifying leaking seals less than two years old may be considered for repair or replacement.

FOX proprietary shocks and coilovers follow FOX warranty terms rather than the BDS warranty. Qualifying leaking seals less than one year old may be considered; other FOX concerns follow the FOX service process.

Properly maintained ball joints and tie-rod ends less than three years old may qualify, subject to the manufacturer’s conditions.

Remedies are repair or replacement at BDS’s discretion. Eligible warranty ground shipping is covered; removal, installation, expedited freight and consequential costs are excluded.

Read the official BDS warranty and FOX service terms.

FOX 2.5 Performance Elite — BDS2261PES

FOX 2.5 Performance Series HTO — BDS2261PPS

Important fitment notes

1. Fits dual rear wheel F-350's.
2. Ford recommends the replacement of the pitman arm nut after each time it has been removed.
3. Use a small pitman arm puller to remove the drag link joint and steering stabilizer taper.
4. If your truck is equipped with a 2-piece rear driveshaft, a Carrier Bearing Drop Kit may be required: BDS123402.
5. Larger tires on stock wheel are not recommended due to interference with brake line, radius arm and sway bar. Use recommended specs listed in wheel and tire fitment section.
6. Minor trimming may be necessary for clearance of 37x12.50 tires on certain wheel setups.
7. Installation requires a torque wrench capable of 406 ft-lbs.
8. Vehicles with radius arm mounted ride height sensors will require BDS123303
