BDS | 5.5 Inch Lift Kit w/ 4-Link | Ram 3500 (2013–2018) 4WD | Gas

Name: BDS | 5.5 Inch Lift Kit w/ 4-Link | Ram 3500 (2013–2018) 4WD | Gas
Brand: BDS SUSPENSION
SKU: BDS1608FPE
Price: 8061.94 CAD
Availability: InStock

SKU: SKU: BDS1608FPE

Fits your vehicle

21% OFF

$8,061.94

~~$10,226.72~~ $8,061.94

Sale Sold out

Shipping calculated at checkout.

⚠ No Stock — Available to Order

Estimated lead time: 3–10 weeks. Lead times may vary.

Product variants

Quantity

Free Shipping in Canada over $350!
Expedited shipping across Canada!
Expert Fitment & Product Support
CALL/TEXT 416-624-1357

View full details

Description

Built to outperform, BDS Suspension engineered a 5.5-inch lift kit with 4-Link conversion for your 2013-2018 RAM 3500 gas powered truck that will surely impress. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 37" tires.

Up front the lift kit includes gas-specific Pro-Ride coil springs, 4-Link control arms with conversion mounts, forged drop pitman arm and track bar bracket for steering correction, bump stops, brake line brackets and precision tuned NX2 or FOX 2.0 nitrogen charged shocks.

In the rear this kit utilizes a high-strength fabricated lift block, longer u-bolts and a matching set of NX2 Nitro or FOX 2.0 Performance shocks.

4-Link Conversion

Convert the factory stamped steel radius arms over to the BDS 4-link to optimize suspension geometry for better handling characteristics while adding strength and stability. This bolt-on upgrade utilizes high-strength 1/4-inch steel brackets that allow mounting of HD upper and lower control arms to correct axle positioning while limiting caster change throughout wheel travel.

Pro-Ride Coil Springs

A pair of full-length, gas-specific, progressive rate Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains.

Steering Correction

To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.

5 Inch Block Kit / FOX 2.5 Performance Elite — BDS1608FPE

Front Lift Method : Coil Spring
Front Lift Height : 5.5"
Rear Lift Method : Block
Rear Lift Height : 5"
Shocks Included : Yes
Lift Height : 4-5.5"

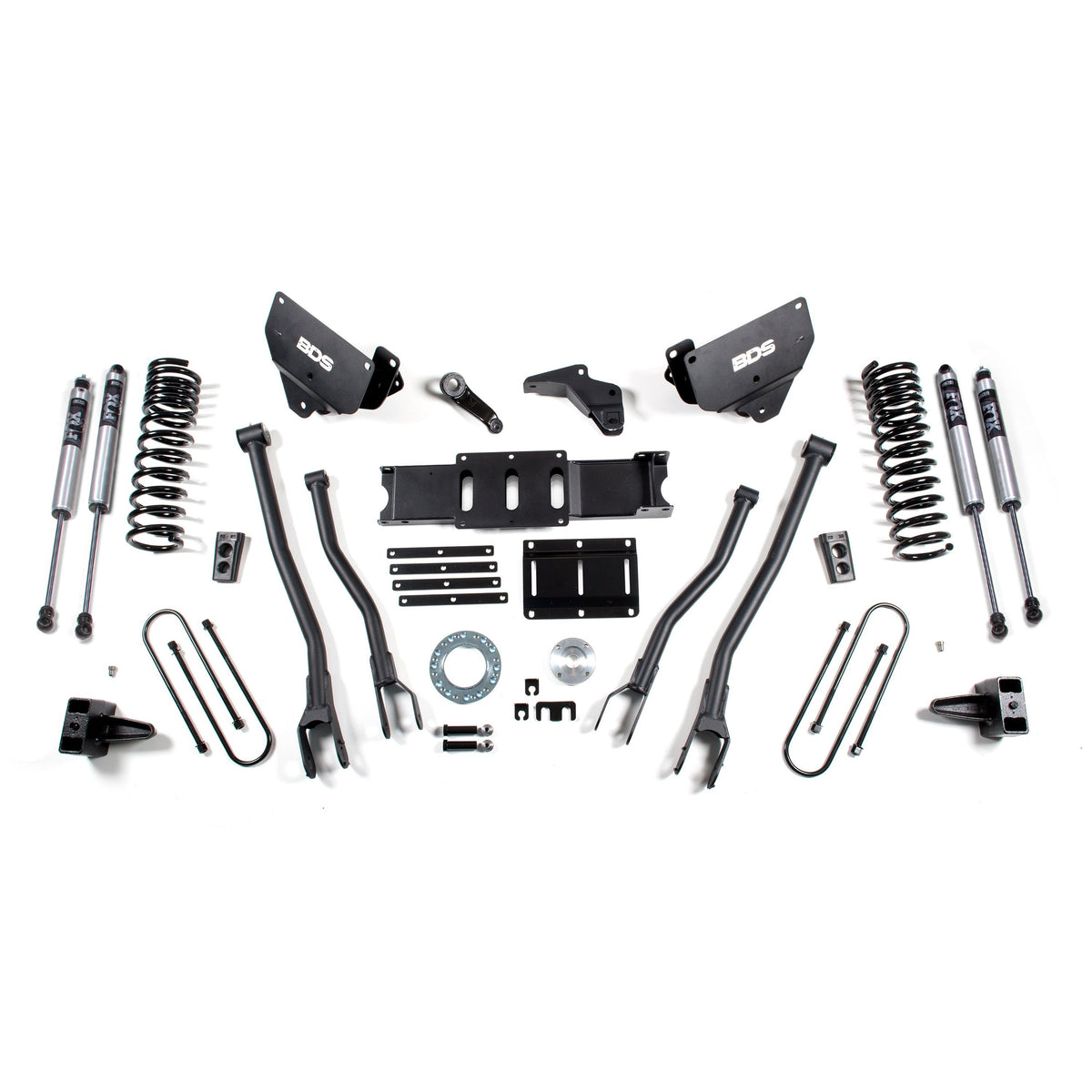

5 Inch Block Kit / FOX 2.0 Performance Series — BDS1608FS

Front Lift Method : Coil Spring
Front Lift Height : 5.5"
Rear Lift Method : Block
Rear Lift Height : 5"
Shocks Included : Yes
Lift Height : 4-5.5"

5 Inch Block Kit / NX2 Nitro Series — BDS1608H

Front Lift Method : Coil Spring
Front Lift Height : 5.5"
Rear Lift Method : Block
Rear Lift Height : 5"
Shocks Included : Yes
Lift Height : 4-5.5"

Leaf Springs / FOX 2.5 Performance Elite — BDS1620FPE

Front Lift Method : Coil Spring
Front Lift Height : 5.5"
Rear Lift Method : Leaf Spring
Rear Lift Height : 4.5"
Shocks Included : Yes
Lift Height : 4-5.5"

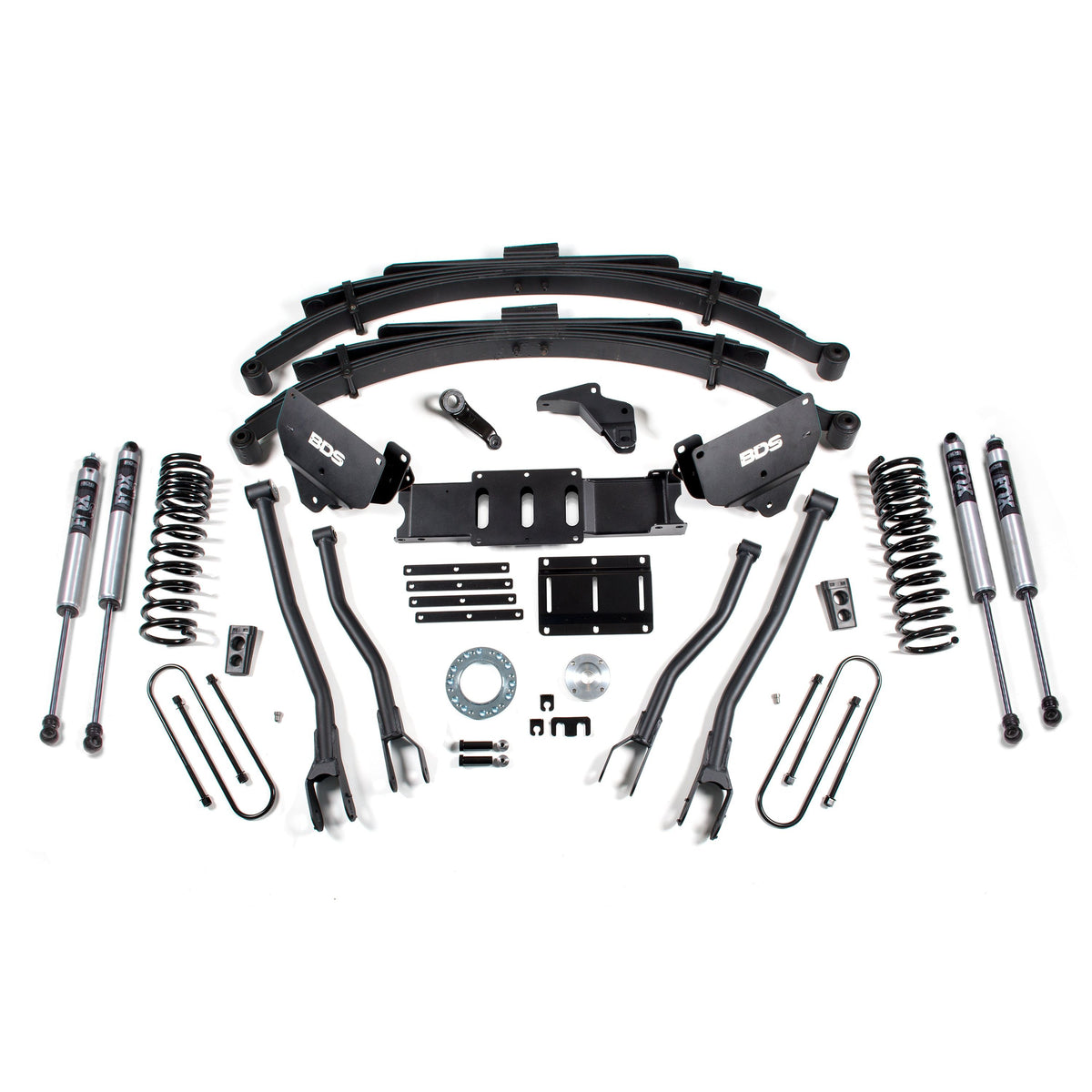

Leaf Springs / FOX 2.0 Performance Series — BDS1620FS

Front Lift Method : Coil Spring
Front Lift Height : 5.5"
Rear Lift Method : Leaf Spring
Rear Lift Height : 4.5"
Shocks Included : Yes
Lift Height : 4-5.5"

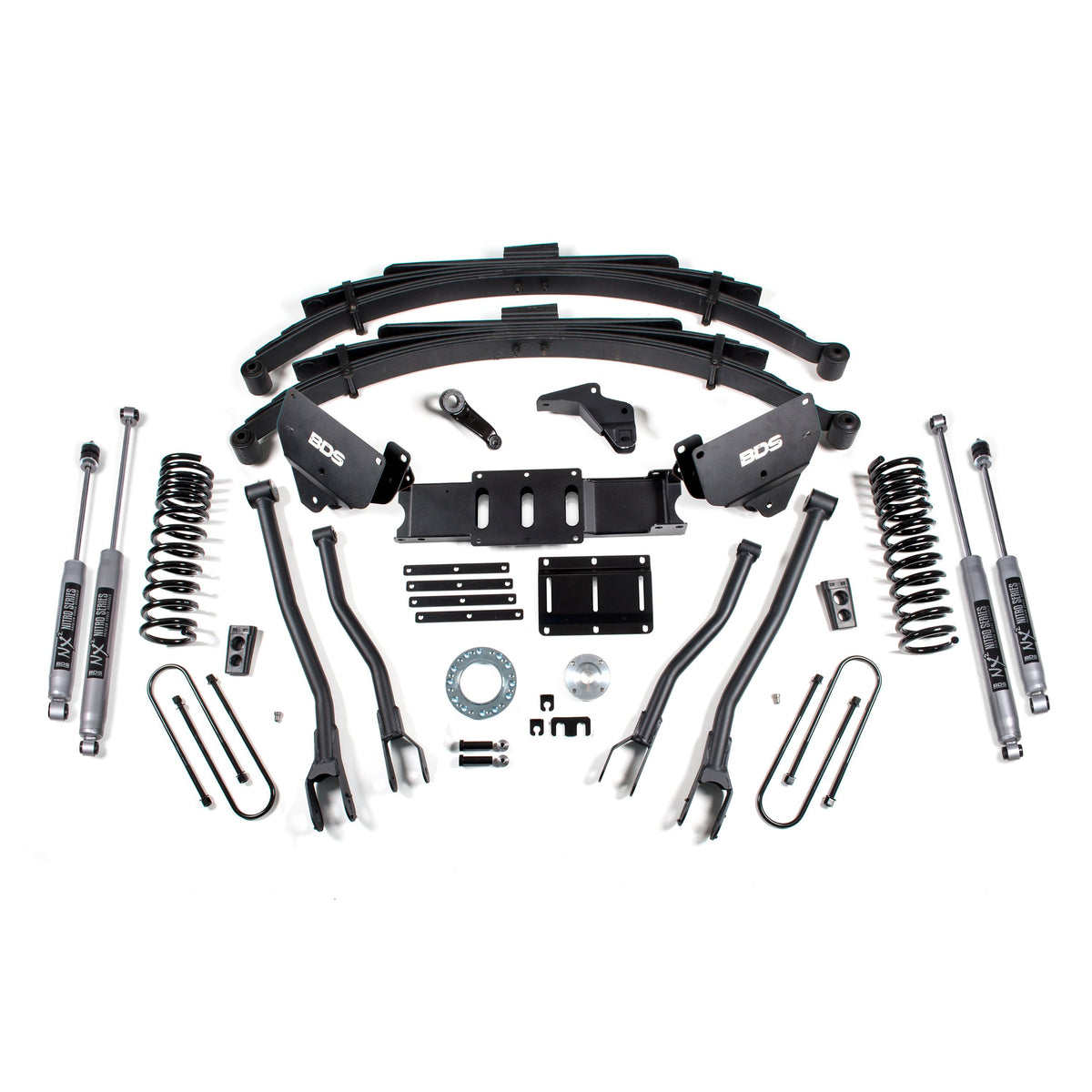

Leaf Springs / NX2 Nitro Series — BDS1620H

Front Lift Method : Coil Spring
Front Lift Height : 5.5"
Rear Lift Method : Leaf Spring
Rear Lift Height : 4.5"
Shocks Included : Yes
Lift Height : 4-5.5"

4 Inch Block Kit / FOX 2.5 Performance Elite — BDS1780FPE

Front Lift Method : Coil Spring
Front Lift Height : 5.5"
Rear Lift Method : Block
Rear Lift Height : 4"
Shocks Included : Yes
Lift Height : 4-5.5"

4 Inch Block Kit / FOX 2.0 Performance Series — BDS1780FS

Front Lift Method : Coil Spring
Front Lift Height : 5.5"
Rear Lift Method : Block
Rear Lift Height : 4"
Shocks Included : Yes
Lift Height : 4-5.5"

4 Inch Block Kit / NX2 Nitro Series — BDS1780H

Front Lift Method : Coil Spring
Front Lift Height : 5.5"
Rear Lift Method : Block
Rear Lift Height : 4"
Shocks Included : Yes
Lift Height : 4-5.5"

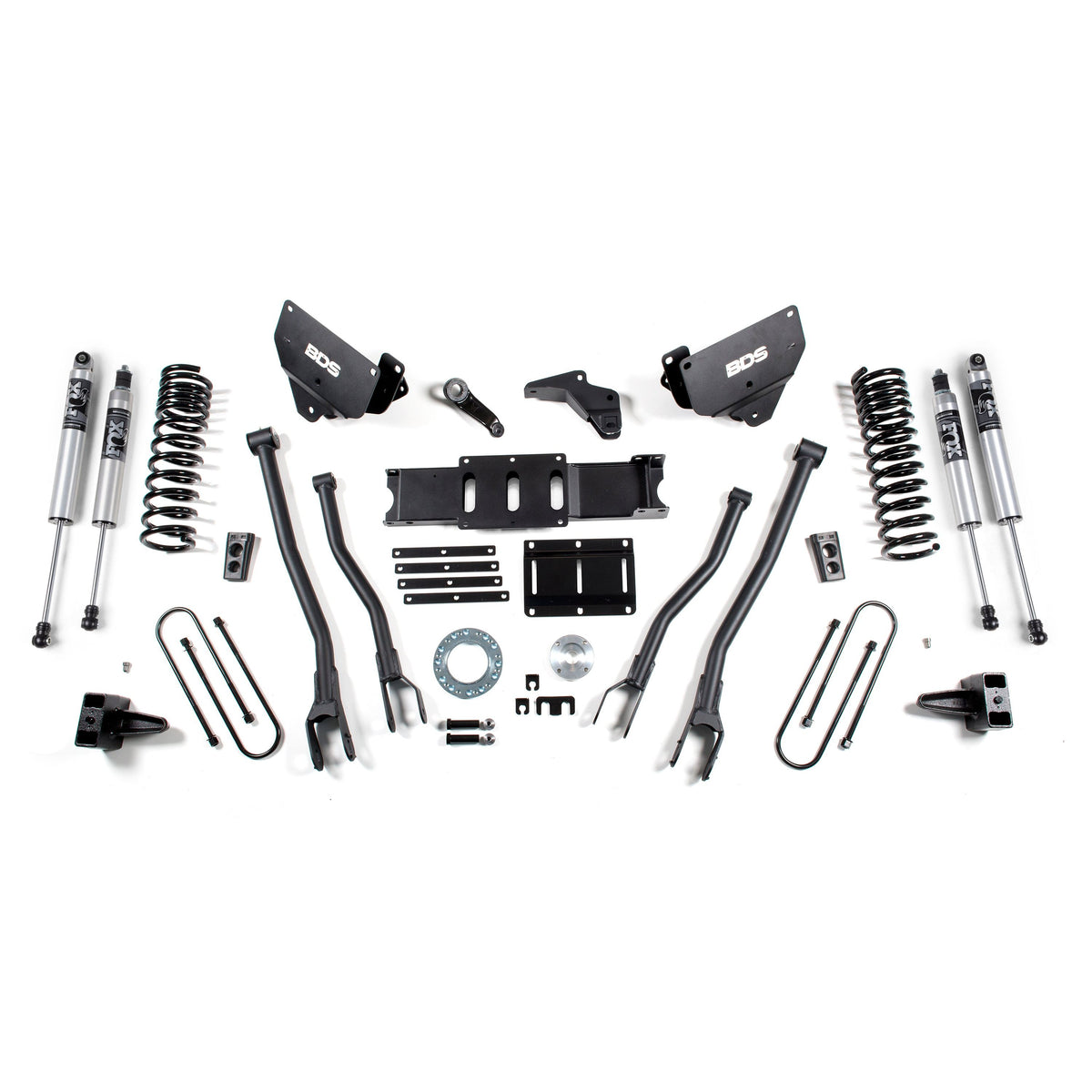

5 Inch Block Kit / FOX 2.5 Performance Series HTO — BDS1608PS

Front Lift Method : Coil Spring
Front Lift Height : 5.5"
Rear Lift Method : Block
Rear Lift Height : 5"
Shocks Included : Yes
Lift Height : 4-5.5"

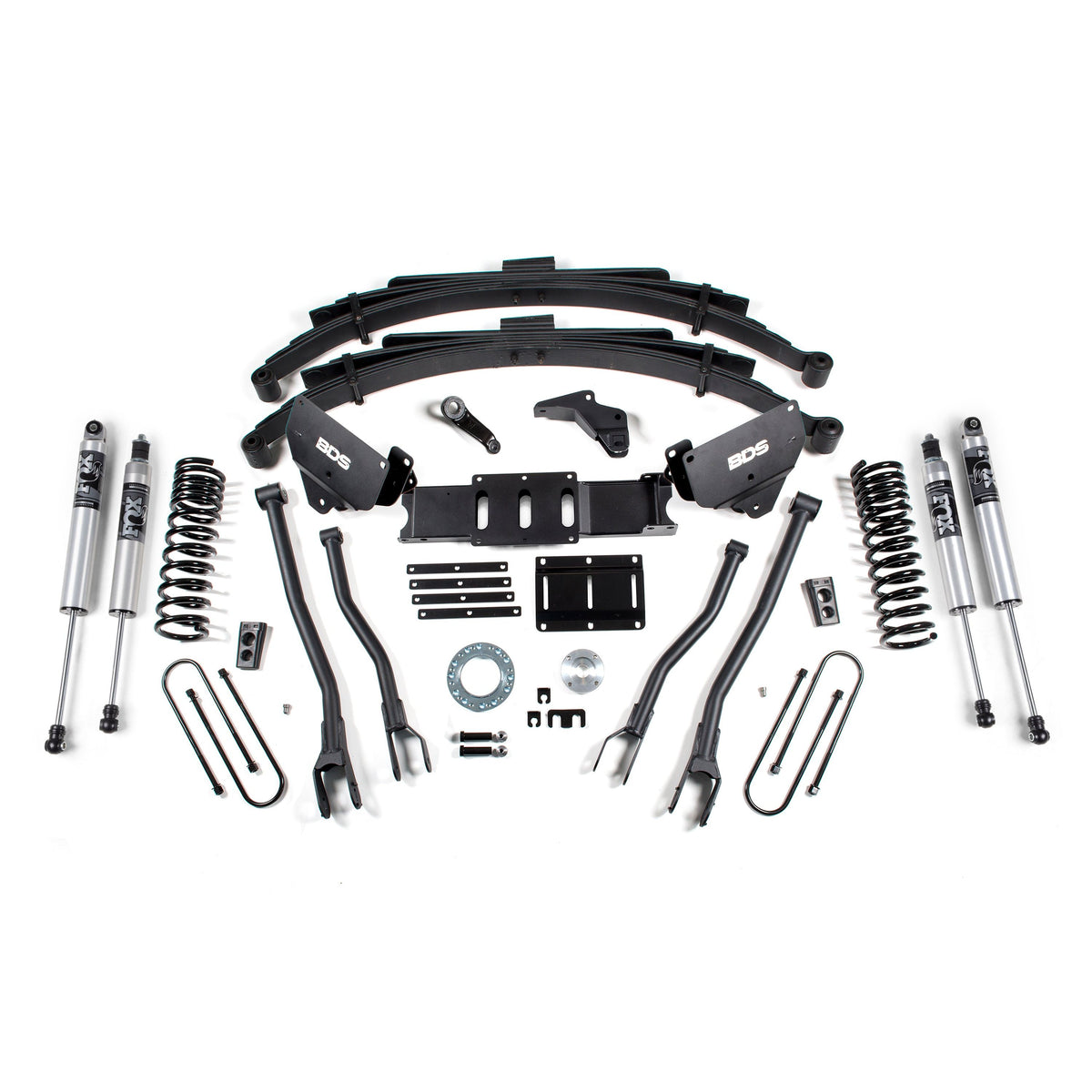

Leaf Springs / FOX 2.5 Performance Series HTO — BDS1620PS

Front Lift Method : Coil Spring
Front Lift Height : 5.5"
Rear Lift Method : Leaf Spring
Rear Lift Height : 4.5"
Shocks Included : Yes
Lift Height : 4-5.5"

4 Inch Block Kit / FOX 2.5 Performance Series HTO — BDS1780PS

Front Lift Method : Coil Spring
Front Lift Height : 5.5"
Rear Lift Method : Block
Rear Lift Height : 4"
Shocks Included : Yes
Lift Height : 4-5.5"

Supplemental Installation Documents

BDS installation supplement 1

Estimated installation time: 7-9 hrs.

Installation difficulty: Difficult.

Special tools: Step Drill Bit, Drill / Bit Set, Pitman Arm Puller, Welding Equipment.

➡️ Warranty

BDS warranty coverage is for the original retail purchaser with proof of purchase. BDS hard parts and bushings have lifetime replacement coverage; finish and normal wear are excluded.

BDS NX2 and BDS/FOX Performance Series shocks have limited lifetime coverage excluding normal wear and oil seals. At BDS’s discretion, qualifying leaking seals less than two years old may be considered for repair or replacement.

FOX proprietary shocks and coilovers follow FOX warranty terms rather than the BDS warranty. Qualifying leaking seals less than one year old may be considered; other FOX concerns follow the FOX service process.

Properly maintained ball joints and tie-rod ends less than three years old may qualify, subject to the manufacturer’s conditions.

Remedies are repair or replacement at BDS’s discretion. Eligible warranty ground shipping is covered; removal, installation, expedited freight and consequential costs are excluded.

Read the official BDS warranty and FOX service terms.

➡️ Shipping & Returns

Shipping & Refund Policy

Shipping:
We ship across Canada. Orders are processed within 1–2 business days. Delivery within Canada typically takes 3–10 business days depending on location and carrier. Tracking information will be provided once your order ships.

Refunds & Returns:
Returns are accepted within 30 days of delivery. Items must be unused and in original packaging. Please review our full return policy for more details.

Damaged or Incorrect Items:
If you receive a damaged or incorrect item, please contact us within 5 days of delivery. Call or text 416-624-1357 or email sales@Niagarajeeps.ca so we can resolve the issue quickly.

➡️ Fitment Table
