BDS | 4 Inch Lift Kit w/ Radius Arm | Ram 3500 (2019–2024) 4WD | Gas

Name: BDS | 4 Inch Lift Kit w/ Radius Arm | Ram 3500 (2019–2024) 4WD | Gas
Brand: BDS SUSPENSION
SKU: BDS1700FPE
Price: 7762.58 CAD
Availability: InStock

SKU: SKU: BDS1700FPE

Fits your vehicle

21% OFF

$7,762.58

~~$9,846.98~~ $7,762.58

Sale Sold out

Shipping calculated at checkout.

⚠ No Stock — Available to Order

Estimated lead time: 3–10 weeks. Lead times may vary.

Product variants

Quantity

Free Shipping in Canada over $350!
Expedited shipping across Canada!
Expert Fitment & Product Support
CALL/TEXT 416-624-1357

View full details

Description

Raise your RAM 3500 gas powered truck to the next heights with this 4-inch radius arm lift kit from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 37" tires.

Up front the lift kit includes gas-specific Pro-Ride coil springs, heavy-duty replacement radius arms, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets and precision tuned NX2 or FOX 2.0 nitrogen charged shocks.

At this height, the transfer case needs to be indexed to allow use of the factory front driveshaft so an indexing ring and new transmission crossmember are supplied. In the rear this kit utilizes a high-strength fabricated lift block, longer u-bolts and a matching set of NX2 Nitro or FOX 2.0 Performance shocks.

HD Radius Arms

In place of the factory stamped steel radius arms BDS supplies a pair of high-strength tubular radius arms. These arms mount into the factory location and offer caster adjustment for a wide range of lift heights along with an OE-style rubber bushing at the frame mount for smooth, quiet, service-free operation.

Pro-Ride Coil Springs

A pair of full-length, gas-specific, progressive rate Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains.

Steering Correction

To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.

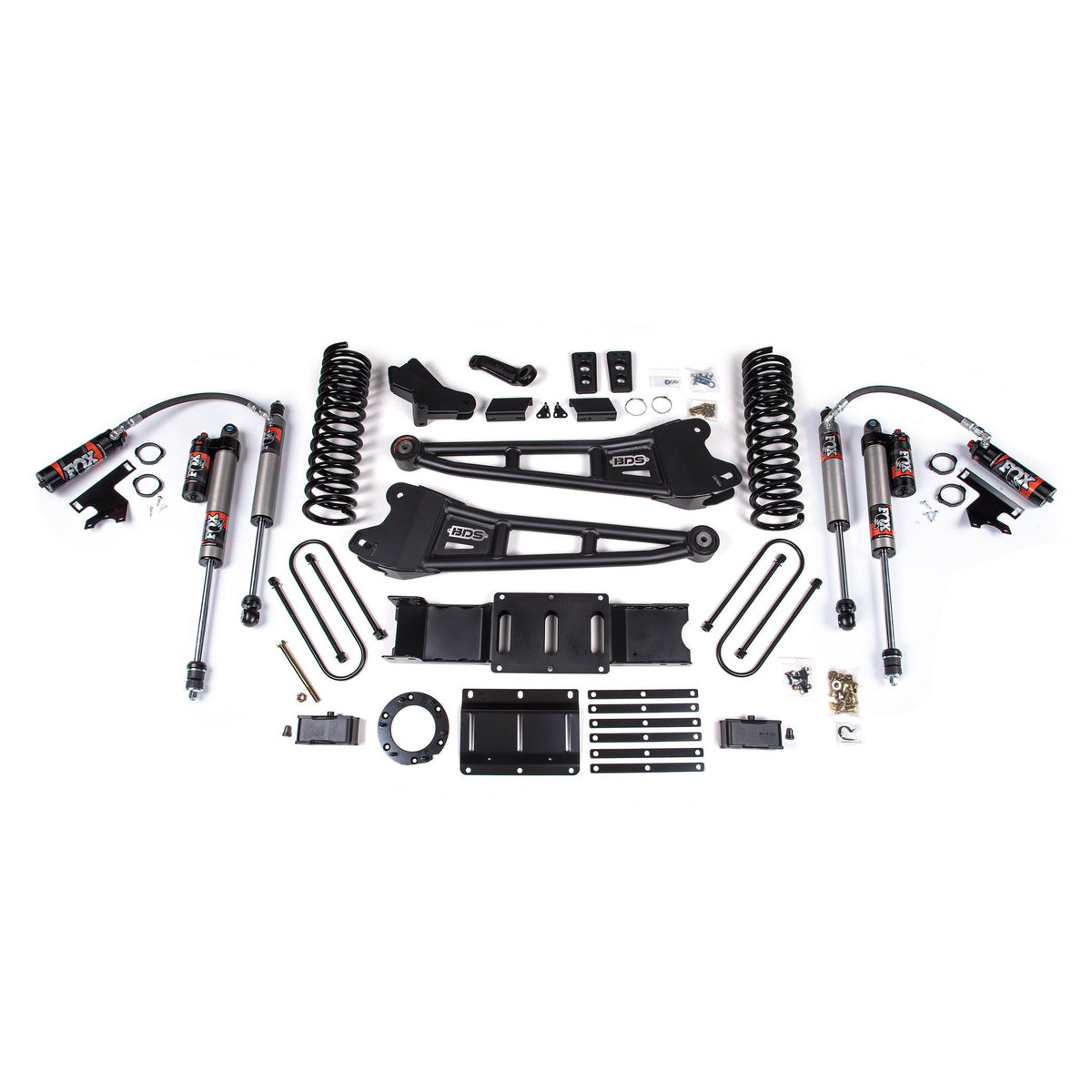

Without Factory Rear Overload Leaf / FOX 2.5 Performance Elite — BDS1700FPE

Front Lift Method : Coil Spring
Front Lift Height : 4"
Rear Lift Method : Block
Rear Lift Height : 3"
Shocks Included : Yes
Lift Height : 4-5.5"

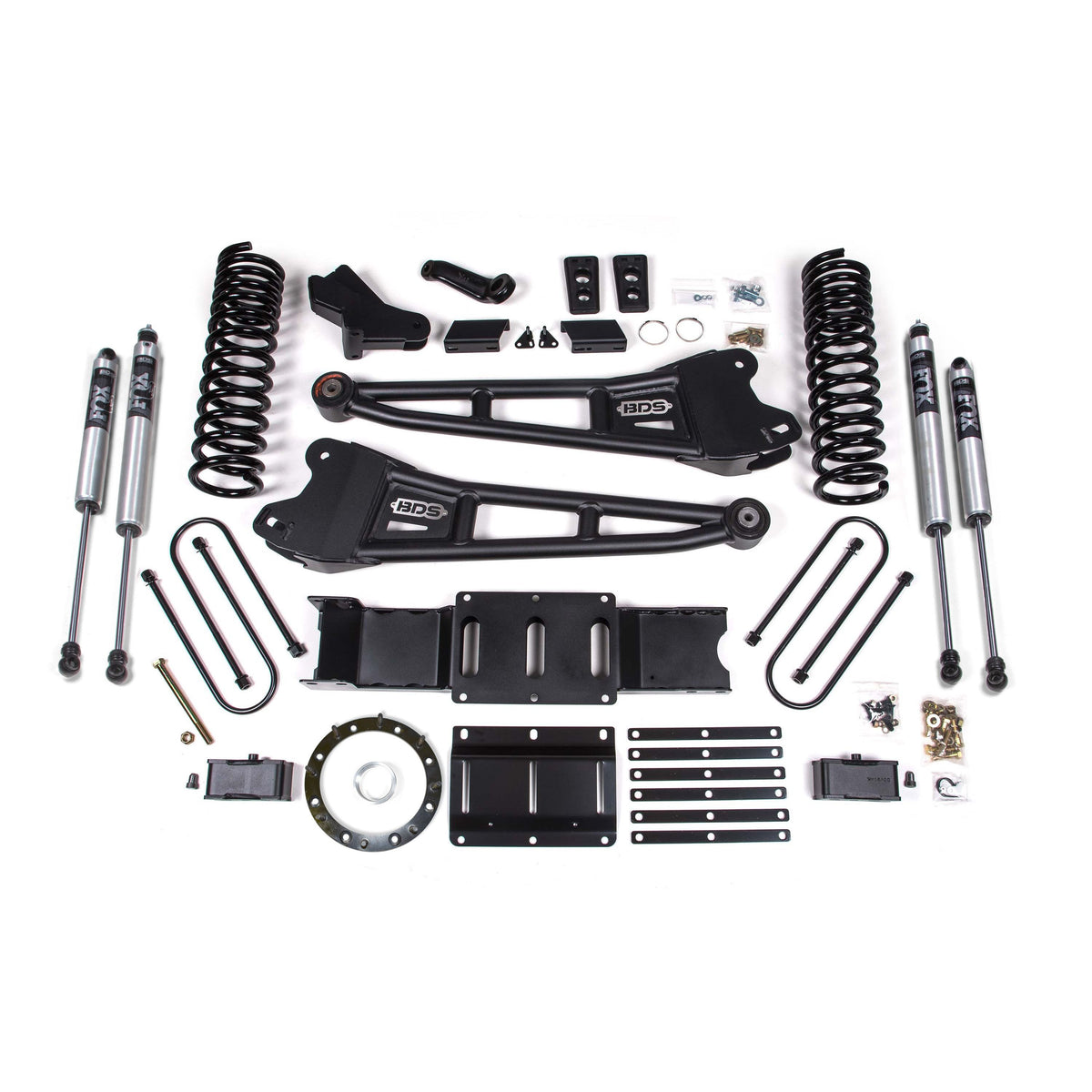

Without Factory Rear Overload Leaf / FOX 2.0 Performance Series — BDS1700FS

Front Lift Method : Coil Spring
Front Lift Height : 4"
Rear Lift Method : Block
Rear Lift Height : 3"
Shocks Included : Yes
Lift Height : 4-5.5"

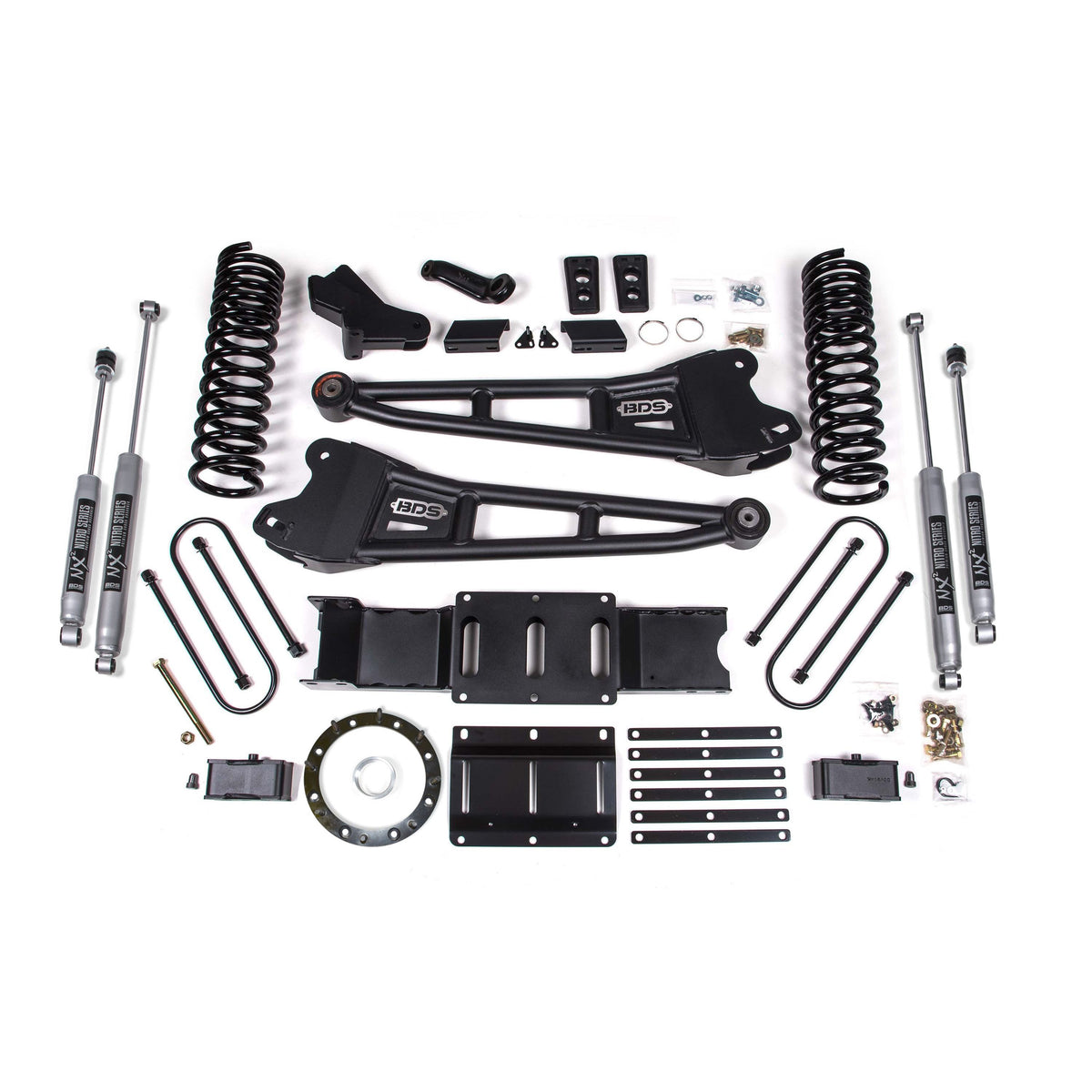

Without Factory Rear Overload Leaf / NX2 Nitro Series — BDS1700H

Front Lift Method : Coil Spring
Front Lift Height : 4"
Rear Lift Method : Block
Rear Lift Height : 3"
Shocks Included : Yes
Lift Height : 4-5.5"

With Factory Rear Overload Leaf / FOX 2.5 Performance Elite — BDS1701FPE

Front Lift Method : Coil Spring
Front Lift Height : 4"
Rear Lift Method : Block
Rear Lift Height : 3"
Shocks Included : Yes
Lift Height : 4-5.5"

With Factory Rear Overload Leaf / FOX 2.0 Performance Series — BDS1701FS

Front Lift Method : Coil Spring
Front Lift Height : 4"
Rear Lift Method : Block
Rear Lift Height : 3"
Shocks Included : Yes
Lift Height : 4-5.5"

With Factory Rear Overload Leaf / NX2 Nitro Series — BDS1701H

Front Lift Method : Coil Spring
Front Lift Height : 4"
Rear Lift Method : Block
Rear Lift Height : 3"
Shocks Included : Yes
Lift Height : 4-5.5"

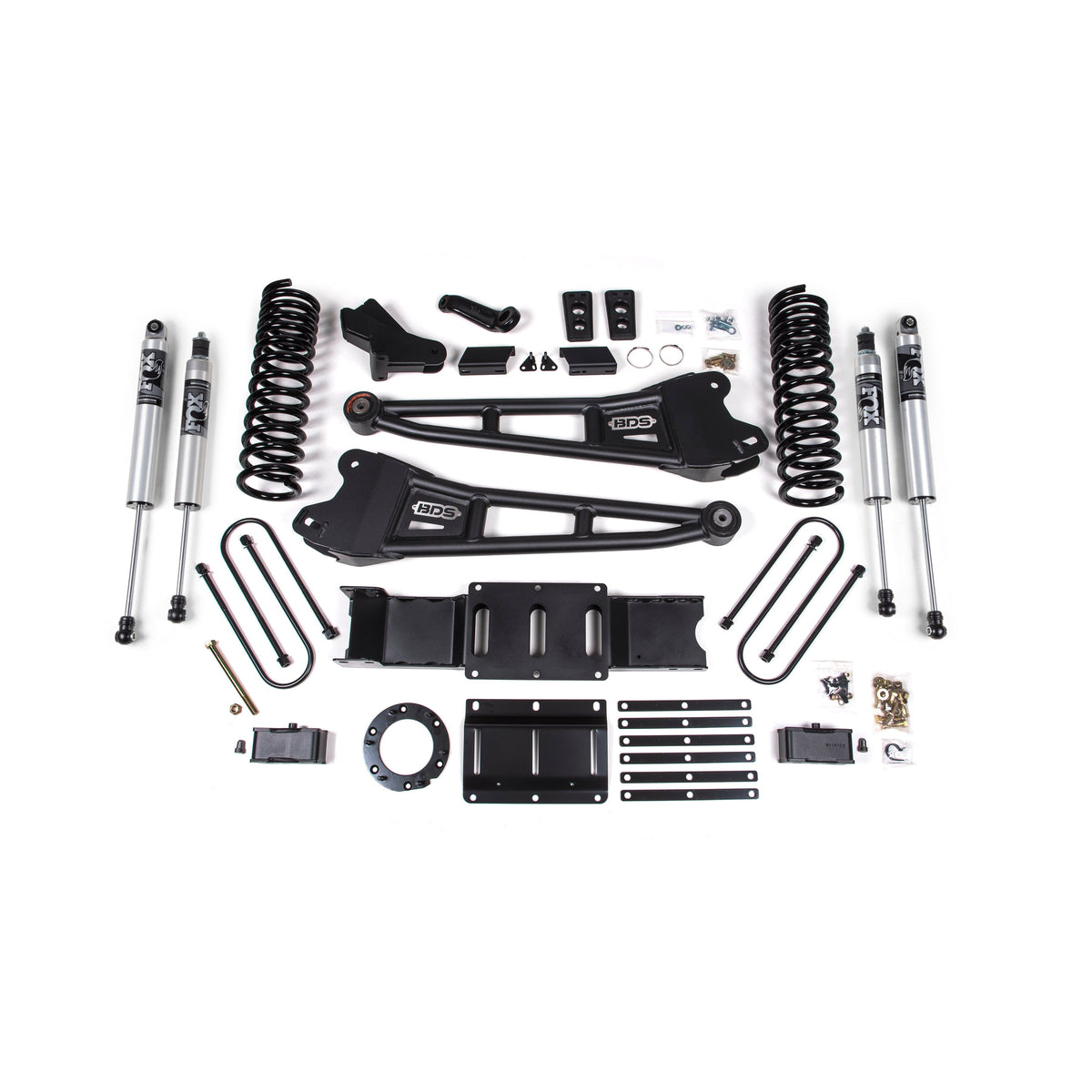

Without Factory Rear Overload Leaf / FOX 2.5 Performance Series HTO — BDS1700PS

Front Lift Method : Coil Spring
Front Lift Height : 4"
Rear Lift Method : Block
Rear Lift Height : 3"
Shocks Included : Yes
Lift Height : 4-5.5"

With Factory Rear Overload Leaf / FOX 2.5 Performance Series HTO — BDS1701PS

Front Lift Method : Coil Spring
Front Lift Height : 4"
Rear Lift Method : Block
Rear Lift Height : 3"
Shocks Included : Yes
Lift Height : 4-5.5"

Supplemental Installation Documents

Estimated installation time: 8-10 hrs.

Installation difficulty: Moderate.

Special tools: Pitman Arm Puller.

➡️ Warranty

BDS warranty coverage is for the original retail purchaser with proof of purchase. BDS hard parts and bushings have lifetime replacement coverage; finish and normal wear are excluded.

BDS NX2 and BDS/FOX Performance Series shocks have limited lifetime coverage excluding normal wear and oil seals. At BDS’s discretion, qualifying leaking seals less than two years old may be considered for repair or replacement.

FOX proprietary shocks and coilovers follow FOX warranty terms rather than the BDS warranty. Qualifying leaking seals less than one year old may be considered; other FOX concerns follow the FOX service process.

Properly maintained ball joints and tie-rod ends less than three years old may qualify, subject to the manufacturer’s conditions.

Remedies are repair or replacement at BDS’s discretion. Eligible warranty ground shipping is covered; removal, installation, expedited freight and consequential costs are excluded.

Read the official BDS warranty and FOX service terms.
