BAJA DESIGNS Ford Super Duty (11-16) S8 30 inch Grille Mount Kit Baja Designs I 447792

Ford Super Duty (11-16) S8 30 inch Grille Mount Kit Baja Designs I Set your Ford Super Duty apart from the rest with Baja Designs LED S8 Grille Kit. Our Ford Super Duty S8 Grille Kit has been specifically designed for 2011-2016 Ford Super Duty models giving you that clean OEM look allowing for easy installation of one 30 inch S8 LED Light Bar.
This mount kit also comes equipped with a Ford specific upfitter wiring harness which allows you to use factory switches.
strong Baja Designs Features: strong

Satisfactions Guarantee -30 Day Money Back Guarantee
mited fetime Warranty - Complete Purchase Protection
uService - Replaceable Lenses And Optics
ClearView - All The Light, RiLight Where You Need It.
MoistureBlock- Waterproof, Rain Proof, Submersible
CopperDrive - Only LED Driven At 100 percent
5000K DayliLight - Less Driver Fatigue, Natural Color

strong Specifications: strong

Lumens: 19,050 Utilizing 24 Cree LEDs
Wattage/Amps: 180W 12A
Dimensions: 30 inch x 3 inch x 1.6 inch
WeiLight: 6.5 lbs
LED fe Expectancy: 49,930 Hours
Front Lens: Hard Coated Polycarbonate
Housing: Aircraft Grade Aluminum w/Mil-Spec Hard Anodize
Bezel: Billet Machined Aluminum
Hardware and Bracket Material: Stainless Steel
Exceeds MIL-STD810G (Mil-Spec Testing)
Built-In Overvoltage Protection
IP69K (Waterproof up to 9ft and Pressure Washable)
IK10 Compliant (Mechanical Impact Testing)

(S8 Patent D780,964)

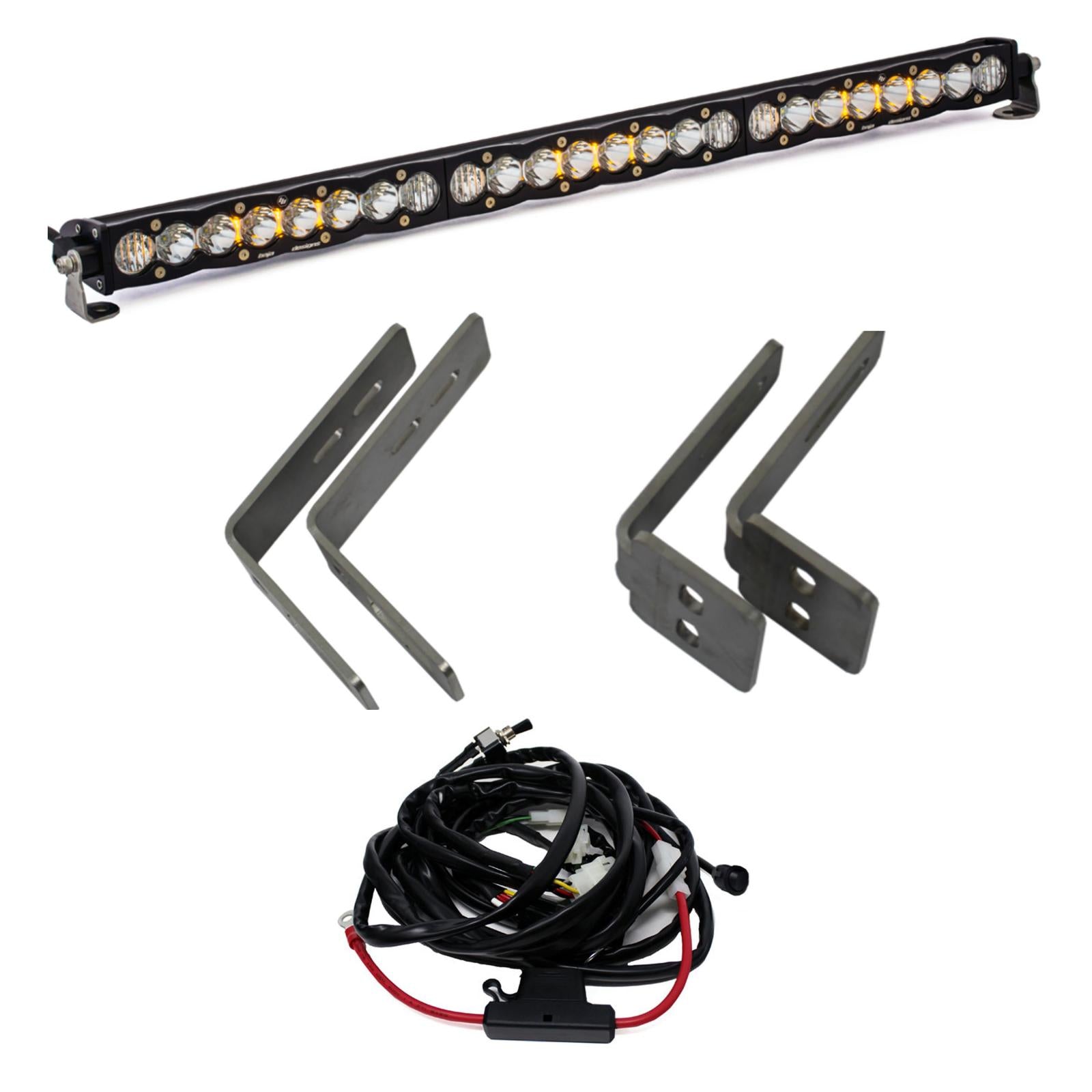

strong Includes: strong

x2 2011-2016 Ford Super Duty Mounting Brackets
x1 S8 30 inch LED Light Bar
Ford Upfitter Wiring Harness
Hardware

strong Patterns: strong
Driving/Combo: Maximum trail coverage in a single Light. The Driving/Combo pattern is equipped with both Driving (42 degree) and spot (9 degree) optics to provide you with a smooth blend of Light for both near field applications and distance (LiLighting Zone 3)
Wide Cornering: BD was the first to develop a pattern specifically for cornering, dust and/or fog conditions. The Wide Driving pattern offers a 42 degree flattened horizontal beam for the ultimate in comfort Lighting. (LiLighting Zones 1 and 2)
Spot: A longer and narrower 9 degree beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam LiLights. (LiLighting Zone 4 and 5)


FITMENT: 2011,2016,Chevrolet,Silverado 2500 HD,LT|2011,2016,Chevrolet,Silverado 3500 HD,LT|2011,2016,Chevrolet,Silverado 2500 HD,LTZ|2011,2016,Chevrolet,Silverado 3500 HD,LTZ|2011,2016,Chevrolet,Silverado 2500 HD,WT|2011,2016,Chevrolet,Silverado 3500 HD,WT|2015,2016,Chevrolet,Silverado 2500 HD,High Country|2015,2016,Chevrolet,Silverado 3500 HD,High Country
