BAJA DESIGNS Ford Super Duty (11-16) Onx6 20 inch Font Bumper Kit Baja Designs I 447790

Ford Super Duty (11-16) Onx6 20 inch Font Bumper Kit Baja Designs I Set your Ford Super Duty apart from the rest than with some Baja Designs LED Light Bars. Our Ford Super Duty LED Light Bar Mount Kit has been specifically designed for 2011-2014 Ford Super Duty models giving you that clean OEM look.
This mount kit allows for easy installation of a 20 inch OnX6 LED Light Bar. This mount kit also comes equipped with a wiring harness that allows you to use a separate auxiliary switch.
strong Baja Designs Features: strong

Satisfactions Guarantee -30 Day Money Back Guarantee
mited fetime Warranty - Complete Purchase Protection
uService - Replaceable Lenses And Optics
ClearView - All The Light, RiLight Where You Need It.
MoistureBlock- Waterproof, Rain Proof, Submersible
CopperDrive - Only LED Driven At 100 percent
5000K DayliLight - Less Driver Fatigue, Natural Color

strong Specifications: strong

Lumens: (High) 24,920 (Low) 18,460 Utilizing 12 Cree LEDs
Wattage/Amps: (High) 216W 16.6A (Low) 160W 12.0A
Dimensions: 20 inch x 4.29 inch x 2.69 inch
WeiLight: 7.85 lbs
LED fe Expectancy: 49,930 Hours
Front Lens: Hard Coated Polycarbonate
Housing: Aircraft Grade Aluminum w/Mil-Spec Hard Anodize
Bezel: Billet Machined Aluminum
Hardware and Bracket Material: Stainless Steel
Exceeds MIL-STD810G (Mil-Spec Testing)
Built-In Overvoltage Protection
IP69K (Waterproof up to 9ft and Pressure Washable)
IK10 Compliant (Mechanical Impact Testing)

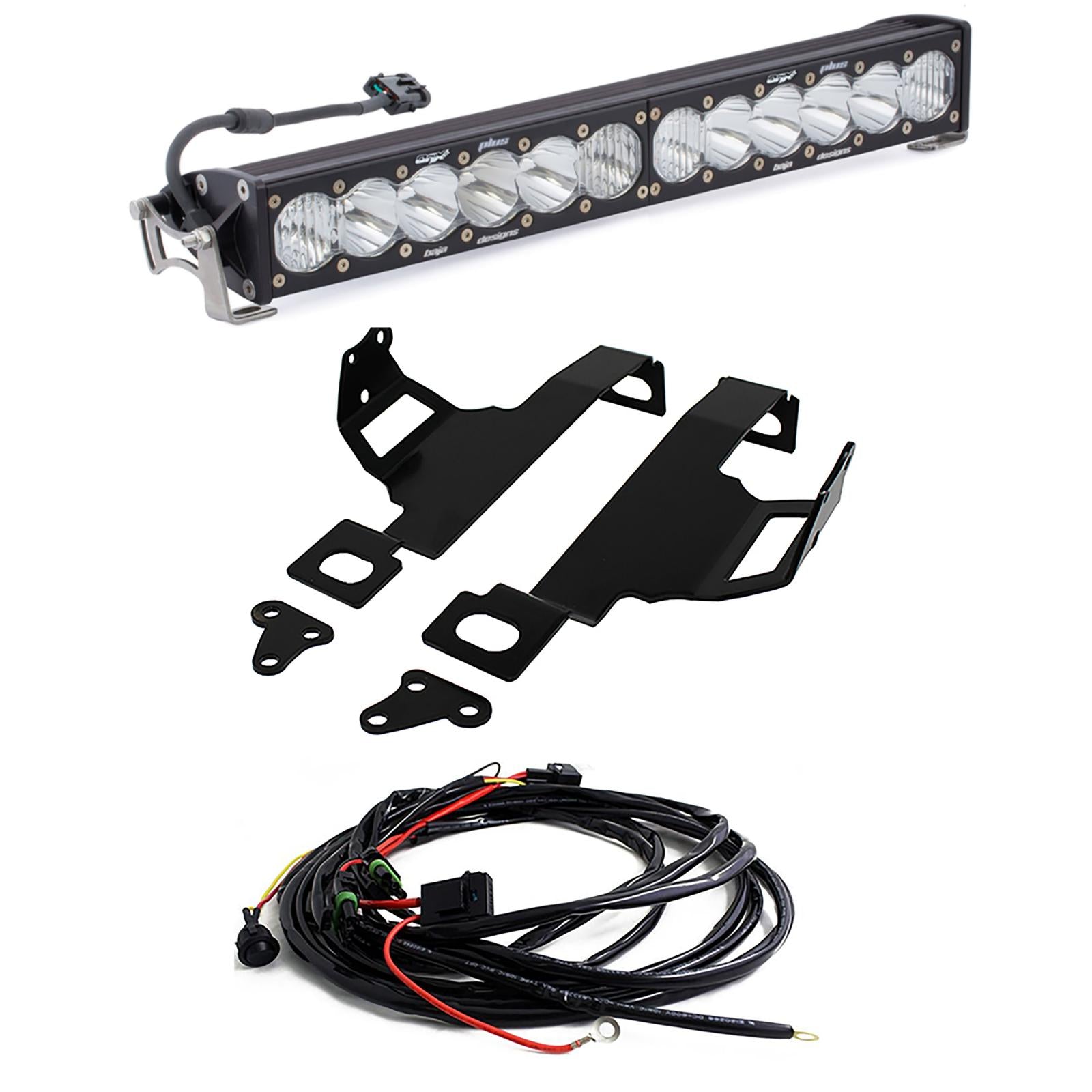

strong Includes: strong

x2 2011-2014 Ford Super Duty Mounting Brackets
x1 OnX6+, 20 inch Driving/Combo LED Light Bar
Wiring Harness
Hardware

strong Patterns: strong
Driving/Combo: Maximum trail coverage in a single Light. The Driving/Combo pattern is equipped with both Driving (42 degree) and spot (9 degree) optics to provide you with a smooth blend of Light for both near field applications and distance (LiLighting Zone 3)
Wide Cornering: BD was the first to develop a pattern specifically for cornering, dust and/or fog conditions. The Wide Driving pattern offers a 42 degree flattened horizontal beam for the ultimate in comfort Lighting. (LiLighting Zones 1 and 2)
Spot: A longer and narrower 9 degree beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam LiLights. (LiLighting Zone 4 and 5)


FITMENT: 2011,2016,Ford,F-250 Super Duty,King Ranch|2011,2016,Ford,F-350 Super Duty,King Ranch|2011,2016,Ford,F-250 Super Duty,Lariat|2011,2016,Ford,F-350 Super Duty,Lariat|2011,2016,Ford,F-250 Super Duty,XL|2011,2016,Ford,F-350 Super Duty,XL|2011,2016,Ford,F-250 Super Duty,XLT|2011,2016,Ford,F-350 Super Duty,XLT|2013,2016,Ford,F-250 Super Duty,Platinum|2013,2016,Ford,F-350 Super Duty,Platinum
