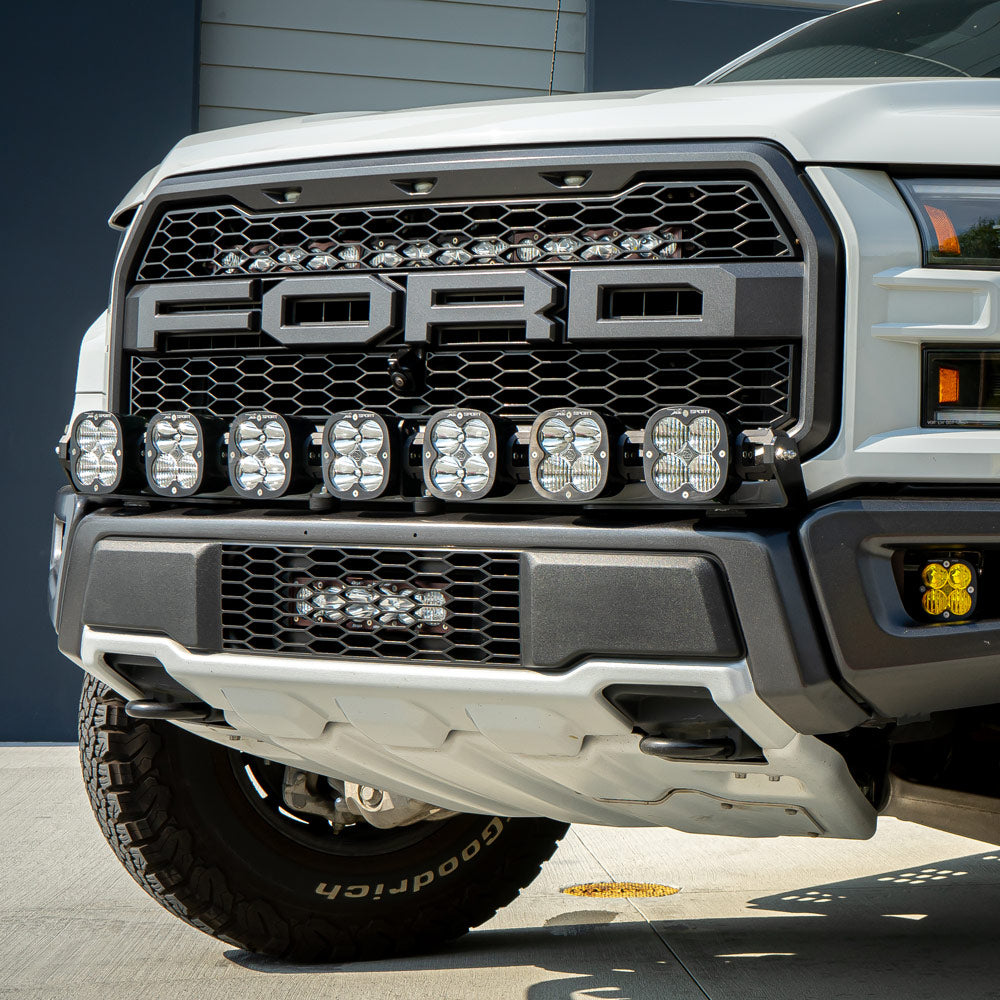

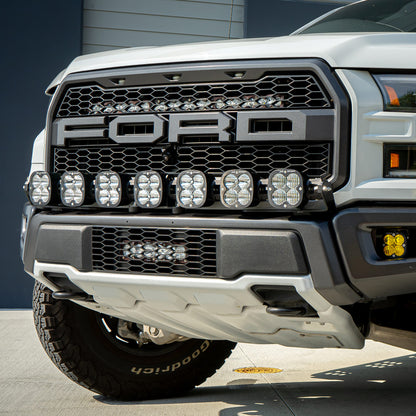

BAJA DESIGNS Ford Raptor (17-20), 7 XL nkable Kit I 447740

Raptor LED Light Kit For 17-On Ford Raptor 7 XL nkable Kit Baja Designs I Full adjustment. Total Performance. The XL nkable was designed for the enthusiast looking to take charge with a Light package that is completely customizable for their needs. This kit includes 7 XL Sports, nks, vehicle specific mounting brackets, wiring harness and rock guards. A pre-load support bracket is included to ensure stiffness in the most extreme terrain.
This kit includes all the necessary components to outfit your 2017-2020 Ford Raptor with 7 XL nkables. This kit is designed for the enthusiast who has a factory upfitter system in their truck or sPOD Switch Pros unit.
(Patent Pending)
strong Please Note: strong This Lightbar may interfere with a portion of the viewing window in front facing camera equipped vehicles.
strong Baja Designs Features: strong

Satisfactions Guarantee - 30 Day Money Back Guarantee
mited fetime Warranty - Complete Purchase Protection
uService - Replaceable Lenses And Optics
ClearView - All The Light, RiLight Where You Need It.
MoistureBlock - Waterproof, Rain Proof, Submersible
CopperDrive - Only LED Driven At 100 percent
5000K DayliLight - Less Driver Fatigue, Natural Color

strong Specifications: strong

Lumens: 22,050 Utilizing 28 LEDs
Wattage/Amps: 182W 14A
LED fe Expectancy: 49,930 Hours
Front Lens: Hard Coated Polycarbonate
Housing: Powder Coated Cast Aluminum
Bezel: Billet Machined Aluminum
Hardware and Bracket Material: Stainless Steel
Exceeds MIL-STD810G (Mil-Spec Testing)
Built-In Overvoltage Protection
IP69K (Waterproof, Submersible to 9ft)
IK10 Compliant (Mechanical Impact Testing)

strong Includes: strong

x3 XL Sport Spot LED Light
x2 XL Sport Driving/Combo LED Light
x2 XL Sport Wide Cornering LED Light
x7 XL Sport Rock Guards
Support kit
Upfitter Harness
Super Duty Brackets

strong Application: strong
(2017- 2020) Ford Raptor
strong Patterns: strong
Driving/Combo: Maximum trail coverage in a single Light. The Driving/Combo pattern is equipped with both Wide Driving (44 degree) and spot (6 degree) optics to provide you with a smooth blend of Light for both near field applications and distance (LiLighting Zone 3)
Wide Cornering: BD was the first to develop a pattern specifically for cornering, dust and/or fog conditions. The Wide Driving pattern offers a 44 degree flattened horizontal beam for the ultimate in comfort Lighting. (LiLighting Zones 1 and 2)
High Speed Spot: A longer and narrower 6 degree beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam LiLights. (LiLighting Zone 4 and 5)


FITMENT: 2017,2021,Ford,F-150,Raptor
