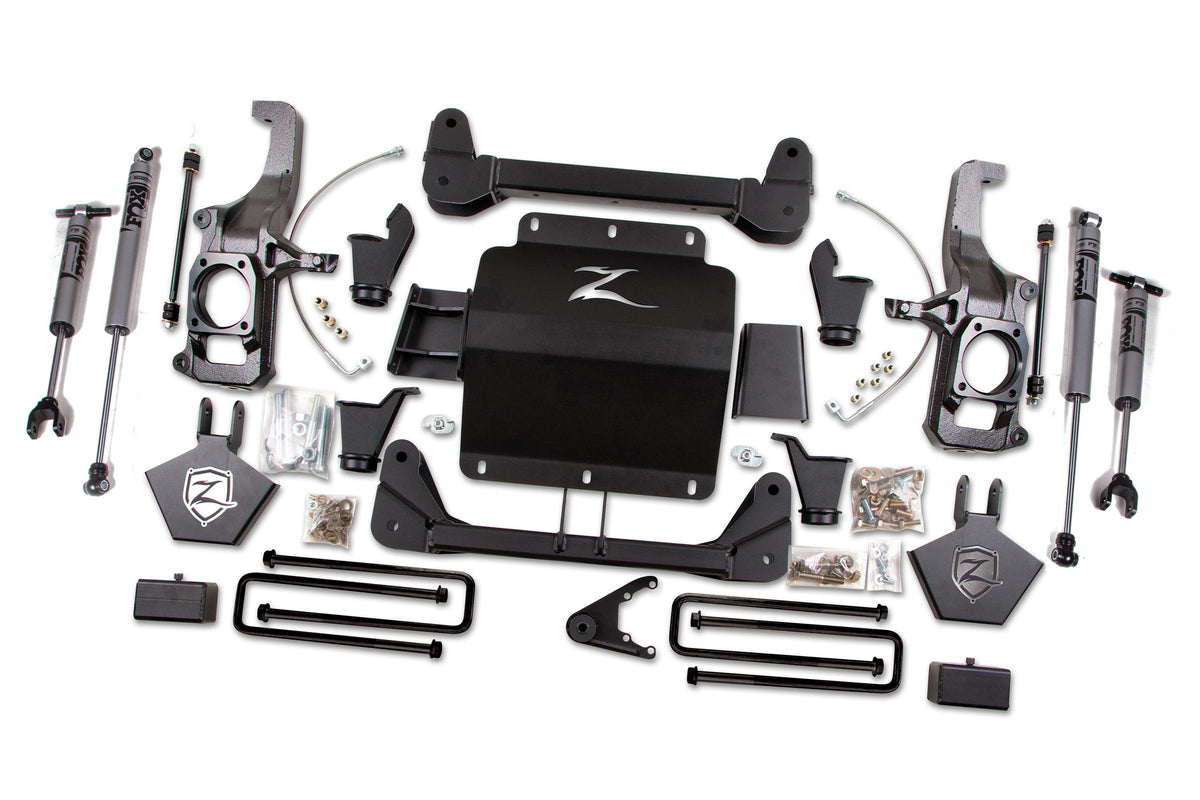

ZONE OFFROAD | 5" Lift Kit | 11-19 Chevy Silverado & GMC Sierra 2500HD 4WD | ZONC12F / ZONC13F

ZONE OFFROAD | 5" Lift Kit | 11-19 Chevy Silverado & GMC Sierra 2500HD 4WD

Lift Height: 5"

Position: Front and Rear

Configurations

• Without Factory Overload / FOX 2.0 Adventure Series — ZONC12F
• With Factory Overload / FOX 2.0 Adventure Series — ZONC13F

Installation requirements

1. 2015-2018 Models Only: 20" wheels can not be reinstalled due to GM changing the wheel thickness. The ID of the 20" wheels are smaller on 2015-2018 models.
2. WILL fit RWD models, however the front differential related parts in kit will not be used.
3. Frame bracket modifications required for installation.
4. Modifications required for installation. See installation instructions for more information.
5. Optional steering stabilizer (PN# 7103) only fits vehicles that came equipped with a steering stabilizer from the factory.
6. Stock 17" or 18" Wheels cannot be re-installed. Stock 20" wheels cannot be reinstalled on 2015-2018 models.
7. Two-piece rear drive shaft? Add a carrier bearing drop kit to reduce post-lift drive-line angles and avoid / eliminate driveshaft vibration.
8. With a 20" Wheel, 5"-6" backspacing is recommended.
9. In some cases vehicles used in 4WD on the highway regularly could potentially experience a minor front drive-line vibration. If this occurs we recommend replacing the front driveshaft with a dual cardan style driveshaft.


Vehicle fitment

Applications below are subject to the manufacturer restrictions shown first.

1. 2015-2018 Models Only: 20" wheels can not be reinstalled due to GM changing the wheel thickness. The ID of the 20" wheels are smaller on 2015-2018 models.
2. WILL fit RWD models, however the front differential related parts in kit will not be used.
3. Frame bracket modifications required for installation.
4. Modifications required for installation. See installation instructions for more information.
5. Optional steering stabilizer (PN# 7103) only fits vehicles that came equipped with a steering stabilizer from the factory.
6. Stock 17" or 18" Wheels cannot be re-installed. Stock 20" wheels cannot be reinstalled on 2015-2018 models.
7. Two-piece rear drive shaft? Add a carrier bearing drop kit to reduce post-lift drive-line angles and avoid / eliminate driveshaft vibration.
8. With a 20" Wheel, 5"-6" backspacing is recommended.
9. In some cases vehicles used in 4WD on the highway regularly could potentially experience a minor front drive-line vibration. If this occurs we recommend replacing the front driveshaft with a dual cardan style driveshaft.


• 2011–2019 Chevrolet / Silverado 2500 HD / Drive: 4WD — Mounts Above Crossmember / Front and Rear / 5"
• 2011–2019 Chevrolet / Silverado 3500 HD / Drive: 4WD — Mounts Above Crossmember / Front and Rear / 5"
• 2011–2019 GMC / Sierra 2500 HD / Drive: 4WD — Mounts Above Crossmember / Front and Rear / 5"
• 2011–2019 GMC / Sierra 3500 HD / Drive: 4WD — Mounts Above Crossmember / Front and Rear / 5"

Manufacturer specifications by option

ZONC12F

• Front Lift Method : Cross Member & Torsion Drop
• Front Lift Height : 5"
• Rear Lift Method : Block
• Rear Lift Height : 3"
• Shocks Included : Yes

ZONC13F

• Front Lift Method : Cross Member & Torsion Drop
• Front Lift Height : 5"
• Rear Lift Method : Block
• Rear Lift Height : 3"
• Shocks Included : Yes
