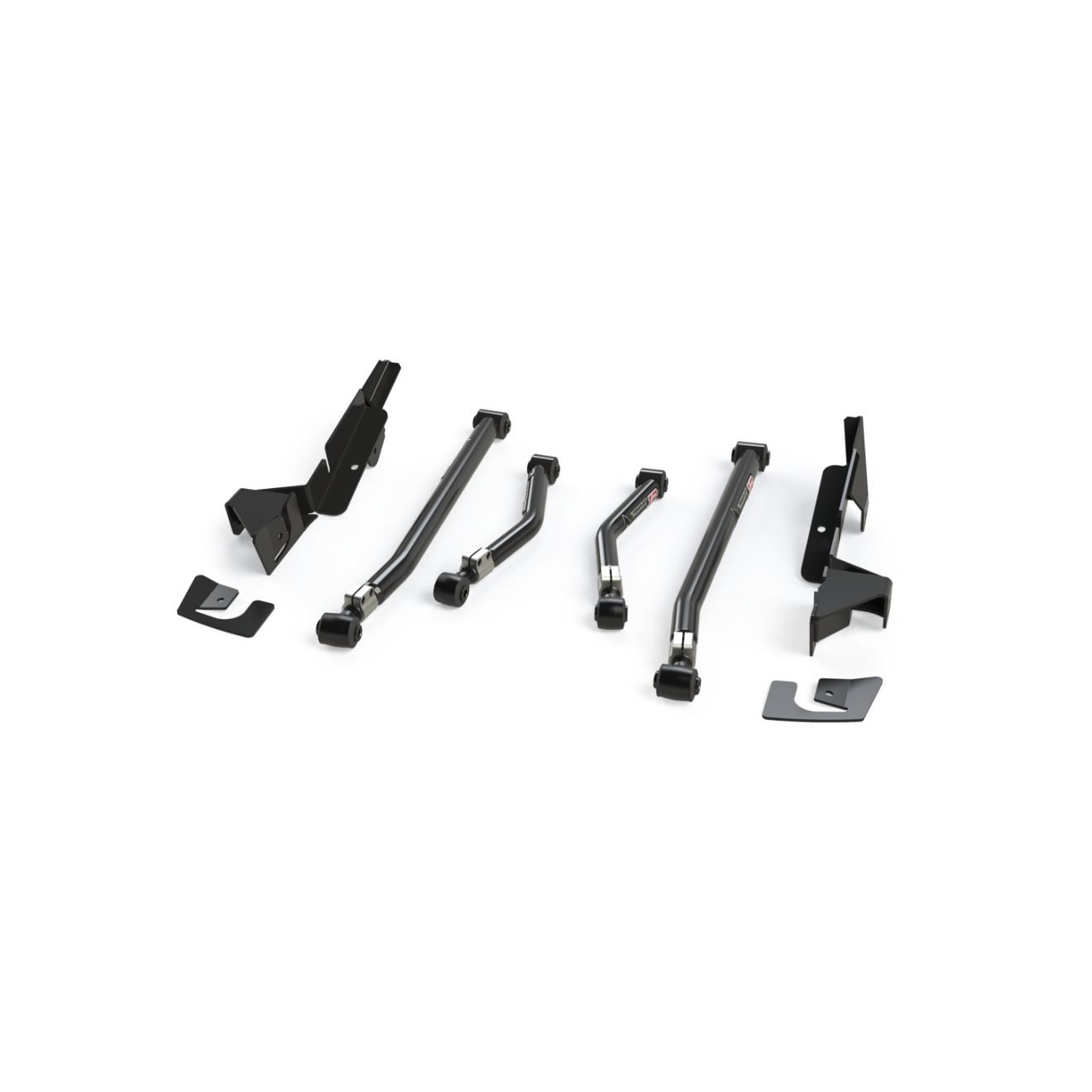

TeraFlex | 07-18 Wrangler JK Alpine IR Rear Long Arm & Brackets TeraFlex | 1957200

TeraFlex JK: Alpine IR Long Control Arms and Alpine Long Arm Brackets provide complete alignment adjustability and dependability for maximum performance on JK Wrangler/Unlimited models with 3-6 Inch Lifts. Can be added to an existing suspension lift. Our innovative IR Bushings provide unrestricted rotation and flex as well as excellent NVH damping.

These maintenance-free bushings improve on- and off-road ride quality and performance. On higher lifts TeraFlex JK: Alpine Long Arm Brackets (Included) reposition the frame-end control arm mounting points to restore near factory orientation to reduce bushing stress during droop and shock load transferred through the control arms.

CAD-engineered Alpine Long Arm Brackets are designed for maximum strength. By streamlining the frame-end mounting points we were able to incorporate both upper and lower mounts in each bracket thus simplifying installation while maintaining a factory appearance.

Fitment:

• JK Wrangler (2-door)
• JK Wrangler Unlimited (4-door)3-6 Inch Lift
• Long Control Arm

Specs:

• JK: Alpine IR Long Control Arm Kit - Rear Upper (# 1315590):
• Tube Diameter & Wall: 1-5/8 Inch X 0.157 Inch (42mm X 4mm)
• Factory Length = 17-7/16 Inch
• Min. Length = 20 Inch
• Max. Length = 21-1/2 Inch
• Both Ends = 9/16 Inch (14mm) Bolt
• Thread = 1-1/4 Inch-12 UNF
• JK: Alpine IR Long Control Arm Kit - Rear Lower (# 1315600):
• Tube Diameter & Wall = 2 Inch X 0.197 Inch (50mm X 5mm)
• Factory Length = 19-3/4 Inch
• Min. Length = 35-3/4 Inch
• Max. Length = 37-1/4 Inch
• Both Ends = 9/16 Inch (14mm)
