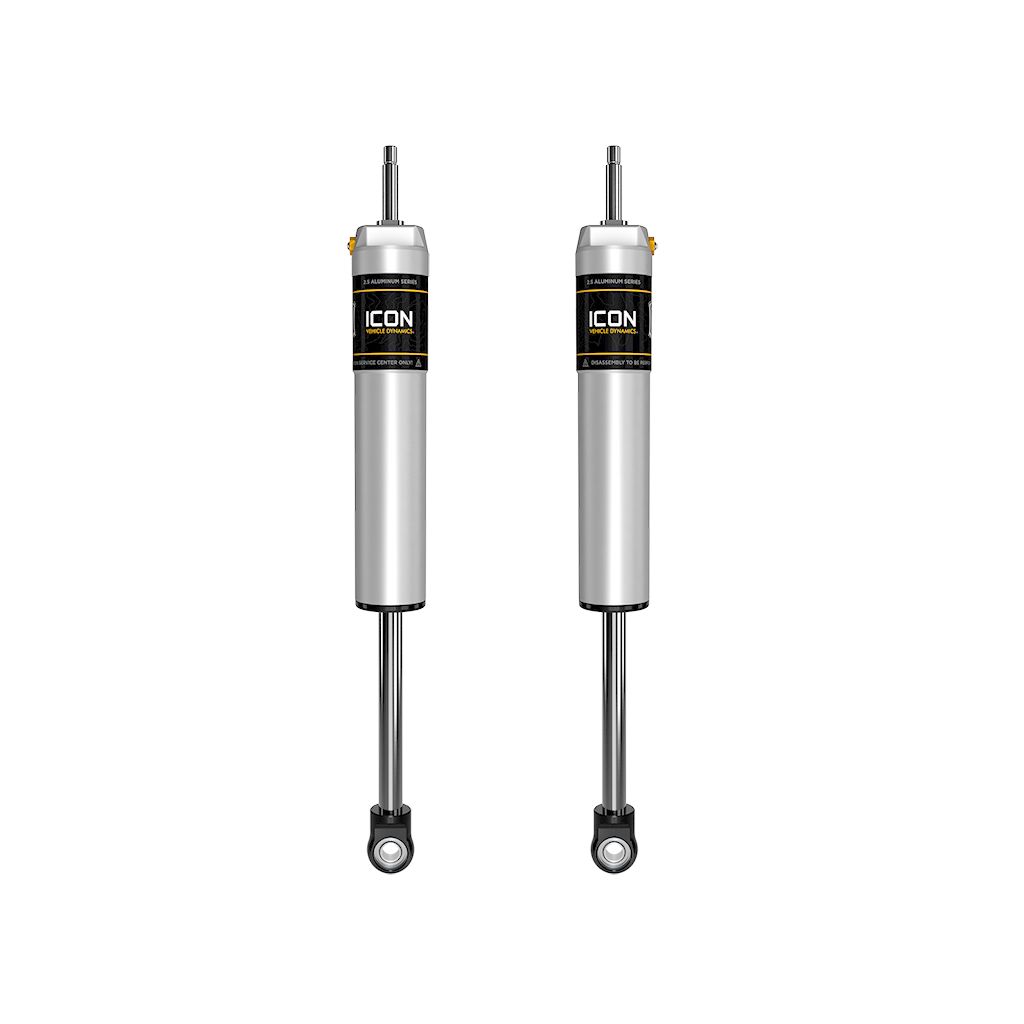

ICON VEHICLE DYNAMICS | 07-21 Tundra 6 Inch Rear 2.5 VS IR Pair Icon Vehicle Dynamics | 57621P

ICON Vehicle Specific (V.S.) 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune.

Like all ICON'S Shock Absorbers, V.S. 2.5 Aluminum Series shocks are 100 Percent rebuildable and 100 Percent revalveable. The larger diameter and oil volume of ICON 2.5 IR Series shocks provide better ride quality and heat dissipation properties than the standard 2.0 Aluminum Series IR Shocks.

If you are looking for a more user defined tune, consider looking into the Compression Damping Control Valve (CDC Valve) or the Omega Series bypass shocks.

Features and Benefits:

• One-piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
• Increase in strength and heat dissipation when compared to ICON V.S. 2.0 Series shocks
• Nitrogen charged monotube design with internal reservoir
• One-piece impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
• Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
• 6061 aircraft grade aluminum CNC machined components
• PTFE lined spherical bearings and application specific mounting hardware
• Polyurethane bushings and forged steel mounting stems for OE factory type fitment
• 7/8 Inch diameter induction hardened, chrome plated shock shafts
• 100 Percent Revalveable
• 100 Percent Rebuildable

Details

• Adjustable: No
• Boot Included: No
• Bore Diameter: 2.25
• Cylinder Color: Silver
• Cylinder Material: Aluminum
• Damping Type: Oil
• External Reservoir: No
• Gas Charged: Yes
• Grade Type: Performance
• Lower Mount Type: Eyelet
• Mounting Hardware Included: Yes
• Service Parts: 252002 - Universal Spanner Wrench (2.0/2.5/3.0), 611007 - 9/16 Medium Duty Stem Bushing Kit, 252010 - 2.5 Ifp Rebuild Kit, 252004 - Economy Needle Charging Tool, 252003 - Seal Install Tool 2.5/3.0, 257341S - 7/8 Shaft 15.25 Oal, 11.00 Travel Short, 254100G - 1 Gallon Icon Performance Shock Oil, 252001 - 2.5 Fixed Spanner Wrench
• Shaft Diameter: 0.875
• Shaft Material: Chrome
• Shock Absorber Body End Measuring Point: Shoulder Of Stem
• Shock Absorber Rod End Measuring Point: Center Of Eyelet
• Tube Outside Diameter: 2.5
• Upper Mount Type: Stem
