BDS SUSPENSION | 2" Leveling Kit FOX 2.5 Performance Elite Coilover | 19-27 Ram 1500 4WD | 1664FPE / 1740FPE
BDS SUSPENSION | 2" Leveling Kit FOX 2.5 Performance Elite Coilover | 19-27 Ram 1500 4WD | 1664FPE / 1740FPEPART#: PART#: BDS1664FPE
Couldn't load pickup availability
Canadian Owned & Operated
BDS SUSPENSION | 2" Leveling Kit FOX 2.5 Performance Elite Coilover | 19-27 Ram 1500 4WD | 1664FPE / 1740FPE
Description
Up the ante in your 2019-2027 RAM 1500 4WD truck with style and performance by installing this 2-inch lift kit featuring FOX Performance Elite 2.5 coil-over shocks from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 33" tires.

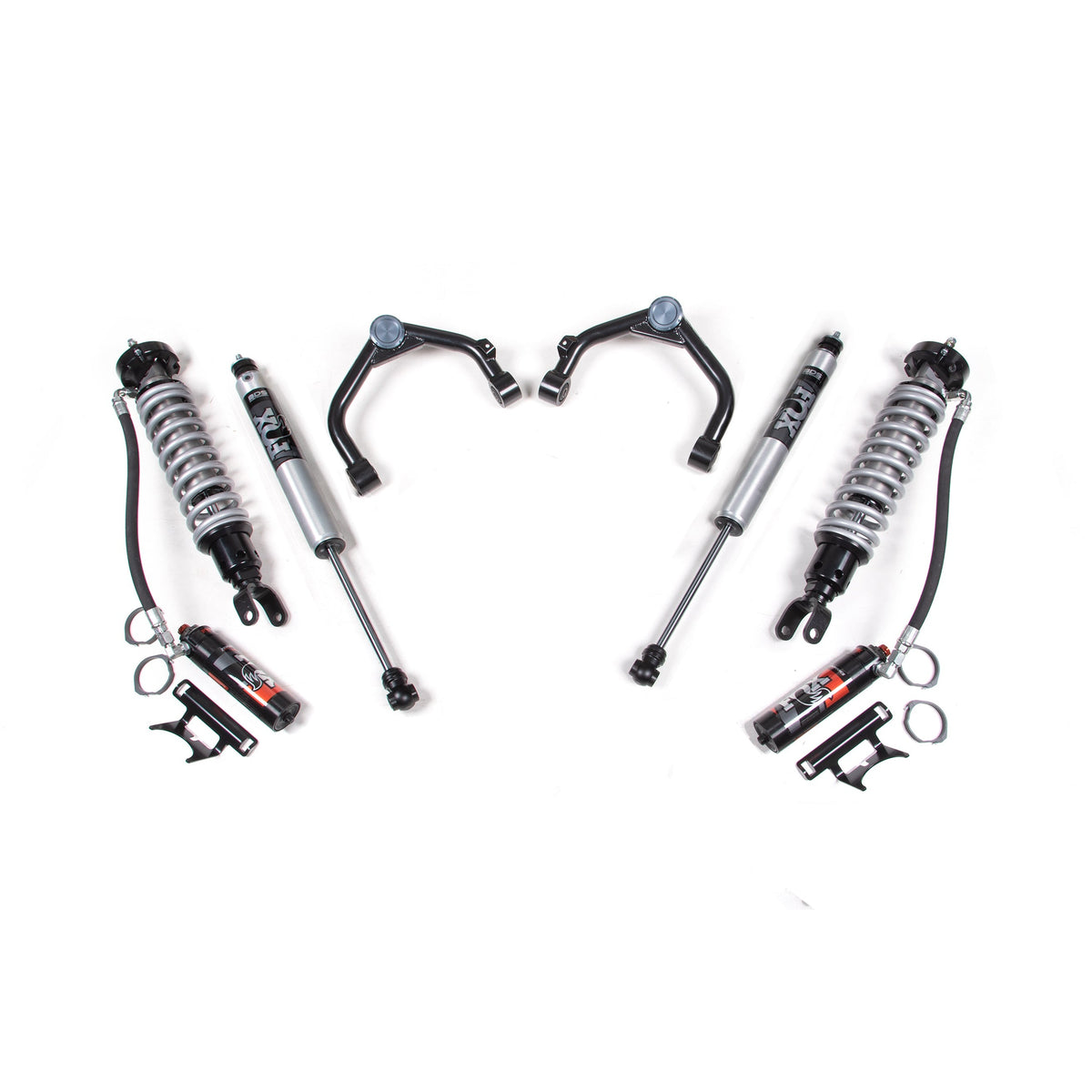

Up front the lift kit includes FOX 2.5 Performance Elite Series remote reservoir coil-over shocks and heavy duty tubular upper control arms for increased strength. In the rear this kit utilizes a complementary set of FOX 2.5 Performance Elite shocks for the smoothest ride.
FOX Performance Elite
FOX 2.5 Performance Elite shocks offer next level performance for on-road comfort and off-road comfort capability. Tuned and ready to install right out of the box, these bolt-on 2.5-inch diameter shocks are built for abuse and packed with race-proven technology. They include a remote reservoir for additional fluid capacity to keep your shocks running cool so you can push the limits in the rough terrain. The DSC adjuster adds remarkable versatility and precise tuning with a simple twist of either two adjuster knobs, offering 10 separate low-speed and 12 high-speed compression levels, with a black anodized aluminum reservoir to increase cooling efficiency.
HD Upper Control Arms (UCAs)
Built for strength, performance and increased travel, these upper control arms are ready to bolt-in with most leveled/lifted trucks. They use 1.5" OD x .120-wall tubular construction with an indexed ball joint cup to correct the ball joint positioning allowing additional down travel and camber adjustment. At the frame mounting ends are durometer-specific rubber bushings for maintenance-free operation while at the other end a quality greaseable ball joints for smooth, quiet operation and superior durability. Arms are finished in a durable black powder coat with a billet aluminum dust cap ready for installation right out of the box.
FOX 2.0 Performance Series — BDS1664FPE
- Front Lift Method : Coil-Over
- Front Lift Height : 2"
- Rear Lift Method : Stock
- Rear Lift Height : 0"
- Shocks Included : Yes
- Lift Height : 2-3.5"
FOX 2.5 Performance Elite — BDS1740FPE
- Front Lift Method : Coil-Over
- Front Lift Height : 2"
- Rear Lift Method : Stock
- Rear Lift Height : 0"
- Shocks Included : Yes
- Lift Height : 2-3.5"
Estimated installation time: 3-4 hrs.
Installation difficulty: Easy.
Fitment Table
FOX 2.0 Performance Series — BDS1664FPE
| Year | Make | Model | Trim | Drive | Fuel |
|---|---|---|---|---|---|
| 2019, 2024–2027 | Ram | 1500 | Big Horn | 4WD | Not specified |
| 2019, 2024–2027 | Ram | 1500 | Laramie | 4WD | Not specified |
| 2019 | Ram | 1500 | Laramie Longhorn | 4WD | Not specified |
| 2019–2022, 2025 | Ram | 1500 | Laramie Sport | Not specified | Not specified |
| 2019, 2024 | Ram | 1500 | Limited | 4WD | Not specified |
| 2019, 2024–2027 | Ram | 1500 | Lone Star | 4WD | Not specified |
| 2019–2020, 2022, 2026 | Ram | 1500 | Longhorn | Not specified | Not specified |
| 2019, 2024 | Ram | 1500 | Rebel | 4WD | Not specified |
| 2019–2022 | Ram | 1500 | SLT | 4WD | Not specified |
| 2019 | Ram | 1500 | ST | 4WD | Not specified |
| 2019 | Ram | 1500 | SXT | 4WD | Not specified |
| 2019 | Ram | 1500 | Sport | 4WD | Not specified |
| 2019, 2024–2027 | Ram | 1500 | Tradesman | 4WD | Not specified |
| 2020–2023 | Ram | 1500 | Big Horn | 4WD | GAS |
| 2020–2023 | Ram | 1500 | Big Horn | 4WD | MILD HYBRID EV-GAS (MHEV) |
| 2020–2022 | Ram | 1500 | Hemi Sport | Not specified | Not specified |
| 2020–2023 | Ram | 1500 | Laramie | 4WD | GAS |
| 2020–2023 | Ram | 1500 | Laramie | 4WD | MILD HYBRID EV-GAS (MHEV) |
| 2020–2021 | Ram | 1500 | Laramie Longhorn | 4WD | GAS |
| 2020–2021 | Ram | 1500 | Laramie Longhorn | 4WD | MILD HYBRID EV-GAS (MHEV) |
| 2020–2023 | Ram | 1500 | Limited | 4WD | GAS |
| 2020–2023 | Ram | 1500 | Limited | 4WD | MILD HYBRID EV-GAS (MHEV) |
| 2020–2023 | Ram | 1500 | Lone Star | 4WD | GAS |
| 2020–2023 | Ram | 1500 | Lone Star | 4WD | MILD HYBRID EV-GAS (MHEV) |
| 2020–2022 | Ram | 1500 | Rebel | 4WD | GAS |
| 2020–2022 | Ram | 1500 | Rebel | 4WD | MILD HYBRID EV-GAS (MHEV) |
| 2020–2021, 2025–2027 | Ram | 1500 | Special Service | Not specified | Not specified |
| 2020–2021 | Ram | 1500 | Sport | 4WD | GAS |
| 2020–2023 | Ram | 1500 | Tradesman | 4WD | GAS |
| 2020–2023 | Ram | 1500 | Tradesman | 4WD | MILD HYBRID EV-GAS (MHEV) |
| 2021–2023 | Ram | 1500 | Limited Longhorn | 4WD | GAS |
| 2021–2023 | Ram | 1500 | Limited Longhorn | 4WD | MILD HYBRID EV-GAS (MHEV) |
| 2021 | Ram | 1500 | Longhorn | 4WD | GAS |
| 2021 | Ram | 1500 | Longhorn | 4WD | MILD HYBRID EV-GAS (MHEV) |
| 2022 | Ram | 1500 | Sport | Not specified | GAS |
| 2024 | Ram | 1500 | Limited Longhorn | 4WD | Not specified |
| 2025–2026 | Ram | 1500 | Big Horn OffRoad | Not specified | Not specified |
| 2025–2027 | Ram | 1500 | Limited | Not specified | Not specified |
| 2025–2027 | Ram | 1500 | Limited Longhorn | Not specified | Not specified |
| 2025–2027 | Ram | 1500 | Sport | Not specified | Not specified |
| 2025–2027 | Ram | 1500 | Tungsten | Not specified | Not specified |
| 2025–2027 | Ram | 1500 | Warlock | Not specified | Not specified |
| 2026–2027 | Ram | 1500 | Express | 4WD | Not specified |
| 2026 | Ram | 1500 | Laramie Night Edition | Not specified | Not specified |
| 2026 | Ram | 1500 | Sport S | Not specified | Not specified |
FOX 2.5 Performance Elite — BDS1740FPE
| Year | Make | Model | Trim | Drive | Fuel |
|---|---|---|---|---|---|
| 2019, 2024–2025, 2027 | Ram | 1500 | Big Horn | 4WD | Not specified |
| 2019, 2024–2025, 2027 | Ram | 1500 | Laramie | 4WD | Not specified |
| 2019 | Ram | 1500 | Laramie Longhorn | 4WD | Not specified |
| 2019–2022 | Ram | 1500 | Laramie Sport | Not specified | Not specified |
| 2019, 2024 | Ram | 1500 | Limited | 4WD | Not specified |
| 2019, 2024–2025, 2027 | Ram | 1500 | Lone Star | 4WD | Not specified |
| 2019–2020, 2022 | Ram | 1500 | Longhorn | Not specified | Not specified |
| 2019, 2024 | Ram | 1500 | Rebel | 4WD | Not specified |
| 2019–2022 | Ram | 1500 | SLT | 4WD | Not specified |
| 2019 | Ram | 1500 | ST | 4WD | Not specified |
| 2019 | Ram | 1500 | SXT | 4WD | Not specified |
| 2019 | Ram | 1500 | Sport | 4WD | Not specified |
| 2019, 2024–2025, 2027 | Ram | 1500 | Tradesman | 4WD | Not specified |
| 2020–2023 | Ram | 1500 | Big Horn | 4WD | GAS |
| 2020–2023 | Ram | 1500 | Big Horn | 4WD | MILD HYBRID EV-GAS (MHEV) |
| 2020–2022 | Ram | 1500 | Hemi Sport | Not specified | Not specified |
| 2020–2023 | Ram | 1500 | Laramie | 4WD | GAS |
| 2020–2023 | Ram | 1500 | Laramie | 4WD | MILD HYBRID EV-GAS (MHEV) |
| 2020–2021 | Ram | 1500 | Laramie Longhorn | 4WD | GAS |
| 2020–2021 | Ram | 1500 | Laramie Longhorn | 4WD | MILD HYBRID EV-GAS (MHEV) |
| 2020–2023 | Ram | 1500 | Limited | 4WD | GAS |
| 2020–2023 | Ram | 1500 | Limited | 4WD | MILD HYBRID EV-GAS (MHEV) |
| 2020–2023 | Ram | 1500 | Lone Star | 4WD | GAS |
| 2020–2023 | Ram | 1500 | Lone Star | 4WD | MILD HYBRID EV-GAS (MHEV) |
| 2020–2023 | Ram | 1500 | Rebel | 4WD | GAS |
| 2020–2023 | Ram | 1500 | Rebel | 4WD | MILD HYBRID EV-GAS (MHEV) |
| 2020–2021 | Ram | 1500 | Special Service | Not specified | Not specified |
| 2020–2021 | Ram | 1500 | Sport | 4WD | GAS |
| 2020–2023 | Ram | 1500 | Tradesman | 4WD | GAS |
| 2020–2023 | Ram | 1500 | Tradesman | 4WD | MILD HYBRID EV-GAS (MHEV) |
| 2021–2023 | Ram | 1500 | Limited Longhorn | 4WD | GAS |
| 2021–2023 | Ram | 1500 | Limited Longhorn | 4WD | MILD HYBRID EV-GAS (MHEV) |
| 2021 | Ram | 1500 | Longhorn | 4WD | GAS |
| 2021 | Ram | 1500 | Longhorn | 4WD | MILD HYBRID EV-GAS (MHEV) |
| 2022 | Ram | 1500 | Sport | Not specified | GAS |
| 2024 | Ram | 1500 | Limited Longhorn | 4WD | Not specified |
| 2025, 2027 | Ram | 1500 | Limited | Not specified | Not specified |
| 2025, 2027 | Ram | 1500 | Limited Longhorn | Not specified | Not specified |
| 2025, 2027 | Ram | 1500 | Tungsten | Not specified | Not specified |
| 2025, 2027 | Ram | 1500 | Warlock | Not specified | Not specified |
- Fits 4WD models only
- Vehicles equipped with "Offroad or Rebel Package" will not achieve full 2" of lift, net ride height change will be around 1" above stock.
- Will not fit vehicle equipped with factory Air Ride.
- Will NOT fit 2019-2022 RAM 1500 Classic models, Refer to the 2018 kit listings.
- 2025 Ram 1500 Bumper Spacer Kit (BDS122004) recommended for additional tire-to-fender clearance. Sold separately.
