BDS SUSPENSION | 2.5" Lift Kit with Radius Arm FOX 2.5 Performance Elite Coilover Conversion Diesel | 11-16 Ford F-250 / 11-16 Ford F-350 4WD | 1509FPE / 1926FPE / 1928FPE
Description

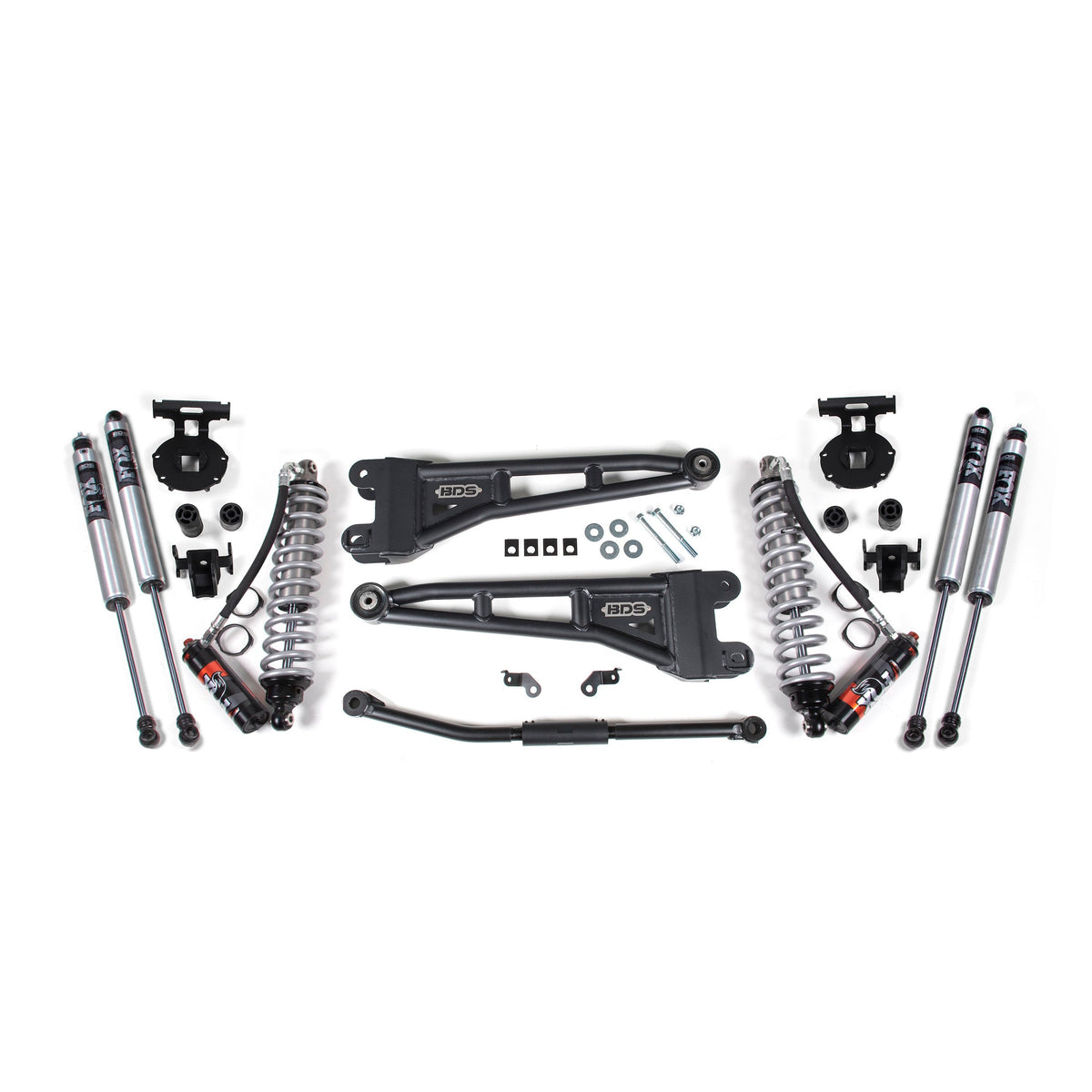

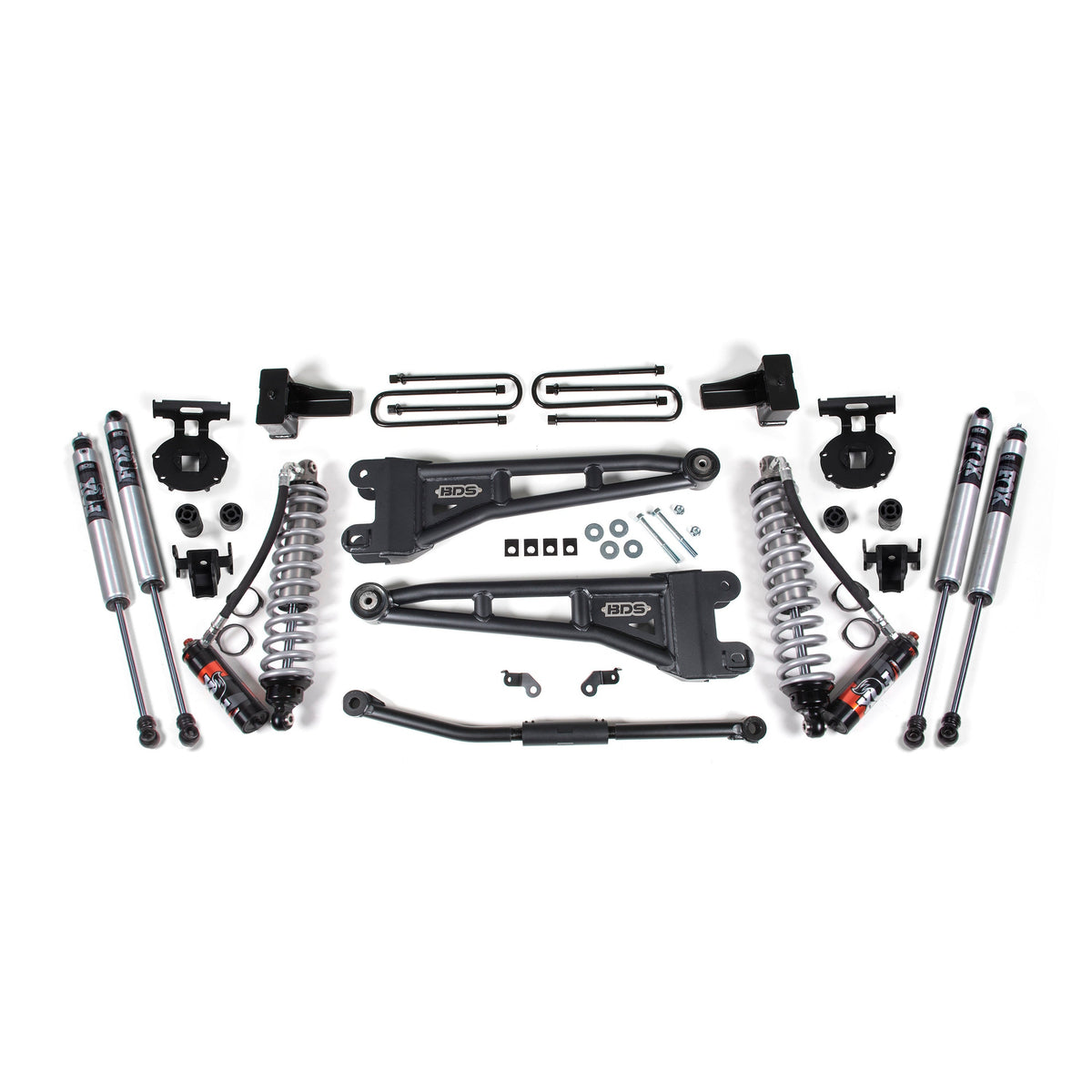

BDS Suspension raises the bar with this 2.5-inch radius arm lift kit with FOX 2.5 Performance Elite coilover shocks for 2011-2016 Ford F250 and F350 Super Duty diesel-powered trucks. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your vehicle up right with clearance for up to 35" tires.
Up front, the lift kit includes diesel-specific FOX 2.5 coilover shocks, heavy-duty replacement radius arms, a high-strength 1-3/8-inch solid steel track bar for steering correction, and brake line brackets.
In the rear, this kit utilizes a high-strength fabricated lift block, longer u-bolts, and a matching set of FOX Performance shocks.
FOX Performance Elite Coilover
FOX 2.5 Performance Elite shocks offer next-level capability. Tuned and ready to install right out of the box, these bolt-on 2.5-inch diameter shocks are built for abuse and packed with race-proven technology. They include a remote reservoir for additional fluid capacity to keep your shocks running cool so you can push the. It featuresility and precise tuning with a simple twist of either two adjuster knobs, offering 10 separate low-speed and 12 high-speed compression levels, with a black anodized aluminum reservoir to increase cooling efficiency.
HD Radius Arms
In place of the factory-stamped steel radius arms, BDS supplies a pair of high-strength tubular radius arms. These arms mount into the factory location and offer caster adjustment for a wide range of lift heights along with an OE-style rubber bushing at the frame mount for smooth, quiet, service-free operation.
HD Adjustable Track Bar
Maintain proper handling and steering geometry with the BDS high-strength adjustable track bar that allows you to recenter the front axle at a variety of lift heights. Built from 1-3/8" solid steel stock, the track bar comes pre-assembled with bushings and is ready to bolt into the factory mounting points.
4 Inch Block Kit — BDS1509FPE
- Front Lift Method : Coil-Over
- Front Lift Height : 2.5"
- Rear Lift Method : Block
- Rear Lift Height : 1"
- Shocks Included : Yes
- Lift Height : 2-3.5"
5 Inch Block Kit — BDS1926FPE
- Front Lift Method : Coil-Over
- Front Lift Height : 2.5"
- Rear Lift Method : Block
- Rear Lift Height : 2"
- Shocks Included : Yes
- Lift Height : 2-3.5"
No Block — BDS1928FPE
- Front Lift Method : Coil-Over
- Front Lift Height : 2.5"
- Rear Lift Method : Block
- Rear Lift Height : 0"
- Shocks Included : Yes
- Lift Height : 2-3.5"
Supplemental Installation Documents
Estimated installation time: 7 hrs.
Installation difficulty: Difficult.
Special tools: Basic Hand Tools, Drill / Bit Set, Reciprocating Saw.
Fitment Table
4 Inch Block Kit — BDS1509FPE / 5 Inch Block Kit — BDS1926FPE / No Block — BDS1928FPE
| Year | Make | Model | Drive | Fuel |
|---|---|---|---|---|
| 2011–2016 | Ford | F-250 Super Duty | 4WD | DIESEL |
| 2011–2016 | Ford | F-350 Super Duty | 4WD | DIESEL |
- Designed for Diesel models w/o top mounted overload rear springs
- Models equipped with a 3-3/4" rear block from the factory do not require a rear block kit in order to achieve a more level stance.
- For a more tail-high stance, substitute #013519 5" rear block kit
Warranty
BDS warranty coverage is for the original retail purchaser with proof of purchase. BDS hard parts and bushings have lifetime replacement coverage; finish and normal wear are excluded.
BDS NX2 and BDS/FOX Performance Series shocks have limited lifetime coverage excluding normal wear and oil seals. At BDS’s discretion, qualifying leaking seals less than two years old may be considered for repair or replacement.
FOX proprietary shocks and coilovers follow FOX warranty terms rather than the BDS warranty. Qualifying leaking seals less than one year old may be considered; other FOX concerns follow the FOX service process.
Properly maintained ball joints and tie-rod ends less than three years old may qualify, subject to the manufacturer’s conditions.
Remedies are repair or replacement at BDS’s discretion. Eligible warranty ground shipping is covered; removal, installation, expedited freight and consequential costs are excluded.
