BDS SUSPENSION | 1.5" Lift Kit FOX 2.5 Performance Elite Coil-Over | 19-24 Chevy Silverado 1500 Trail Boss / GMC Sierra 1500 AT4 4WD | 773FDSC / 774FDSC
BDS SUSPENSION | 1.5" Lift Kit FOX 2.5 Performance Elite Coil-Over | 19-24 Chevy Silverado 1500 Trail Boss / GMC Sierra 1500 AT4 4WD | 773FDSC / 774FDSCPART#: PART#: BDS773FDSC
Couldn't load pickup availability
Canadian Owned & Operated
BDS SUSPENSION | 1.5" Lift Kit FOX 2.5 Performance Elite Coil-Over | 19-24 Chevy Silverado 1500 Trail Boss / GMC Sierra 1500 AT4 4WD | 773FDSC / 774FDSC
Description
Up the ante in your Chevy Trail Boss or GMC AT4 1500 truck with style and performance by installing this 1.5-inch lift kit featuring FOX Performance Elite 2.5 coil-over shocks from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35" tires (Chevy) or 33" tires (GMC).

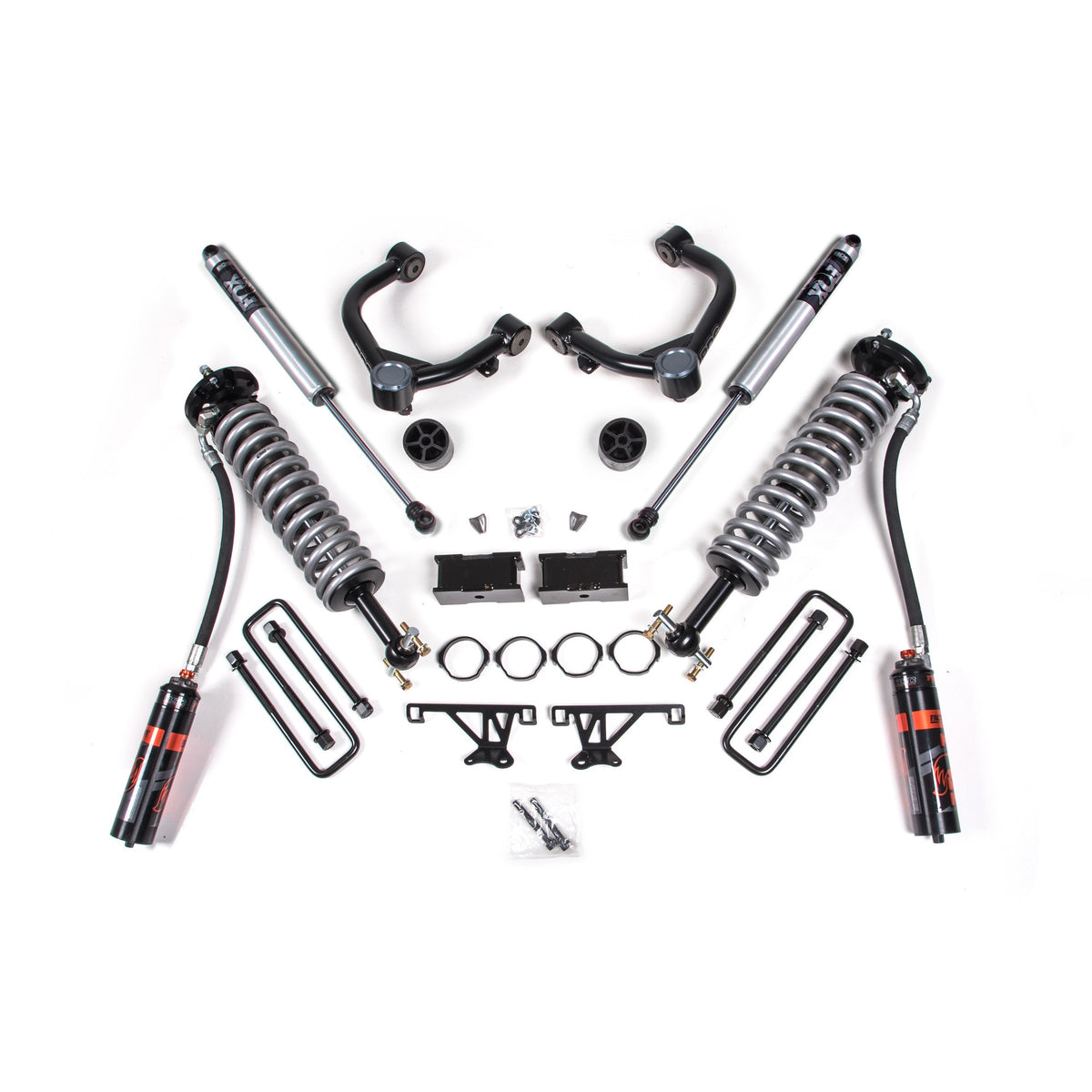

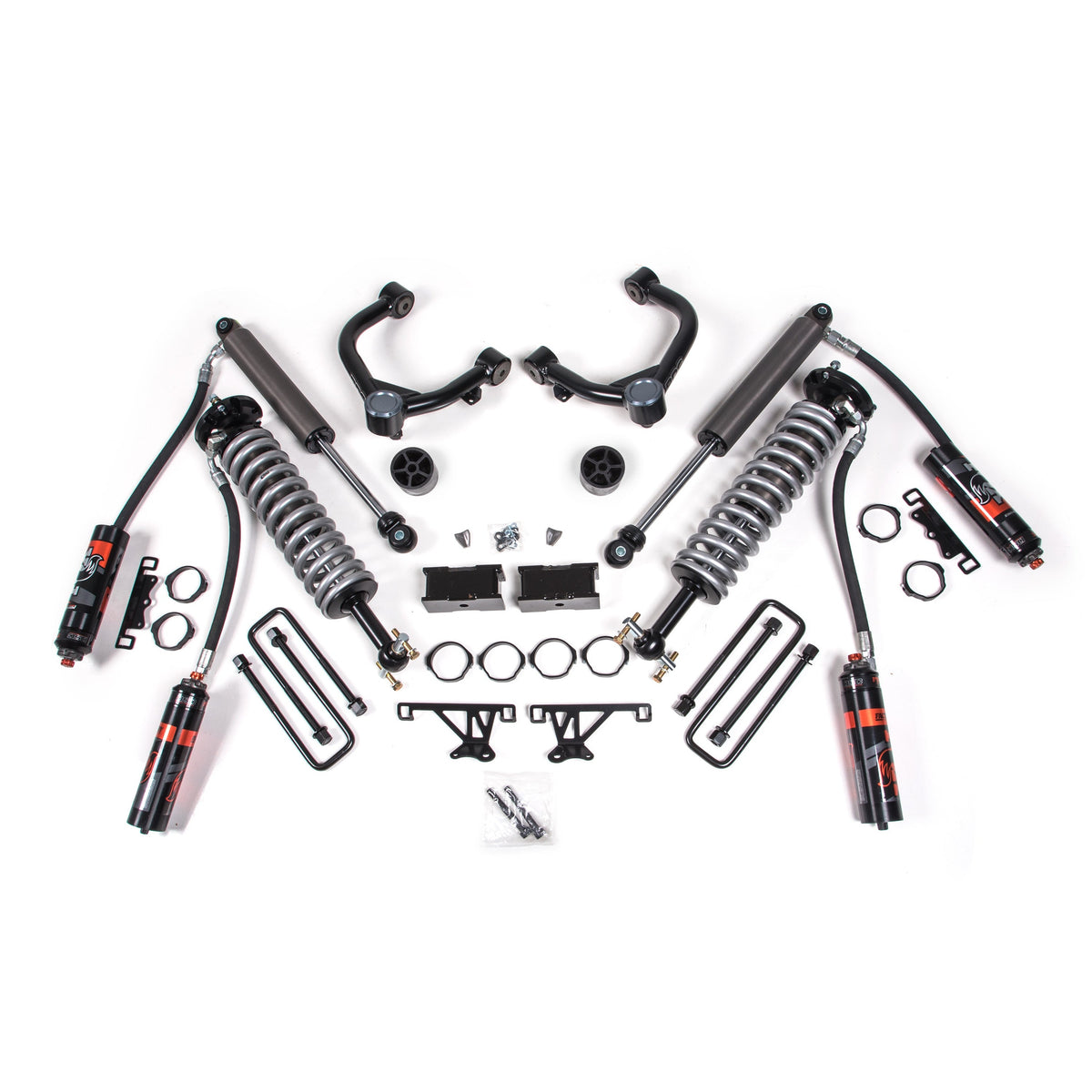

Up front the lift kit includes FOX 2.5 Performance Elite Series remote reservoir coil-over shocks and heavy duty tubular upper control arms for increased strength. In the rear this kit utilizes fabricated steel lift blocks, longer u-bolts and a complementary set of FOX 2.0 Performance shocks for the smoothest ride.
FOX Performance Elite
FOX 2.5 Performance Elite shocks offer next level performance for on-road comfort and off-road comfort capability. Tuned and ready to install right out of the box, these bolt-on 2.5-inch diameter shocks are built for abuse and packed with race-proven technology. They include a remote reservoir for additional fluid capacity to keep your shocks running cool so you can push the limits in the rough terrain. The DSC adjuster adds remarkable versatility and precise tuning with a simple twist of either two adjuster knobs, offering 10 separate low-speed and 12 high-speed compression levels, with a black anodized aluminum reservoir to increase cooling efficiency.
HD Upper Control Arms (UCAs)
Built for strength, performance and increased travel, these upper control arms are ready to bolt-in with most leveled/lifted trucks. They use 1.5" OD x .120-wall tubular construction with an indexed ball joint cup to correct the ball joint positioning allowing additional down travel and camber adjustment. At the frame mounting ends are durometer-specific rubber bushings for maintenance-free operation while at the other end a quality greaseable ball joints for smooth, quiet operation and superior durability. Arms are finished in a durable black powder coat with a billet aluminum dust cap ready for installation right out of the box.
FOX 2.0 Performance Series — BDS773FDSC
- Front Lift Method : Coil-Over
- Front Lift Height : 1.5"
- Rear Lift Method : Block
- Rear Lift Height : 1.5"
- Shocks Included : Yes
- Lift Height : 0-1.5"
FOX 2.5 Performance Elite — BDS774FDSC
- Front Lift Method : Coil-Over
- Front Lift Height : 1.5"
- Rear Lift Method : Block
- Rear Lift Height : 1.5"
- Shocks Included : Yes
- Lift Height : 0-1.5"
Estimated installation time: 4-5 hrs.
Installation difficulty: Moderate.
Special tools: Cut Off Wheel or Equiv., Ball Joint Separation Tool, Welding Equipment.
Fitment Table
FOX 2.0 Performance Series — BDS773FDSC / FOX 2.5 Performance Elite — BDS774FDSC
| Year | Make | Model | Trim |
|---|---|---|---|
| 2019–2024 | Chevrolet | Silverado 1500 | Custom Trail Boss |
| 2019–2024 | Chevrolet | Silverado 1500 | LT Trail Boss |
| 2019–2024 | GMC | Sierra 1500 | AT4 |
- Requires a maximum of 5.5" BS Wheel for tire clearance to the upper ball joint
- All aftermarket wheels should be test fit prior to mounting the tire to ensure proper clearance to the brake caliper. Some wheel profiles will not clear the brake caliper. These can be test fitted before the vehicle is lifted in a stock condition
- Mono-Leaf models require Qty 4 UBT4025 u-bolts for installation.
Warranty
BDS warranty coverage is for the original retail purchaser with proof of purchase. BDS hard parts and bushings have lifetime replacement coverage; finish and normal wear are excluded.
BDS NX2 and BDS/FOX Performance Series shocks have limited lifetime coverage excluding normal wear and oil seals. At BDS’s discretion, qualifying leaking seals less than two years old may be considered for repair or replacement.
FOX proprietary shocks and coilovers follow FOX warranty terms rather than the BDS warranty. Qualifying leaking seals less than one year old may be considered; other FOX concerns follow the FOX service process.
Properly maintained ball joints and tie-rod ends less than three years old may qualify, subject to the manufacturer’s conditions.
Remedies are repair or replacement at BDS’s discretion. Eligible warranty ground shipping is covered; removal, installation, expedited freight and consequential costs are excluded.
