BAJA DESIGNS F-150 A Pillar Kit Squadron Pro Spot 21-On F-150 W/ Upfitter Baja Designs I 447696UP

F-150 A Pillar Kit Squadron Pro Spot 21-On F-150 Baja Designs I With the Ford, F150 (21-On) A Pillar Kit being an easy bolt on application, this makes it simple to put our Squadron Pros on your vehicle. Whether this kit is for camp Lighting or cruising down a dark road, this kit will give all the output you need.
This kit includes powder coated A-Pillar brackets, stand-alone wiring harness, stainless-steel hardware as well as Squadron Driving Combo and Squadron Wide Cornering lenses to give you the option to fully customize the pattern of your A-Pillar LiLights.
strong Baja Designs Features: strong

Satisfactions Guaranteeand30 Day Money Back Guarantee
mited fetime Warranty Complete Purchase Protection
uService Replaceable Lenses And Optics
ClearView All The Light, RiLight Where You Need It.
MoistureBlock Waterproof, Rain Proof, Submersible
CopperDrive Only LED Driven At 100 percent
5000K DayliLight Less Driver Fatigue, Natural Color

strong Specifications (Per Light): strong

Lumens: 4,600 Utilizing 2 types of Cree LEDs
Wattage/Amps: 40W 2.90A
Dimensions: 3.07 inch x 2.77 inch x 3.07 inch
WeiLight: 12 ounces
LED fe Expectancy: 49,930 Hours
Front Lens: Hard Coated Polycarbonate
Housing: Hard Anodized and Powder Coated Cast Aluminum
Bezel: Billet Machined Aluminum
Hardware and Bracket Material: Stainless Steel
Exceeds MIL-STD810G (Mil-Spec Testing)
Built-In Overvoltage Protection
IP69K (Waterproof, Submersible to 9ft)
IK10 Compliant (Mechanical Impact Testing)

strong Application: strong
Ford F150 (21 - On)
strong Included: strong

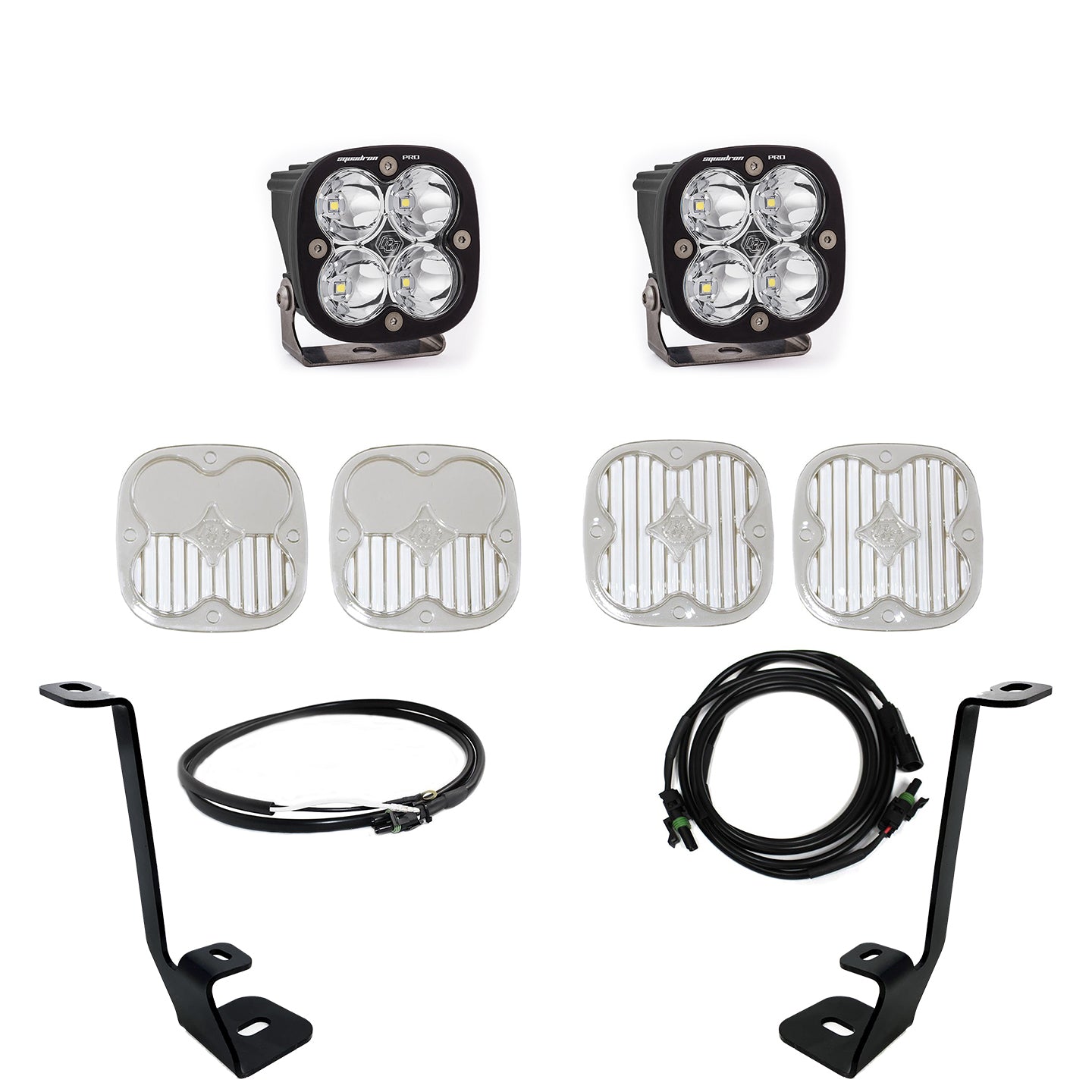

Squadron Pro, Spot Pair
x2 A-Pillar Brackets
x1 Upfitter Harness
x1 Parts Bag
x2 Driving Combo Lenses
x2 Wide Cornering Lenses

strong Patterns: strong
Spot: A longer and narrower 9 Degree beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam LiLights. (LiLighting Zone 4 and 5)
Driving/Combo: Maximum trail coverage in a single Light. The Driving/Combo pattern is equipped with both Driving (42 degree) and spot (8 degree) optics to provide you with a smooth blend of Light for both near field applications and distance (LiLighting Zone 3)
Wide Cornering: BD was the first to develop a pattern specifically for cornering, dust and/or fog conditions. The Wide Driving pattern offers a 42 Degree flattened horizontal beam for the ultimate in comfort Lighting. (LiLighting Zones 1 and 2)


FITMENT: 2021,2022,Ford,F-150,King Ranch|2021,2022,Ford,F-150,Lariat|2021,2022,Ford,F-150,Limited|2021,2022,Ford,F-150,Platinum|2021,2022,Ford,F-150,Police Responder|2021,2022,Ford,F-150,Raptor|2021,2022,Ford,F-150,SSV|2021,2021,Ford,F-150,Tremor|2021,2022,Ford,F-150,XL|2021,2022,Ford,F-150,XLT
